Place of Origin: | Made in China |
Brand Name: | Infinity Machine |
Certification: | CE, ISO |
Model Number: | Z-UV2 |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case with operation manual and video inside. |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Uv Wavelength: | UVA 315-400nm / UVB 280-315nm | Uv Lamp: | 8 Pcs |
---|---|---|---|
Weight: | 258kg | Outer Size: | W1600xD800xH1900mm |
Chamber Size: | W1140mm×D700mm×H800㎜ | Power Supply: | 220V/50HZ Or Specified By The Customer |
Capacity: | 250L | Humidity: | 85%~98%RH |
Temperature Range: | ± 0.5℃ | Salt Spray Subside: | 1.0~2.0ml/80cm2/h |
Test Room Size: | 900x600x450mm | Machine Size: | 1460x910x1280mm |
Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
Power Supply: | AC220V 15A Or Specified By User | Water Way: | Atered By Itself While Lack Of Water |
Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. | Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability |
Spray Material: | Transparent PVC | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 | Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. |
Highlight: | environmental testing equipment,benchtop environmental chamber |

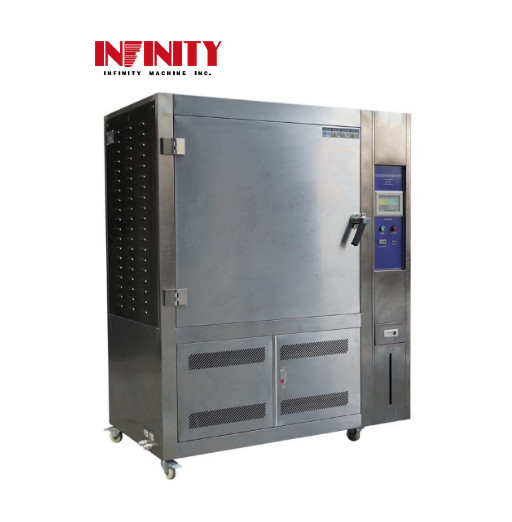

ASTM D4329 Environmental Test Chamber, UV Acccelerated weathering test Chamber
Model: Z-UV2
Product purpose:
The damage products caused by sunlight and moisture to material is hardly estimated, and UV accelerated weathering test machine can simulate the sunlight, rainwater and dew, by which use the machine to estimate the damage to the material. The test principle in the machine is putting the tested material exposing under the controlled simulating sunlight and the humid condition alternately, at the same time, the temperature can be controlled and set for a testing condition, which simulates the natural environment but can accelerate the process to shorten the testing time by strengthening the UV light, adding the humidity and rising the temperature. The equipment adopts UV Fluorescent lamp to simulate the sunlight, and use the condensation and spray to simulate the humid factor and the outdoor environmental condition.
The main functions introduction:
A. UV light:
The tester use the UV lamp to simulate the sunlight, actually that is to enforce the UV light to accelerate the aging of the product. The lighting source is used 8pcs of UV fluorescent lamp which rated power is 40W. the range of wavelength of UV lamp is 315-400nm, the lighting spectrum energy of the lamp is mainly focus at 340nm of the wavelength. Because the energy output of UV fluorescent lamp will decrease gradually, in order to avoid affecting the testing, in this machine, one new UV lamp will replace one old UV lamp every 1/4 UV lamp’s life in the eight UV lamps( the UV lamp life span:1600H)
B. Condensation:
UV tester simulate the outdoor moisture by a series of unique condensing principle. There is a water storage containers at the bottom of chamber, which is the one unit of condensing circle system, heating the water container to get the steam and the hot steam keep the chamber inside relative humidity at 100%, also keeping at a relatively high temperature. during the whole condensation process.. This cooling liquid is a very stable pure distilled water. The purified water increase the test reproduction rate, while at the same time avoid the issue of the water spots.
C. Raining:
Water spray can be a better simulation of final environmental conditions. Water spray is extremely useful to simulate quick changes in temperature and raining for estimating the damage to the goods during these environment. Due to the scouring of the raining, the coating of the goods will be washed away and lead to the material exposes to the sunlight directly, so this machine has the raining function to simulate the raining. The condensation, the UV light, and the raining function gather together can perfect simulate the outside weather and to get a perfect testing result for the material or goods.
Standards:
This UV accelerating weather tester is suitable for liable tests in lots of industries. It is according to below standard to make, GB/T14522-93,GB/T16585-1996 and GB/T16422.3-1997;
And complied with international testing standards as:ASTM D4329,D499,D4587,D5208,G154,G53;ISO 4892-3,ISO 11507;EN 534;EN 1062-4, BS 2782;JIS D0205;SAE J2020.
Specification:
Model | Z-UV2 |
Temperature range | RT+10℃~70℃ |
Humidity range | 90% RH ~98% RH |
Distance between lamps | 70±2mm |
Distance between specimen and lamp | 50±2mm |
Lamps type | UV-A, 40W / UV-B, 40W |
UV light wavelength | 315~400nm/280~315nm |
Chamber dimension (WxDxH) | W1140mm×D700mm×H800㎜ |
Lamps amount | 8 sets |
Nozzle | 12 pieces |
Light Size | W450xH260mm |
Outer size | W1600xD800xH1900mm |
Main unit weight | 258 Kg |
Power supply | AC220V 50Hz 3KW or specified by user |
