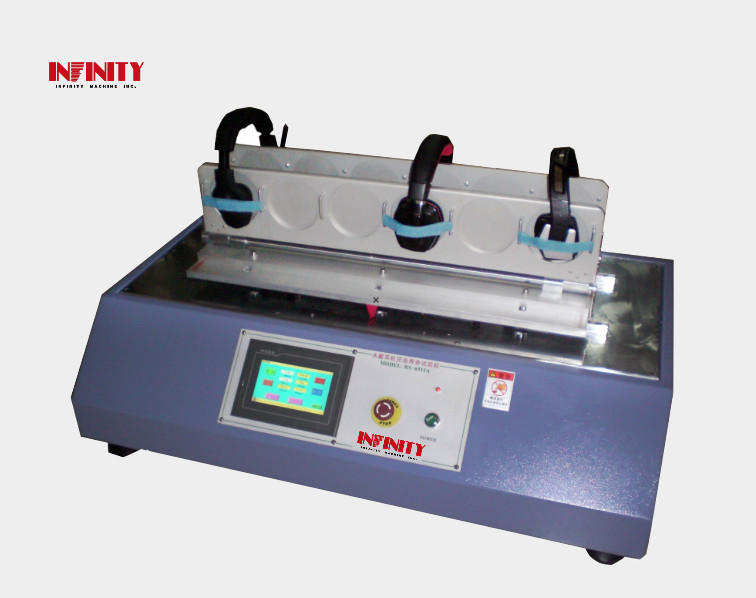

6 Stations Torsion Testing Machine for Headset Head Band Durability Test

6 Stations Torsion Testing Machine for Headset Head Band Durability Test

  • 6 Stations Torsion Testing Machine for Headset Head Band Durability Test
6 Stations Torsion Testing Machine for Headset Head Band Durability Test
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6911A
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Speed: 10~40 Times/min Test Stroke: 5~300mm
Counter: 1~999,999times ( Can Set ) Dimension: 900x900x600mm
Weight: 125 Kg Power Supply: AC220V 50Hz 3A Or Specified By User
High Light:

torsional testing machine

,

torque testing machine



6 Stations Torsion Testing Machine for Headset Head Band Durability Test



Model: RS-6911A



Application:



Apply to torsion lifetime test of headset, and the extension test method is: after headset is fixed with clamp on right and left, it shall be pulled reversely to certain distance, and then be pulled to the opposite direction at the same time and back to start position at last. The test process can be set. Headset can be taken down for inspecting performance of its head band through many times test.



Purpose:



1. Motion control shall be conducted with MGCS TFT 7 inches of True Color LCD touch screen and Mitsubishi programmable logic controller,

    expansion process, test speed, test times and duration time of the motion can be set.



2. Panasonic servo motor drive with synchronous belt drive, high speed and low noise, stable operation, stable, reliable and durable performance

    shall be used;



3. Extension of 6 sets of headsets may be tested synchronously, the extension process is accurate and adjustable, the headset shall be clamped

    with Velcro, and the angle of clamp used for fixing is adjustable.



Specification:



 Model  RS-6911A
 Test speed  10~40 times/min
 Test stroke  5~300mm ( can set )
 Counter  1~999,999times ( can set )
 Driving  AC Servo Motor
 Size of main unit  W900xD900xH600mm
 Weight  About 125 kg
 Power supply  AC220V 50Hz 3A or specified by user
