45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264

45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264

  • 45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264
45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8202
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Standards: BS-903, GB-1689, JIS-K6264, CNS-743 Grinding Wheel: Out ∮150mm, 38mm(W)
Sample Inclinative Range: 0°~35° (adjustable) Sample Shaft Speed: 85±5 Or 250±5rpm
Load: 45N (2Lbf,8Lbf 1 Pcs Each) Dimension: 600x450x400mm
Weight: 60kg Power: AC220V 3A Or Specified By User
Highlight:

martindale abrasion tester

,

rotary abrasion tester



45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264



Model: RS-8202



Purpose:

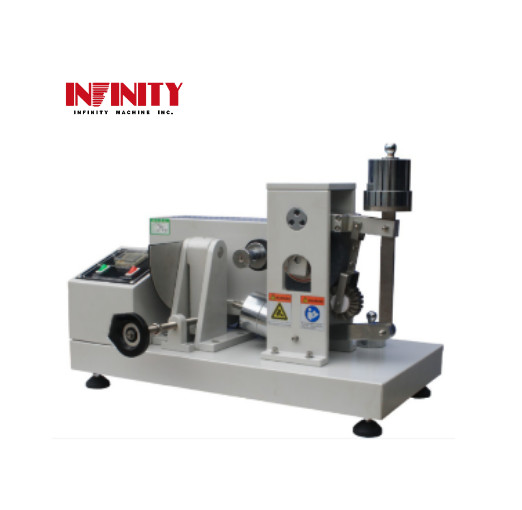

This tester is designed to use together with a special balance for testing the abrasive consumption for the rubber products such as sole, tire, belt of tank and etc.

45 N Load Abrasion Testing Machine Abrasive Consumption Test JIS-K6264 0

Specification:



 Model  RS-8202
 Standard  BS-903, GB-1689, JIS-K6264, CNS-743
 Grinding wheel  Out ∮150mm, 38mm(W)
 Sample inclinative range  0°~35° (adjustable)
 Sample shaft speed  85±5 or 250±5rpm
 Load  45N(2Lbf,8Lbf 1 pcs each)
 Counter  LCD, 0~999999 (can set)
 Dimension (WxDxH)  600x450x400mm
 Weight  60kg
 Power  AC220V 3A or specified by user
