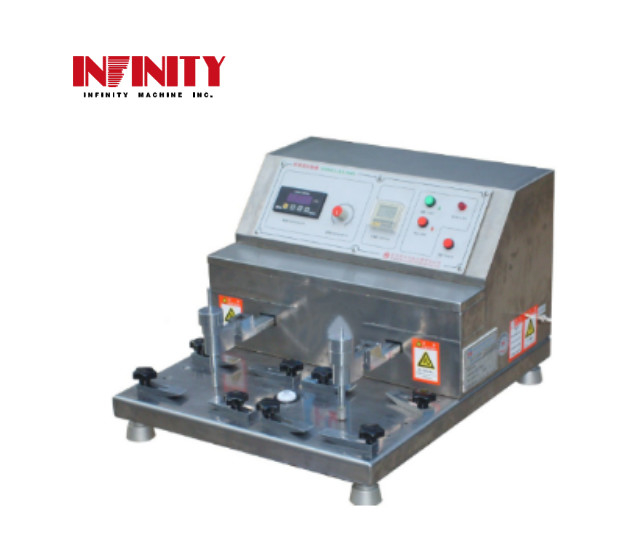

Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed

Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed

  • Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed
Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-5600L
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Amount: 2pcs Test Load: 80~1000g
Max Supporting Weight On Testing Table: 5kg Test Adjustable Range: 2~20mm Or 5~50mm
Test Speed: 10~60 Times/min Dimension: 500x590x400mm
Weight: 30kg Power Supply: AC220V 50Hz 5A Or Specified By User
Highlight:

din abrasion tester

,

rotary abrasion tester

Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed





Application:



Apply for abrasion testing on all kinds of non-conductive coating, painting on plastic goods & silk screen surface, like computer accessories, mobile phone (PDA), MP3, CD/VCD/DVD, telephone, electronic dictionary and etc. To use eraser, human sweat, wire ball, alcohol as medium to abrase on part surface for testing.

Stainless Steel Friction Tester In Abrasion Resistance Test Machine , High Speed 0

Feature:



Material for this machine is stainless steel which high erosion-resistance.

With 3 test grips: 45°pencil hardness test grip, eraser testing grip & alcohol testing grip for abrasion test.

Adjustable abrasion frequency, digital display for speed, abrasion counter is with 6 digits LCD indicator, can save testing data when accidental power off, self-stop when reaching to set time, testing cycle is 10~60times /minute which can be constantly adjusted.

Abrasion distance: 10mm ~50mm can be freely adjusted, the test rod can adjust up and down.



Standard component:



1. Test rod : 80g±2g, 2pcs

2. Alcohol abrasion rod: 80g±2g, 2pcs

3. Poise weight: 200g, 100g, 50, 25g, 20g, 10g, 500g±1g,

4. Gradienter: 1pcs

5. Hex hand driver: 1 pcs

6. Eraser: 1pcs (USA SAMFORD 75215#)

7. Sand paper: 2 pcs

8. Brush: 1 pcs



Optional component:



Wire ball

Mobile phone special grip

Standard pencil 6B~9H (Japan Mitsubishi)



Specification:



 Model  RS-5600L
 Test amount  2pcs
 Test load  80~1000g
 Max supporting weight on testing table  5kg
 Test adjustable range  2~20mm or 5~50mm
 Test speed  10~60 times/min
 Test cycle setting  1~999,999times (cycle)
 Dimension (WxDxH)  500x590x400mm
 Weight  30kg
 Power supply  AC220V 50Hz 5A or specified by user
