| Product Name: | Precision Friction Resistance Testing Machine | Model: | IZ1005 |
|---|---|---|---|
| Warranty: | 1 Year | Power: | Electronic |
| Highlight: | Precision Friction Resistance Testing Machine,Low Noise Friction Resistance Testing Machine,PLC Controlled Friction Resistance Testing Machine |
||

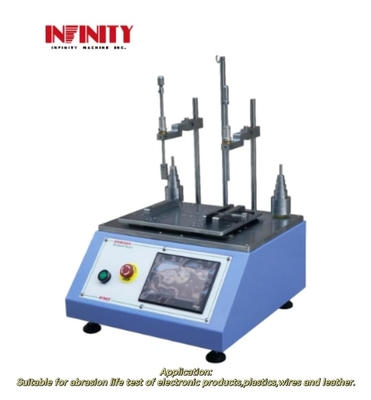

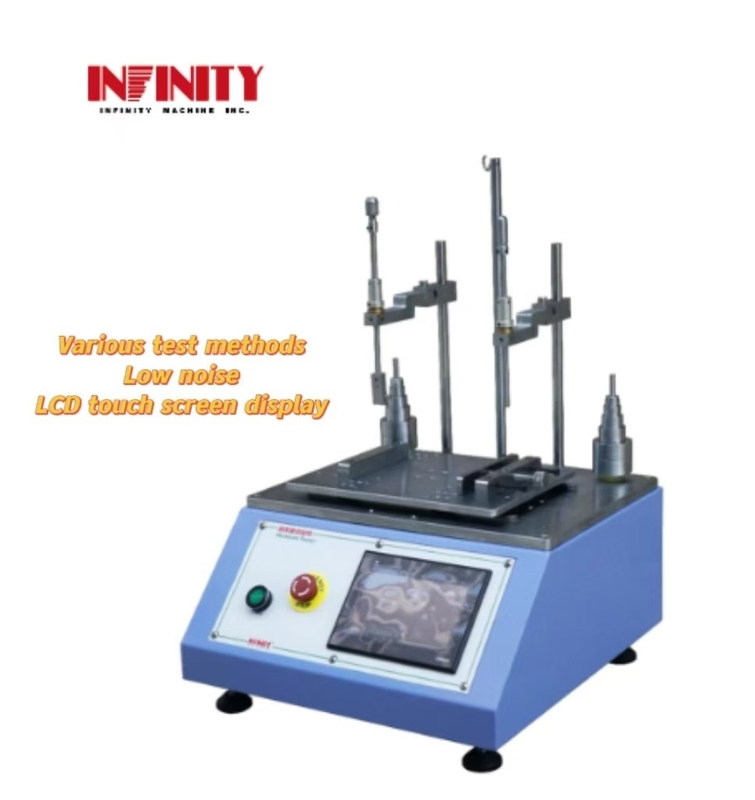

Precision Friction Resistance Testing Machine
Model Number:IZ1005
Application:
It is widely used in friction life testing of oil spray, silk screen printing and other printed matter on the surface of mobile phones, tablets, laptops, plastics, wires, electrical appliances, leather and other products.
Features:
1.Meets and configures friction media for: eraser, pencil, alcohol/cotton cloth and other testing methods.
2.Driven by Japanese Panasonic servo motor, it has the characteristics of smooth operation, low noise and durable use.
3.Using LCD touch screen + PLC for program control, test conditions can be input on the screen, and information such as test conditions and the number of tests has been displayed in real time.
Technical Parameters:
|
Project |
Specification |
|
Test load |
80~1000g |
|
Test table size |
290 x 290mm |
|
Maximum specimen size allowed |
260x200mm |
|
Standard weights |
10g,20g,50g,100g,200g with 2pcs for each weight, 500g with 4pcs |
|
Test medium |
Eraser (# 75215 Sanford, USA), Pencil (Mitsubishi 6B~9H, optional) Alcohol/cotton cloth |
|
Work plan |
2～50mm (Adjustable) |
|
Testing frequency |
1~999999 times |
|
Test speed |
10～60rpm (Adjustable) |
|
Machine size |
W490×D520×H680mm |
|
Machine weight |
45kg |
|
Power supply |
AC220V 50/60 Hz |
Parts List:
1.Test base rod: self-weight 80gf, including: 1pcs round eraser, 1pcs square eraser, 1pcs alcohol, 1pcs 45-degree pencil.
2.Test fixtures: round erasersquare eraseralcoholoblique 45 degree pencil test fixture 1pcs each.
3.Weights: 10, 20, 50, 100, 200 with 2pcs for each, 500g with 4pcs .
4.Test table fixed sample fixture 1pcs.
5.1 set of wine bottle and hanging rod/syringe/catheter/cotton cloth.
Software interface:
