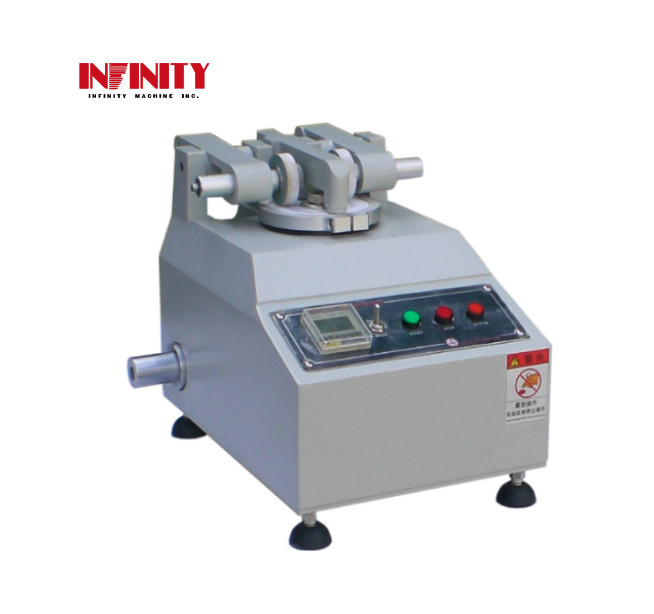

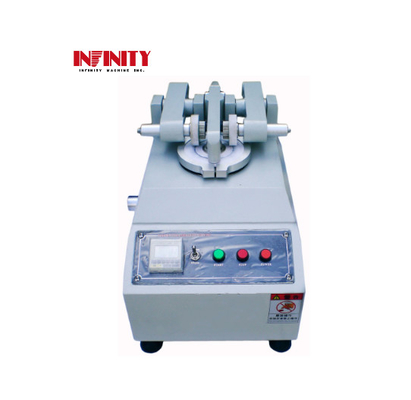

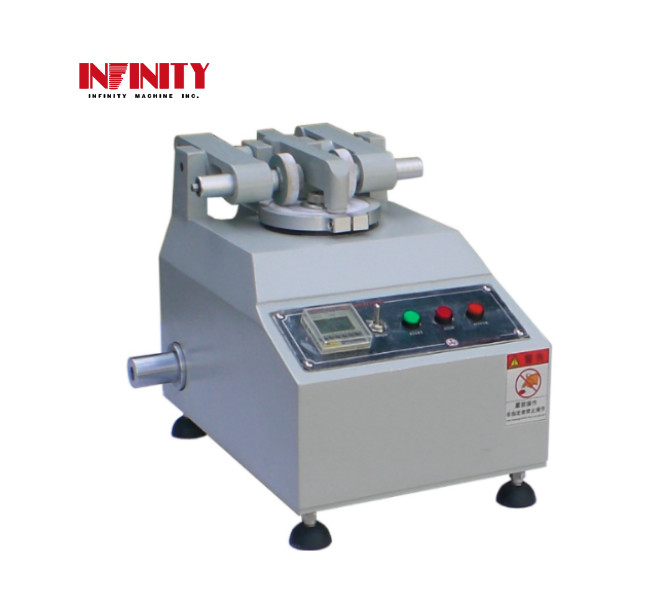

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A

  • Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A
  • Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A
Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8305
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Specimen: Outside Dia∮108mm, Inside Dia∮8mm Grinding Wheel: CS-10
Rotating Speed: 60 Or 70rpm Load: 250, 500,1000g
Dimension: 320x380x470mm Weight: 23kg
Power Supply: AC220V 3A Or Specified By User
Highlight:

din abrasion tester

,

rotary abrasion tester



Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A



Model: RS-8305



Purpose:



The tester applied for cloth, paper, pvc, paint, plywood, leather, tile, laminate floor, rubber etc. The testing method is to make the specimen abraded by a pair of grinding wheels with specified load. The weight of abrasion loss is the weight difference of the specimens between test before and after.

Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A 0

Specification:



 Model  RS-8305
 Standard.  DIN-53754, 53799, 53109, 52347, TAPPI-T476, ASTM-  D4157, D3884, ISO 5770-1
 Specimen  Outside dia∮108mm, inside dia∮8mm
 Grinding wheel  ∮2″x1/2″(w)
 Space between grinding wheels  63.5mm
 Grinding wheel and plate’s space  37~38mm
 Rotating speed  60 or 70rpm
 Load  250, 500,1000g
 Counter  LCD,0~999,999 (can set)
 Grinding wheel  CS-10

 Distance between specimen and

 dust collecting hole

  3mm
 Dimension (WxDxH)  320x380x470mm
 Weight  23 Kg
 Power supply  AC220V 3A or specified by user



Structure:



Cloth / Paper Taber Abrasion Machine ASTM Abrasion Test 220V 3A 1
