Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability

Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability

  • Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability
Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-5600Z
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Standard: GB/T7706 Abrasion Load: 20±0.2N
Abrasion Speed: 43cpm Abrasion Area: 155mmx50mm
Sample Size: 230mmx50mm Dimension: 300x300x400mm
Weight: 20kg Power Supply: AC220V 50Hz Or Specified By User
High Light:

martindale abrasion tester

,

rotary abrasion tester

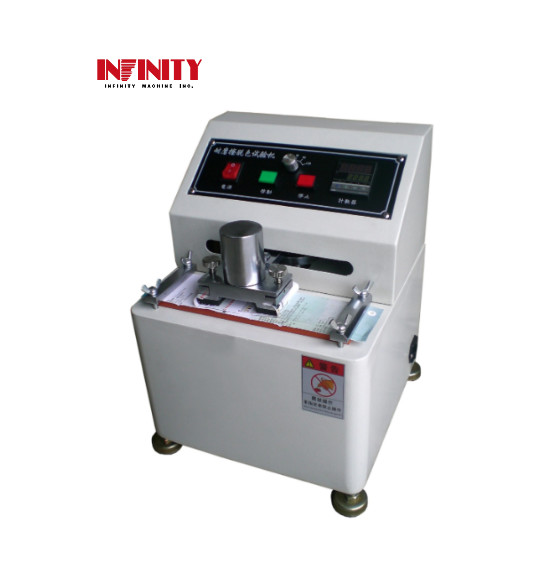

Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability



Model: RS-5600Z



Application:



Apply for printing parts do coating abrasion resistance test (Ink discoloration testing machine), can be used for all kind of coating & printing parts and analysis the data for abrasion capability, ink discoloration, PS version printing capability and coating thickness, etc.

Test theory: load the testing sample with specific load at specific speed do abrasion test, after test, check the density or coating thickness to check the ink or coating surface.

Printer Ink Test Discoloration Ink Rub Tester Computerized Big Capability 0

Standard:



JIS K5701, GB/T7706, ASTM D5264, TAPPI T830



Specification:



 Model  RS-5600Z
 Standard  GB/T7706  ASTM D5264 TAPPI T830
 Abrasion load  20±0.2N  8.9N(21b), 17.8N(41b)
 Abrasion speed  43cpm  21,43,85,106cpm
 Abrasion area(WxD)  155mmx50mm  100mmx50mm
 Sample size(WxD)  230mmx50mm  180mmx50mm
 Abrasion times  0~999,999times ( can set )
 Dimension (WxDxH)  300x300x400mm
 Weight  20kg
 Power  AC220V 50Hz or specified by user
