| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE， ISO |
| Model Number: | RS-6300M |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Torque: | 0.3~5N.m ± 0.5%F.S | Suspended Time: | 1~999sec. (can Set) |
|---|---|---|---|
| Test Speed: | 1~40 Times/min | Dimension: | 600x550x400mm |
| Weight: | 35kg | Power Supply: | AC220V 50Hz 5A Or Specified By User |
| Highlight: | torque testing machine,torsion spring tester |
||

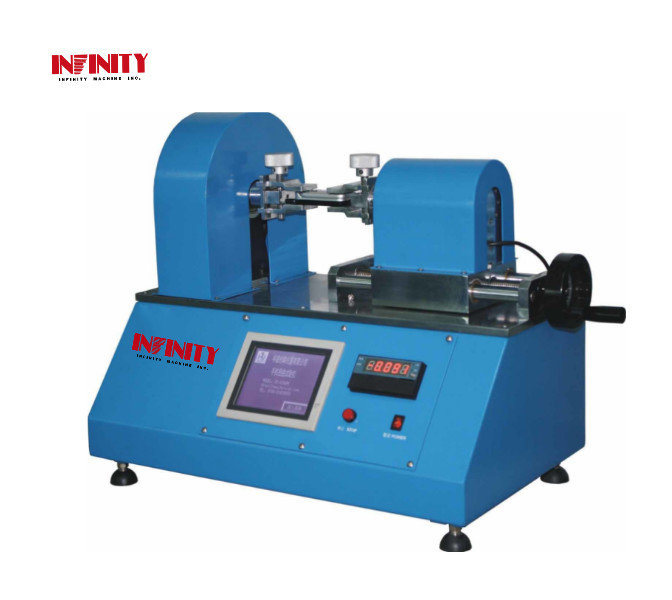

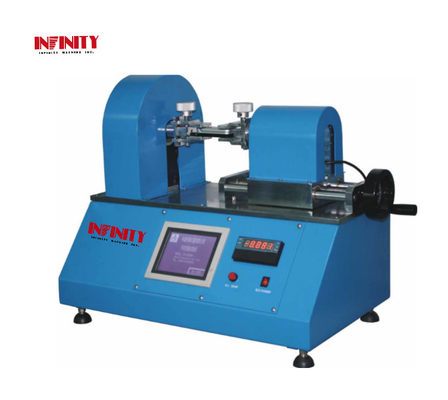

Mobile Phone Torque Testing Machine , Digital Torque Tester 0.3Nm -5Nm
Model: RS-6300M
Purpose:
This machine is used for mobile torsion test, to check the torque resistance of mobile cabinet and inner construction.
Feature:
Adopt Mitsubishi LCD+PLC program control, Chinese interface, easy operation and long life time.
Adopt servo motor driver, precise locating, stable torque output, low noise.
Adopt import torque loading element, high accuracy.
Special adjustable mobile jig, fix-up mobile quickly.
Specification:
| Model | RS-6300M |
| Torque | 0.3~5N.m ± 0.5%F.S |
| Suspended time | 1~999sec. (can set) |
| Test cycle | 1~999,999times (can set) |
| Test speed | 1~40 times/min |
| Dimension (WxDxH) | 600x550x400mm |
| Weight | 35kg |
| Power supply | AC220V 50Hz 5A or Specified by user |
