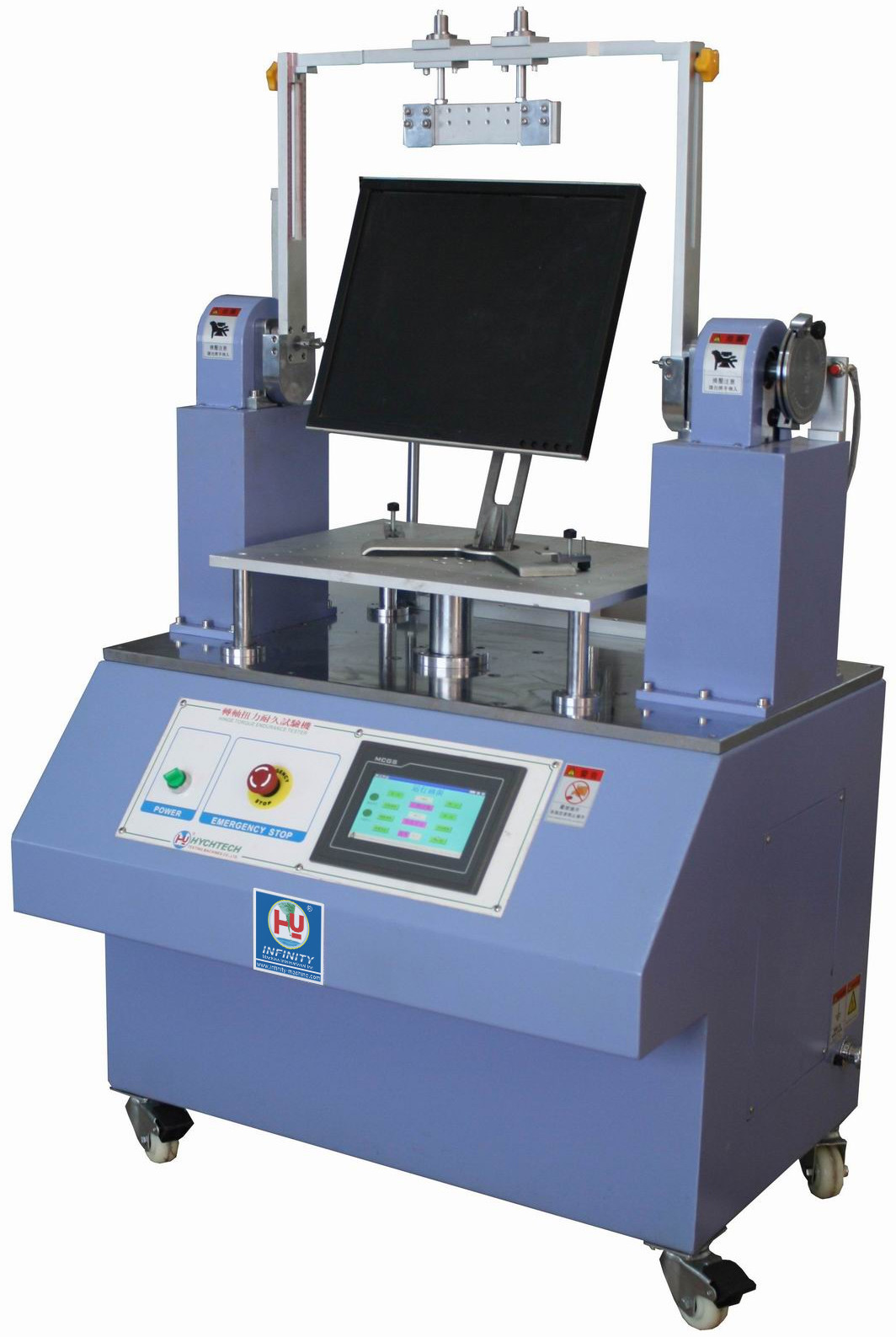

LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor

LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor

  • LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor
  • LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor
LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6700
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Range Of Test Angle: 0~180° Range Of Test Speed: 1~30 Times/min
Dwell Time Setting: 0.1~9.9 Sec Batch Dwell Time: 1~10 Minutes
Max Permissible Load: 100kgf.cm Dimension: W1130xD745xH1500mm
Weight: 200 Kg Power Supply: AC220V 50Hz 5A Or Specified By User
High Light:

torsional testing machine

,

torsion spring tester



LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor



Model: RS-6700



Purpose:



This system is applicable to test the torsion life of LCD MONITOR, all-in-one PC and TV HINGE, it can simulate a LCD MONITOR to swing back and forth repeatedly so as to test whether its spindle still has retention, whether it will damage the plastic body due to the increase of spindle resistance. In a word, this is a good system for HINGE and finished product manufactures to improve the quality of their products.



Typical applications:



Life tests of whole LCD machines / spindles

Torsion tests of the spindles on LCD/PDP TV

Life tests of the HINGE on all-in-one PC

A set of test fixtures can be made according to Lenovo B5 prototypes.



Characteristics:



All the test conditions shall be set by touch screen (angle setting, opening speed, closing speed, current angle, current speed, test times, times of the tests have been done, dwell time at opening, dwell time at closing, stay for N minutes after N tests)



Driven by Panasonic servo motor, the system can position accurately, also it is low-nose and durable. Test angle: 0~1800, Error:±10;



Adopt Japanese OMRON 7" LCD color touch screen and Mitsubishi PLC to control programs, durable in use.



You can choose to apply force from one side or two sides.



The table’s height (electric liftable table with height scale indicators) and horizontal position can be adjusted and fixed according to spindle’s position, equipped with dedicated axis centering gauges;



Applicable to 32″LCD tests at the most.



Specification:



 Model  RS-6700
 Range of test angle  0~180°
 Min display angle  1°
 Range of test speed  1~30 times/min
 Range of test times  1~999,999 times
 Dwell time setting  0.1~9.9 sec
 Batch dwell time  1~10 minutes
 Max permissible load  100kgf.cm
 Lifting stroke of working table  0~300mm Electric & Adjustable (with scale indication)
 Max specimen size  32” LCD
 Dimension (WxDxH)  W1130xD745xH1500mm
 Weight  About 200 kg
 Power supply  AC220V 50Hz or specified by user

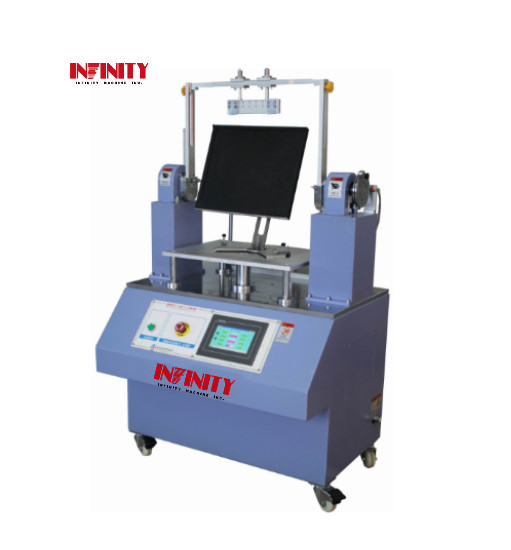

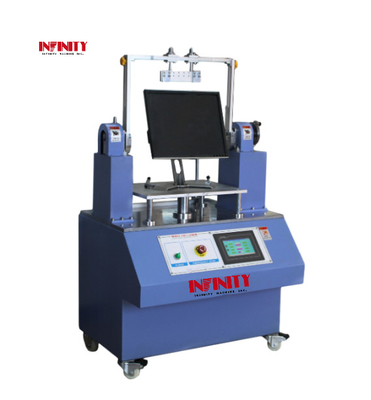

Picture:



LCD Monitor Durability Torsional Testing Machine Panasonic Servo Motor 0
