Computerized Torsion Spring Testing Machine 200 kgf.cm English Software

Computerized Torsion Spring Testing Machine 200 kgf.cm English Software

  • Computerized Torsion Spring Testing Machine 200 kgf.cm English Software
Computerized Torsion Spring Testing Machine 200 kgf.cm English Software
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-6700F
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Automatic Type Torsion Testing Machine For Computer Test English Software: 150kgf.cm,200kgf.cm Test Angle: 0~180°
Effective Width: 500mm Or 700mm ( Optional ) Test Speed: 60~7200°/min
Motor: AC Servo Motor Main Unit Dimension: 1150x745x1500mm
Main Unit Weigh: 175kg Power Supply: AC220V 5A Or Specified By User
High Light:

torsional testing machine

,

torsion spring tester



Computerized Torsion Spring Testing Machine 200 kgf.cm English Software



Model: RS-6700F



Purpose:



Adopt windows displayer in English program, easy operating, automatic memory (torque & angle curve, torque life time curve, test report), also can memorize all the test conditions.

This machine is with high precise load cell and driving by servo motor, can get the accurate torque report. It is the necessary tester for HINGE manufacturer in R&D and quality control.



Application:



LCD monitor hinge torque test

TV hinge torque test

Computer hinge torque test



Features:



With servo motor driver, high precise load cell, can guarantee the accurate torque test;

Test conditions can be set and stored by computer ( open angle, speed, times, pause time );

Recording every testing curves of torque & angle, and can automatic create the life-time damping curve and testing data report;

The report title can set freely, and the upper & lower limit can be set to judge the result is pass or fail.



Software:



Chinese & English view windows interface, easy setting and operating;

Can check at the same interface for torque & angle curve, life-time curve ( torque & times curve ), test data ( torque value, angle ).



Specification:



 Model  RS-6700F
 Capacity (optional)  150kgf.cm,200kgf.cm
 Unit (switchable)  Kgf.cm, N.m, Lb.in
 Load accuracy  ±0.5%
 Min. load display  0.01 kgf.cm
 Test angle  0~180°
 Min. angle display  0.001°
 Effective width  500mm or 700mm ( optional )
 Test speed  60~7200°/min
 Speed accuracy  ±0.5%
 Motor  AC servo motor
 Main unit dimension (WxDxH)  1150x745x1500mm
 Main unit weight  175kg
 Power supply  AC220V 5A or specified by user



Picture:

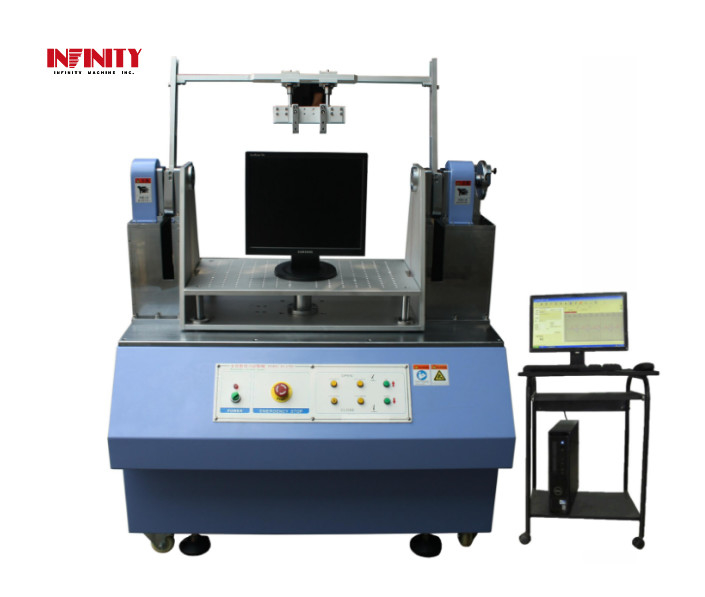

Computerized Torsion Spring Testing Machine 200 kgf.cm English Software 0
