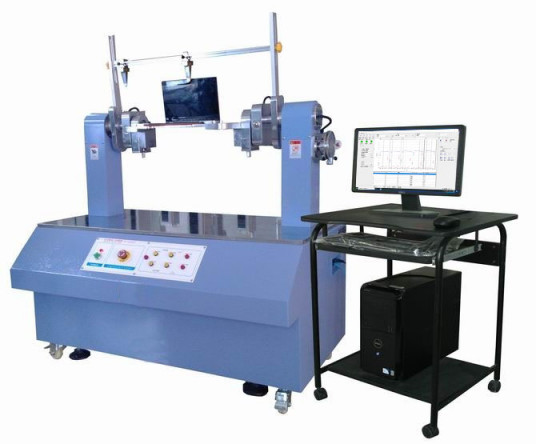

Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device

Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device

Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device
Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device
Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: T360
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Notebool hinge testing machine: Standard export wooden case with operation manual and video inside.
Delivery Time: Notebool hinge test machine: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Testing Space: Can Test The Laptop With10~13.3inch Screen Capacity: 100kgf.cm (10N.m)
Min.display Toruqe: 0.01kgf.cm Tester Size: W1130×D650×H1450mm
Weight: About 260kg Power: 1∮, AC110V, 5A
High Light:

torsional testing machine

,

torque testing machine

Laptop Hinge Wear and Tear Testing Equipment Notebook Hinge Wear and Tear Tester

Purpose:

Laptop hinge wear and tear test machine is suitable for laptop, ultrabook, monitor and the other electronic products to do the torque test, and the torsion damping life-span test for the hinge, it can measure the torque of the hinge for open and close at 360 degree and display the measurement graph.





Specialties:

1. The testing conditions are set by computer software ( the parameters include angle range, origin of stroke,testing speed, testing cycles, pause

time, stop time after certain cycles etc. )

2. Can print and record the testing value and graph ( graphs include torque~ angle, torque damping)

3. The title,sample name, test date, operator, and file No of the testing report are editable.

4. The testing report is Microsoft Access data editing forma, the testing data will be auto inputted, and can be recorded and printed. And can directly

print the testing graph in the testing interface.

5. The software and the report can be set the range of the testing parameters so that it will automatically just the PASS or FAIL ,and auto measure

and display the max torque, Min. torque and average torque and create the graph.

6. Automatically record the graphs for torque~ angle, torque damping graph+data testing data for every cycles.

7. The torque damping graph: to record every testing cycles and create a graph that can check the damping of the torque related to the testing

cycles.

8. To use servo motor from Panasonic to drive, with 2500r high pulse encoder to make sure the high precision, lower noise, high torque and long

life.

9. To use the torque transducer from Setech in Korea to measure the torque, the tolerance can be±0.5% FS.

10. To apply the force and equip with axis-center device for double sides that can guarantee the low vibration and high torque collection, and make sure the testing precision for hinge.



Specification:

Products Laptop Hinge Wear and Tear Test Machines
Testing space Can test the laptop with10~13.3inch screen or specified by user
Capacity 100kgf.cm (10N.m)
Min.display toruqe 0.01kgf.cm
Min. Display angle 0.010
Rotation angle range 5~3550 ( because laptop has the screen and the keyboard so real angle range for hinge will not reach 0~ 3600 )
Testing speed range

1~72000/min it can set the speed in constance or can set the speed

In three parts by the arc: 0~120°=1 sec, 120°~240°=2sec, 240°~360°=1sec,)

Alarm condition setting Hinge: Hinge torque loss, or the torque < setting torque, the tester will stop and give alarm on the software.
Tester size W1130×D650×H1450mm
Weight About 260kg
Power 1∮, AC220V, 5A



Application:

Hinge wear and tear test system is suitable for laptop, notebook, ultrabook, monitor, camera, TV or computer screen and other electronic products to do the torque test, and the torsion damping life-span test for the hinge, notebook hinge torque tester can measure the torque of the hinge for open and close at 360 degree and display the measurement graph.





Control software (Chinese and English):



Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 0



1. Operation language: Chinese, English switchable



2. Torque unit: kgf.cm,N.m,Lbf.in switchable



3. Testing method interface: Can freely call for ,edit, save, or every cycles will auto save as new file No. In the testing method interface to set the

rotation speed( clockwise or contercockwise), testing speed, testing cycles, pause time, and so on.



Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 1



4. Life span damping graph: coordinate, color, background color for damping graph are editable.



Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 2



Life span damping graph



Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 3



5. Testing report: the report head , font can be edited, can create to be PDF file, Excel.



Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 4

Notebook Hinge 360 Degree Torsion Testing Machine 10 N.m Capacity with Axis Center Device 5



The data report can create the max torque, min torque, and the average torque, and auto judge PASS or FAIL.
