| Place of Origin: | MADE IN CHINA |
| Brand Name: | INFINITY |
| Certification: | CE ISO |
| Model Number: | IE31 Series |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Clear sheet+sponge+wood carton |
| Delivery Time: | 20-30 days after order confirmed |
| Payment Terms: | TT PAYPAL Moneygram and so on |
| Supply Ability: | 200 sets / month |
| Standards:: | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperatur | Internal Box Size: WxHxD(mm): | 500x400x400(or Specify) |
|---|---|---|---|
| Cooling Medium: | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic | Condenser Mode: | Air-cooled(or Specify) |
| Cooling Rate (cold Storage Area): | Down From RT To-40℃ About 55min Is Required(or Specify) | Thermal Insulation Chamber: | ● Outer Wall Material: High Quality Carbon Steel Plate, The Surface For Electrostatic Color Spray Plastic Treatment. The Left Side Diameter Of The Box Is φ 50mm Hole ● Inner Wall Material: SUS304 # Fog Surface Stainless Steel Plate. ● Thermal Insulation Ma |
| Temperature Fluctuation: | ±1℃ | Source: | Source AC380V;50Hz;18KW(or Specify) |

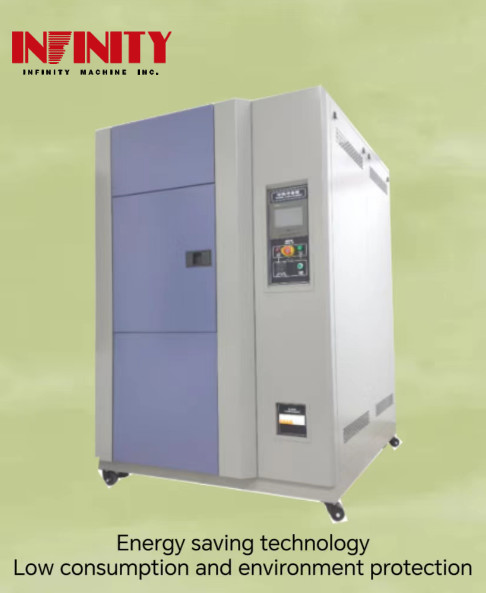

Programmable Hot Cold Shock Test Chamber with Fast Temperature Recovery Time Within 5 Mint
The Programmable Hot Cold Shock Test Chamber is an essential testing equipment for evaluating the quality of electrical, electronics, machinery industry, and other products, parts, and materials under high and low-temperature conditions. It is designed to simulate the temperature and humidity changes under the condition of cold and cold impact test, which is suitable for testing the corresponding climate mutation of electrical appliances, instruments, materials, coating, and coating.
The Programmable Hot Cold Shock Test Chamber is composed of the whole machine or parts, including electrical appliances, materials, and instruments. It allows users to test the quality of their products and parts by subjecting them to high and low-temperature, humidity, and temperature impact tests. The equipment is suitable for evaluating the quality of products, parts, and materials under different environmental conditions, including temperature changes.
The Programmable Hot Cold Shock Test Chamber has a temperature range of -40℃ ～ +150℃, which makes it ideal for testing products that operate in extremely high or low temperatures. It has a temperature fluctuation of ±1℃, which ensures that the temperature remains consistent throughout the testing process. The equipment can simulate the temperature and humidity changes under the condition of cold and cold impact test, so as to evaluate the quality of the test products.
The Programmable Hot Cold Shock Test Chamber meets several standards, including GB/T2423.1-2001 Low Temperature Test Method, GB/T2423.2-2001, GB/T2423.22-1989 Temperature Change Test, Military Standard GJB150.3-86, Military Standard GJB150.4-86, Military Standard GJB150.5-86, GJB150.5-86 Temperature Impact Test, GJB360.7-87 Temperature Shock Test, GJB367. 2-87 405 Temperature Shock Test, J / T10187-91Y73 Series Temperature Change Test Box-three Box Type, and meets the standard IEC68-2-14_ Test Method N_ Temperature Change.
The Programmable Hot Cold Shock Test Chamber is an ideal equipment for evaluating the quality of products, parts, and materials that require temperature and humidity changes. It helps users to identify and solve problems related to product quality, ensuring that their products can withstand different environmental conditions. Therefore, the Programmable Hot Cold Shock Test Chamber is a must-have for companies that want to ensure the quality of their products and maintain their reputation in the market.
| Product Name | Thermal Shock Test Chamber |
| Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Impact Test; GJB360.7-87 Temperature Shock Test; GJB367. 2-87 405 Temperature Shock Test; J / T10187-91Y73 Series Temperature Change Test Box-three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change. |

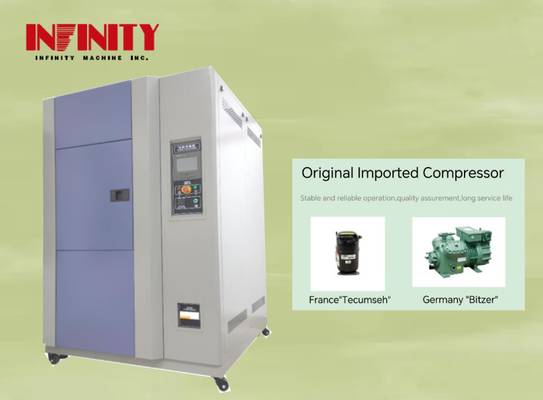

| Refrigeration Compressor | France Tecumseh Fully Closed Compressor(or Specify) |
| Heating Rate (Heat Storage Area) | Up From RT To + 150℃ About 35min Is Required(or Specify) |
| Cooling Rate (Cold Storage Area) | Down From RT To-40℃ About 55min Is Required(or Specify) |
| Cooling Medium | Non-fluorine Environmental Protection Refrigerant R404A R23 Comply With Environmental Protection Regulations, Safe And Non-toxic |
| Temperature Fluctuation | ±1℃ |
| Chamber Door | Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. |
| Temperature Recovery Time | Within 5 Mint |
| Equipment Overview | For Users To The Whole Machine (or Parts), Electrical Appliances, Instruments, Materials, Coating, Coating For The Corresponding Climate Mutation Test, Suitable For Electrical, Electronics, Machinery Industry And Other Products, Parts, Materials, Such As High And Low Temperature, Humidity Test, Simulate The Temperature And Humidity Changes Under The Condition Of Cold And Cold Impact Test, So As To Evaluate The Quality Of The Test Products. |
| Carton Size | WxHxD(mm): 1480×1450 ×1950(or Specify) |
| Product Name | Programmable Hot Cold Shock Test Chamber |
| Product Name | Programmable Hot Cold Shock Test Chamber |
The INFINITY IE31 Series Thermal Shock Test Chamber is a reliable and efficient piece of equipment used in a variety of industries for testing the ability of materials, components, and products to withstand extreme temperature changes. This Programmable Hot Cold Shock Test Chamber is designed and manufactured in China, and meets both CE and ISO certification standards, ensuring its quality and reliability.
With a minimum order quantity of one, the price of the Thermal Shock Test Chamber is negotiable and it is packaged in a clear sheet+sponge+wood carton for safe transport. Delivery time is estimated at 20-30 days after order confirmation, and payment terms include TT, PayPal, Moneygram, and other options.
The Thermal Shock Test Chamber uses non-fluorine environmental protection refrigerant R404A R23, which complies with environmental protection regulations and is safe and non-toxic. The cooling rate of the cold storage area is approximately 55 minutes to reach -40℃ (or specify). The refrigeration compressor is a fully closed compressor from France Tecumseh (or specify), ensuring reliable and efficient performance.
The IE31 Series Thermal Shock Test Chamber is suitable for a wide range of product application occasions and scenarios, including:
The temperature uniformity of the Thermal Shock Test Chamber is equal to or less than 2.0℃, ensuring accurate and reliable test results. With a supply ability of 200 sets per month, the INFINITY IE31 Series Thermal Shock Test Chamber is an excellent choice for any industry or application that requires reliable and efficient testing of products under extreme temperature conditions.
You can customize your order with a negotiable price and a minimum order quantity of 1. Packaging details include clear sheet+sponge+wood carton, with delivery time taking 20-30 days after order confirmation. We accept payment terms of TT, Paypal, Moneygram, and other options. Our supply ability is 200 sets per month. With an added door frame heating wire to prevent condensation at the door frame at low temperature, you can trust our Programmable Hot Cold Shock Test Chamber to provide the thermal shock testing solution you need.
Our Thermal Shock Test Chamber product comes with comprehensive technical support and services to ensure its proper functioning and longevity. Our team of experienced technicians is available to provide assistance with any technical issues or questions that may arise during the installation or operation of the chamber. We also offer regular maintenance and calibration services to keep the chamber in optimal condition and ensure accurate and reliable test results. Our technical support and services are designed to give our customers peace of mind and confidence in their investment in our Thermal Shock Test Chamber product.
Product Packaging:
Shipping:
Q: What is the brand name of the Thermal Shock Test Chamber?
A: The brand name of the Thermal Shock Test Chamber is INFINITY.
Q: What is the model number of the Thermal Shock Test Chamber?
A: The model number of the Thermal Shock Test Chamber is IE31 Series.
Q: Where is the Thermal Shock Test Chamber made?
A: The Thermal Shock Test Chamber is made in China.
Q: What certifications does the Thermal Shock Test Chamber have?
A: The Thermal Shock Test Chamber is CE and ISO certified.
Q: What is the minimum order quantity for the Thermal Shock Test Chamber?
A: The minimum order quantity for the Thermal Shock Test Chamber is 1.
Q: What is the price of the Thermal Shock Test Chamber?
A: The price of the Thermal Shock Test Chamber is negotiable.
Q: What are the packaging details for the Thermal Shock Test Chamber?
A: The packaging details for the Thermal Shock Test Chamber include clear sheet, sponge, and wood carton.
Q: What is the delivery time for the Thermal Shock Test Chamber?
A: The delivery time for the Thermal Shock Test Chamber is 20-30 days after order confirmed.
Q: What payment terms are accepted for the Thermal Shock Test Chamber?
A: The payment terms accepted for the Thermal Shock Test Chamber include TT, PayPal, Moneygram, and others.
Q: What is the supply ability of the Thermal Shock Test Chamber?
A: The supply ability of the Thermal Shock Test Chamber is 200 sets per month.
