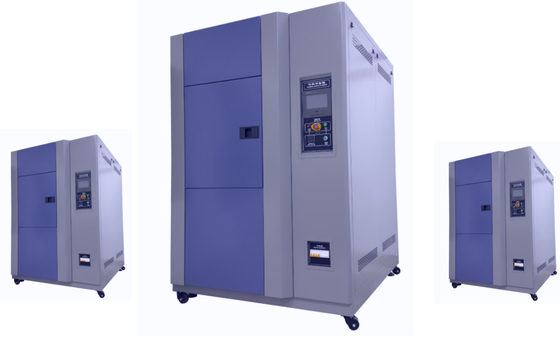

Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation

Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation

  • Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation
  • Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation
Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation
Product Details:
Place of Origin: China
Brand Name: Infinity
Certification: CE,ISO
Model Number: IE31A1
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Product Name: Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber Refrigeration Compressor: Half-compact Compressor In Bitzer, Germany
Cooling Rate (cold Storage Area): Down From RT To-55℃ About 75min Is Required Down From RT To-55℃ Approximately 75min Is Required Observation Window: A W 300 H 400mm Observation Window Is Installed On The Box Door. Multi-layer Insulating Electric Thermal Coated Glass Can Effectively Provide Heat Preservation And Prevent Condensation.
Box Door: Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature. Condenser Mode: Water-cooled
Temperature Fluctuation: ±1℃ Machine Features: GB/T2423.1-2001 Low-temperature Test Method; GB/T2423.2-2001; GB/T2423.22-1989 Temperature Change Test ; Military Standard GJB150.3-86; Military Standard GJB150.4-86; Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperatu

150L Box Door High Low Temperature Thermal Shock Test Chamber Heating Wire To Prevent Condensation IE31A1



Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation 0

Product Description:

Model IE31A180L IE31A1100L IE31A1150L IE31A1225L IE31A1408L
Temperature range -65℃ ~ +150℃
Temperature fluctuation ±1℃
Temperature uniformity ≦2.0℃
Temperature recovery time Within 5Min

Heating rate

(heat storage area)

Up from RT to + 150℃ About 50m in is required Up from RT to + 150℃ About 55m in is required

Cooling rate

(cold storage area)

Down from RT to-55℃ About 75min is required Down from RT to-55℃ Approximately 75min is required

Internal box size:

WxHxD(mm )

500x 400x400 500x 400x500 500x 600x500 500x750x600 600×850×800

Out box size:

WxHxD(mm )

1480×1450 ×1950 1480×1485×2050 1500×1750×2150 1600×1900×2250 1800x2000x2500

Thermal

insulation box

● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole.

● Inner wall material: SUS304 # fog surface stainless steel plate.

● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.

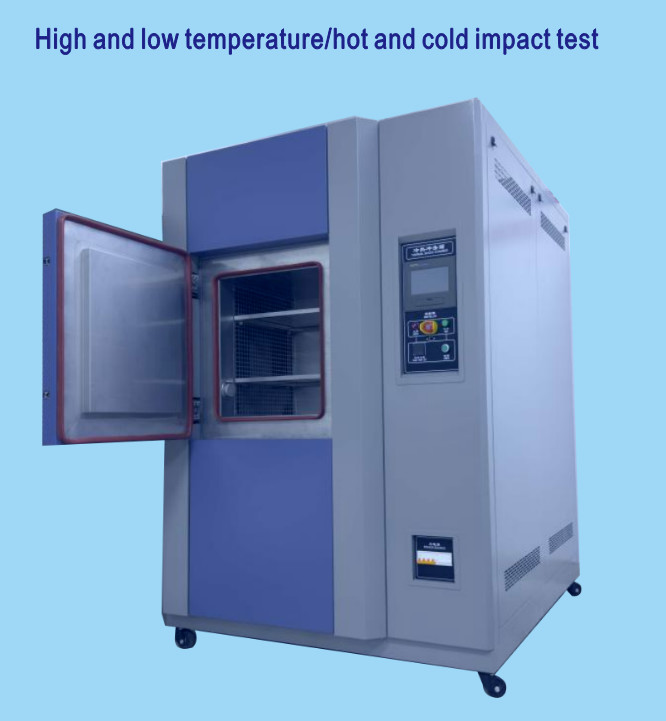

Box door Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
specimen holder Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.

Refrigeration

compressor

Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany Half-compact compressor in Bitzer, Germany
Cooling medium Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode

water-cooled



water-cooled



water-cooled



water-cooled



water-cooled



Safety protection device Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection.
Power AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW


The Climate Thermal Shock Test Chamber is a cutting-edge testing equipment designed for environmental testing, specifically for temperature testing and thermal shock testing. It is used in various industries such as electronics, automotive, aerospace, and more, to simulate extreme weather conditions and assess the performance and reliability of products.

With its high-quality carbon steel outer wall and SUS304 stainless steel inner wall, this chamber provides excellent thermal insulation and durability. The thermal insulation layer, made of hard polyurethane foam and glass fiber, ensures that the temperature inside the chamber remains stable during testing.

The heating rate of the chamber is remarkable, with the ability to reach temperatures up to +150℃ in just 50m. It also boasts a temperature uniformity of ≦2.0℃, providing accurate and reliable results for temperature impact testing and thermal shock testing.

The Climate Test Chamber is equipped with AC380V power and various heating capacities, ranging from 18KW to 25KW, making it suitable for a wide range of testing requirements. Its programmable features allow for customizable testing processes and easy operation.

In conclusion, the Environmental Climate Programmable Cold / Hot& High Low Temperature Impact Thermal Shock Test Chamber is a top-of-the-line testing equipment that guarantees precise and efficient results for all your temperature testing needs. Invest in this product and elevate your testing capabilities to the next level.

Keywords: climate test chamber, thermal shock chamber, environmental climatic cabinet, temperature impact testing, large test chamber
Thermal Shock Test Chamber Box Door High Low Temperature Shock Test Chamber Heating Wire To Prevent Condensation 1

Applications:

Climate Thermal Shock Test Chamber - Infinity IE31A1
Brand Name: Infinity
Model Number: IE31A1
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets / month
Power: AC380V;50Hz;18KW AC 380;V50Hz;18KW AC 380;V50Hz;22KW AC 380;V50Hz;22KW AC 380;V50Hz;25KW
Machine Features:
  • GB/T2423.1-2001 Low-temperature Test Method
  • GB/T2423.2-2001
  • GB/T2423.22-1989 Temperature Change Test
  • Military Standard GJB150.3-86
  • Military Standard GJB150.4-86
  • Military Standard GJB150.5-86
  • GJB150.5-86 Temperature Shock Test
  • GJB360.7-87 Temperature Shock Test
  • GJB367.2-87 405 Temperature Shock Test
  • J / T10187-91Y73 Series Temperature Change Test Box - three-box Type
  • Meet The Standard IEC68-2-14_ Test Method Temperature Change
Safety protection device:
  • Heater Air Defense Incineration Protection
  • Heater Over Current Protection
  • Circulation Fan Over Current Overload Protection
  • Compressor High Pressure Protection
  • Compressor Overheat Protection
  • Compressor Over Current Protection
  • Over Voltage Under Reverse Phase Protection
  • Circuit Breaker
  • Leakage Protection
Box Door:

Open The Door Alone, Add The Door Frame Heating Wire At The Door Frame To Prevent Condensation At The Door Frame At Low Temperature.

Condenser mode: Water-cooled
IPX1234 Rain Test Chamber

The Infinity IE31A1 Climate Thermal Shock Test Chamber is also available in IPX1234 Rain Test Chamber version, specifically designed for testing outdoor lamps and other outdoor electrical equipment. It simulates various levels of rain and humidity to ensure the durability and quality of the product in different weather conditions.

Rain Test Chamber for Outdoor Lamp

The Infinity IE31A1 Climate Thermal Shock Test Chamber is the perfect solution for testing the durability and quality of outdoor lamps. With its IPX1234 Rain Test Chamber version, it can simulate various levels of rain and humidity to ensure that the outdoor lamps can withstand different weather conditions without any damage or malfunction.

Custom Shower Testing Equipment

With its customizable features and wide range of certification, the Infinity IE31A1 Climate Test Chamber is also suitable for testing various shower equipment. It can simulate different levels of rain and humidity to ensure the safety and performance of the shower equipment in different environments.
