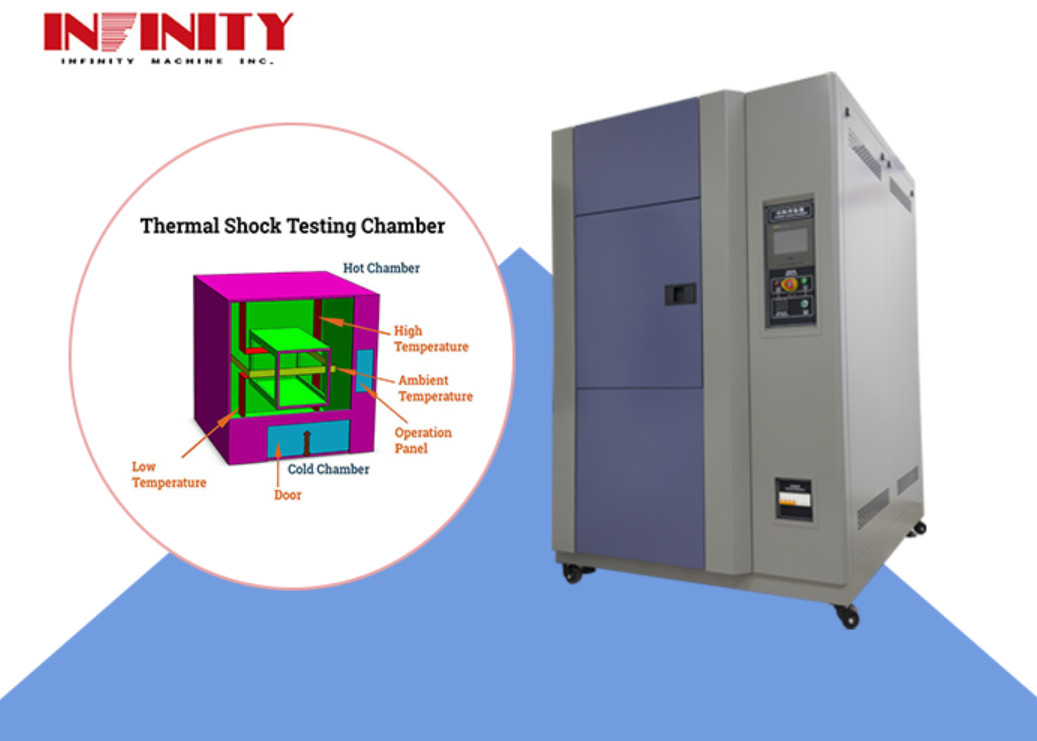

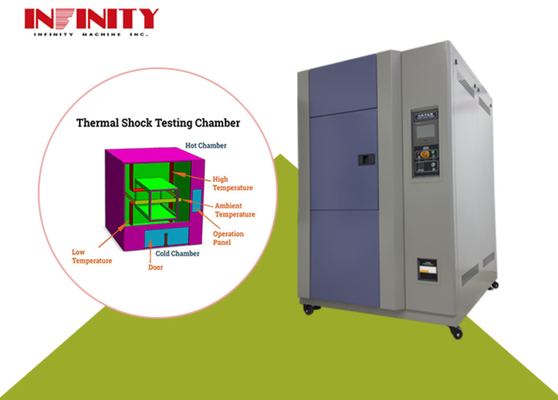

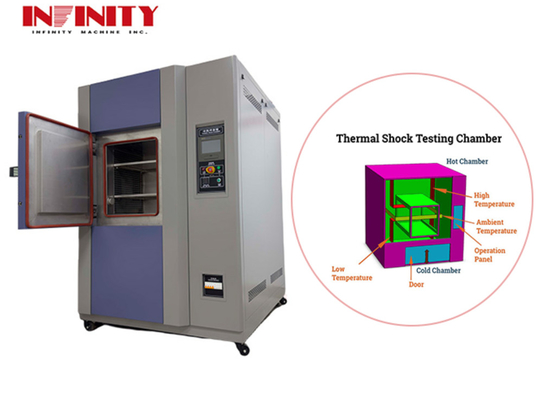

100L High Heating Rate Thermal Shock Test Chamber With Carbon Steel Plate Insulation Box

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	INFINITY
Certification:	CE ISO
Model Number:	IE31A Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	TT PAYPAL Moneygram and so on
Supply Ability:	200 sets / month

Contact Now

Temperature Fluctuation:

±1℃

Temperature Recovery Time:

Within 5Minc

Cooling Rate:

It Takes About 65 Minutes To Drop From RT To -55℃

Insulation Box:

Outer Wall Material: High-quality Carbon Steel Plate, Surface Treated With Electrostatic Color Spraying. The Left Side Of The Box Has A Diameter Of φ50mm.

Temperature Range:

-55℃ ～ +150℃

Heating Rate:

It Takes About 40 Minutes To Rise From RT To +150℃

Temperature Uniformity:

≦2.0℃

Product Name:

Programmable Thermal Shock Chamber

Capacity:

100L

High Light:

100L Thermal Shock Test Chamber

Insulation Thermal Shock Test Chamber

Product Overview

The Thermal Shock Test Chamber is a state-of-the-art testing equipment designed for simulating extreme temperature changes and evaluating the impact resistance and durability of materials. It is also known as a Programmable Temperature Impact Test Chamber, Programmable Rapid Temperature Change Test Chamber, and Programmable Cryogenic Thermal Shock Chamber.

The chamber has a temperature range of -55℃ to +150℃ and can reach a heating rate of 40 minutes from room temperature to +150℃. This makes it suitable for testing a wide range of materials and products, including electronic components, automotive parts, and aerospace materials.

Key Product Attributes

Heating Rate: It takes about 40 minutes to rise from room temperature to +150℃, allowing for quick and efficient testing of materials.
Temperature Range: The chamber has a temperature range of -55℃ to +150℃, providing a wide range of temperature conditions for testing various materials.
Temperature Fluctuation: The temperature fluctuation is kept within ±1℃, ensuring accurate and reliable test results.
Temperature Uniformity: The temperature uniformity is maintained at ≦2.0℃, providing consistent temperature conditions throughout the chamber for precise testing.
Insulation Box: The outer wall of the chamber is made of high-quality carbon steel plate, which is surface treated with electrostatic color spraying for durability and corrosion resistance. The left side of the box has a diameter of φ50mm, allowing for easy access for wiring and testing.

Features:

Technical Parameters:

Applications:

Packing and Shipping:

Our Thermal Shock Test Chamber is packaged with the utmost care to ensure the safe transportation and delivery of the product. The packaging materials used are of high quality and are designed to protect the chamber from any potential damage during shipping.

The chamber is first placed in a sturdy wooden crate and securely fastened to prevent any movement during transit. This crate is then placed in a larger corrugated cardboard box for additional protection.

For international shipments, the chamber is carefully inspected and packed in accordance with international shipping regulations to ensure safe delivery. We also provide additional packaging options such as moisture barrier bags and shock-absorbing materials upon request.

Once the packaging process is complete, the chamber is labeled with clear and visible shipping labels to ensure proper handling during transportation.

We work with trusted and reliable shipping partners to ensure timely and efficient delivery of our Thermal Shock Test Chamber. Customers also have the option to arrange for their own shipping and we will gladly assist with the necessary arrangements.

For more information on our packaging and shipping process, please contact our sales team.

Model	IE3180L	IE31100L	IE31150L		IE31225L	IE31408L
Temp Range	-40℃ ～ +150℃
temperature fluctuation	±1℃
temperature uniformity	≦2.0℃
temperature recovery time	Within 5Minc
Heating rate (heat storage area)	It takes about 35 minutes to rise from RT to +150℃		It takes about 40 minutes to rise from RT to +150℃
Cooling rate (cold storage area)	It takes about 55 minutes to drop from RT to -40℃		It takes about 60 minutes to drop from RT to -40℃
Inner box size: WxHxD(mm)	500x400x400	500x400x500	500x600x500		500x750x600	600×850×800
Outter box size: WxHxD(mm)	1480×1450 ×1950	1480×1485×2050	1500×1750×2150		1600×1900×2250	1800x2000x2500
Insulated box	● Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The diameter of the left side of the box is φ50mm hole ● Inner wall material: SUS304# matte stainless steel plate. ● Insulation material: rigid polyurethane foam insulation layer + fiberglass.
box door	For single-door doors, install a door frame heating wire at the door frame to prevent condensation on the door frame at low temperatures.
Observation window	Install a W 300×H 400mm observation window on the door. Multi-layer hollow electrothermal coated glass can effectively insulate heat and prevent condensation.
Sample shelf	Stainless steel sample rack with 2 layers, adjustable layer height, load capacity 30kg/layer.
Refrigeration Compressors	French Taikang fully enclosed compressor	French Taikang fully enclosed compressor	German Bitzer semi-closed compressor	German Bitzer semi-closed compressor		German Bitzer semi-closed compressor
refrigerant	Non-fluorine environmentally friendly refrigerant R404A R23 complies with environmental regulations, safe and non-toxic
Condenser method	Air-cooled	Air-cooled	Water-cooled	Water-cooled		Water-cooled
safety protection device	Heater anti-air fire protection; heater over-current protection; circulation fan over-current and overload protection; compressor high-voltage protection; compressor over-heat protection; compressor over-current protection; over-voltage reverse phase protection; line circuit breaker; leakage protection.
Power supply	AC380V;50Hz;18KW	AC380;V50Hz;18KW	AC380;V50Hz;22KW	AC380;V50Hz;22KW		AC380;V50Hz;25KW
