Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE31 Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Temperature Fluctuation: | ±1℃ | Heating Rate: | IE31 80L - 100L: It Takes About 35min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 40min For RT To Drop To -55℃ |
---|---|---|---|
Test Chamber Size: | 80L/150L/225L/408L | Power Supply: | IE31 80L -100L: AC380V;50Hz;18KW IE31 150L - 225L:AC380;V50Hz;22KW; IE31A 408L:AC380;V50Hz;25KW |
Temperature Range: | -40℃ ~ +150℃ | Outer Material Of The Chamber: | High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole. |
Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Refrigeration Compressor: | IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor |

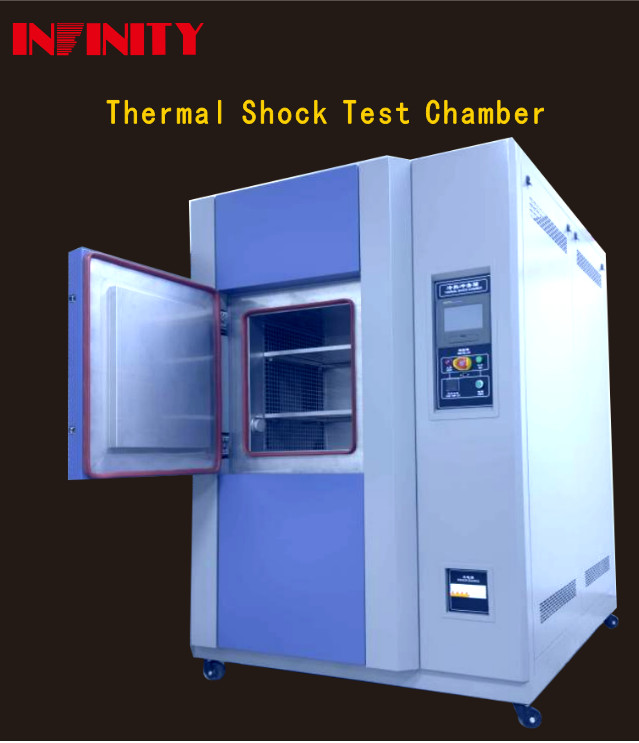

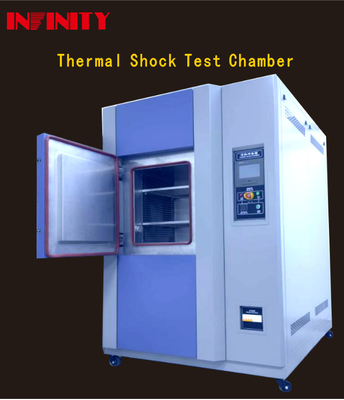

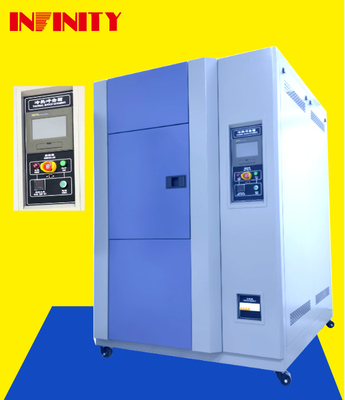

German Bitzer Semi-compact Compressor Programmable Thermal Shock Chamber IE31 80L-408L
This is a programmable high-low temperature shock test chamber designed for testing the quality of products under extreme temperature changes. It is suitable for electrical, electronic, mechanical industries and other products, parts, materials, etc.
The programmable high-low temperature shock test chamber is designed for simulating temperature and humidity changes under the condition of cold and thermal shock test. It can rapidly and accurately change the temperature of the test product, allowing for the evaluation of the quality of the product. This chamber is also known as a programmable cryogenic thermal shock chamber or a programmable thermal cycling shock test chamber.
The INFINITY IE31 Series Thermal Shock Test Chamber is a programmable hot cold shock test chamber that is designed to test the effects of sudden temperature changes on various products. It is suitable for a wide range of industries, including electronics, automotive, aerospace, and more.
The IE31 Series comes in two sizes, 80L and 100L, with a cooling rate of about 55 minutes for the temperature to drop from room temperature to -55℃. The IE31A Series, on the other hand, comes in larger sizes ranging from 150L to 408L and has a cooling rate of 60 minutes for the temperature to drop to -55℃. This makes it a highly efficient and reliable thermal shock testing chamber.
The chamber is made of high-quality carbon steel plate and has a surface that is treated with electrostatic color spray for added durability. The left side of the box features a φ50mm diameter hole for easy access and monitoring of the product during testing.
The chamber door is designed with a heating wire installed in the door frame to prevent condensation at low temperatures. This ensures that the test results are accurate and reliable.
The INFINITY IE31 Series has a temperature recovery time of less than 5 minutes, which means that the chamber can quickly return to the desired temperature after a thermal shock cycle. This makes it an efficient and time-saving testing chamber.
Overall, the INFINITY IE31 Series Thermal Shock Test Chamber is a highly versatile and reliable product that is suitable for a wide range of industries and applications. Its efficient cooling rate, durable construction, and programmable features make it a valuable tool for testing the effects of thermal shock on various products. With its compact design and advanced technology, it is the perfect choice for any company looking to ensure the quality and reliability of their products.
Model | IE 3180L | IE 31100L | IE 31150L | IE 31225L | IE 31408L | |||
Temperature Range | -40℃ ~ +150℃ | |||||||
Temperature Fluctuation | ±1℃ | |||||||
Temperature Uniformity | ≦2.0℃ | |||||||
Temperature Recovery Time | Within 5 min | |||||||
Heating rate (heat storage area) | Up from RT to + 150℃ About 35m in is required | Up from RT to + 150℃ About 40m in is required | ||||||
Cooling rate (cold storage area) | Down from RT to-40℃ Approximately 55min is required | Down from RT to-40℃ Approximately 60min is required | ||||||
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 | |||
Out chamber size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 | |||
Thermal insulation box |
● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
|||||||
Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | |||||||
Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | |||||||
Specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | |||||||
Refrigeration Compressor | France Tecumseh fully closed compressor | France Tecumseh fully closed compressor | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany | |||
Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | |||||||
Condenser mode | air-cooled | air-cooled | water-cooled | water-cooled | water-cooled | |||
Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | |||||||
Power source | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: INFINITY
Model Number: IE31 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Refrigeration compressor: IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor
Temperature uniformity: ≦2.0℃
Cooling rate: IE31 80L - 100L: It Takes About 55min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 60min For RT To Drop To -55℃
Test Chamber Size: 80L/150L/225L/408L
Insulation material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.
Our INFINITY Thermal Shock Test Chamber is designed to meet the most demanding testing requirements with its advanced features and customizable options. We offer a range of services to tailor our product to your specific needs, including:
With our customized services, you can be assured that our INFINITY Thermal Shock Test Chamber will meet your exact testing requirements and provide accurate and reliable results. Contact us today to discuss your customization needs.
Our Thermal Shock Test Chamber is carefully packaged and shipped to ensure safe arrival at your location.
We offer various shipping options to accommodate your specific needs:
Our team carefully tracks and monitors all shipments to ensure timely delivery and will provide you with a tracking number for your order.
For any special shipping requests or concerns, please contact us at info@thermalshocktestchamber.com and we will do our best to accommodate your needs.
A: The brand name of this product is INFINITY.
A: The model number of this product is IE31 Series.
A: This product is made in China.
A: This product is CE and ISO certified.
A: The minimum order quantity for this product is 1 set.
A: The price for this product is negotiable.
A: The packaging for this product includes clear sheet, sponge, and wood carton.
A: The delivery time for this product is 20-30 days after order confirmation.
A: The accepted payment terms for this product include TT, PayPal, Moneygram, and other methods.
A: The supply ability for this product is 200 sets per month.
