Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE31 Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Features: | Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Hi | Insulation Material: | Hard Polyurethane Foam Insulation Layer + Glass Fiber. |
---|---|---|---|
Refrigeration Compressor: | IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor | Safety Protection Device: | Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Prot |
Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Equipment Overview: | For Users Of The Product Machine (or Components), Electrical Appliances, Instruments, Materials, Coatings, Coatings, Etc., For The Corresponding Climate Change Test, Suitable For Electrical, Electronic, Mechanical Industries And Other Products, Parts, Mate |
Temperature Recovery Time: | ≤5 Minutes | Temperature Uniformity: | ≦2.0℃ |

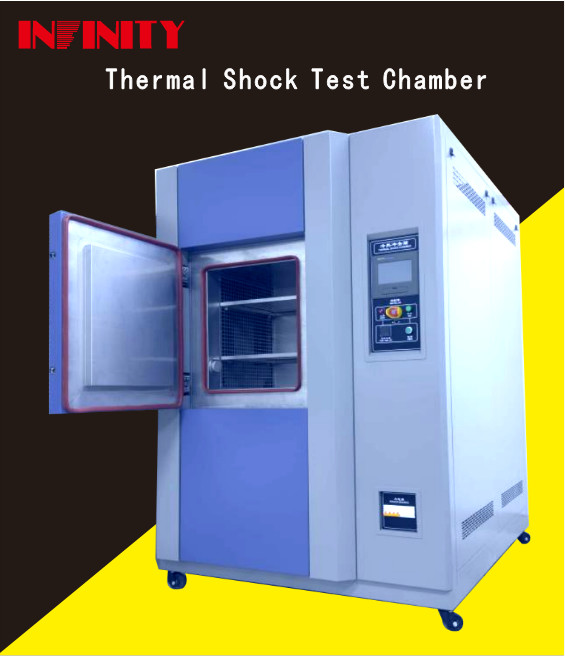

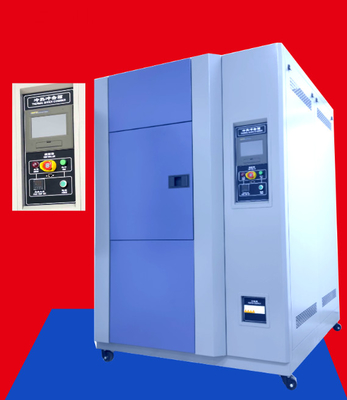

150L 408L Cooling Rate Programmable Thermal Cycling Shock Test Chamber IE31
The Thermal Shock Test Chamber is a state-of-the-art testing equipment designed for evaluating the resistance of materials to extreme temperature changes. It is widely used in various industries such as electronics, aerospace, automotive, and more.
The chamber's temperature uniformity is equal to or less than 2.0℃, ensuring accurate and reliable test results. It comes in four different sizes - 80L, 150L, 225L, and 408L, providing flexibility for different testing needs. The chamber is equipped with advanced features such as a programmable controller, touch screen display, and multi-language interface for easy operation and monitoring.
Temperature Uniformity | ≦2.0℃ |
---|---|
Test Chamber Size | 80L/150L/225L/408L |
Condenser System | IE31 80L-100L: Air-cooled IE31 150L-408L: Water-cooled |
Sample Holder | Stainless Steel Sample Rack 2 Layers Height Adjustable Bearing Weight 30kg/Layer |
Test Standards | GB/T2423.1-2001 Low Temperature Test Method GB / T2423.2 - 2001 GB/T2423.22-1989 Temperature Change Test National Military Standard GJB150.3-86 National Military Standard GJB150.4-86 National Military Standard GJB150.5-86 GJB150.5-86 Temperature Shock Test GJB360.7-87 Temperature Impact Test GJB367.2-87405 Temperature Impact Test J/T10187-91Y73 Series Temperature Change Test Box - Three Box Type Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change |
Note: The above-mentioned test standards are for reference only. Customized test standards are also available upon request.
Our Thermal Shock Test Chamber comes in three types to meet different testing requirements:
Choose the right type of chamber based on your testing requirements and ensure the quality and reliability of your products.
This thermal shock test chamber, also known as a programmable temperature impact test chamber, is designed and produced by INFINITY, a leading manufacturer of environmental test chambers in China. It is suitable for various industrial settings and can be used for testing the impact of extreme temperature changes on products.
This thermal shock testing chamber is suitable for a variety of industrial applications, including but not limited to:
The IE31 Series thermal shock test chamber is also suitable for various scenarios, such as research and development laboratories, quality control departments, production lines, and testing facilities. It can be used for various types of testing, including but not limited to:
Overall, the INFINITY IE31 Series Thermal Shock Testing Chamber is a reliable and versatile tool for testing the impact of extreme temperature changes on products, ensuring their quality and reliability. It is a must-have for industries that require high-quality and durable products. Contact us today to learn more about this product and how it can benefit your business.
Model | IE 3180L | IE 31100L | IE 31150L | IE 31225L | IE 31408L | |||
Temperature Range | -40℃ ~ +150℃ | |||||||
Temperature Fluctuation | ±1℃ | |||||||
Temperature Uniformity | ≦2.0℃ | |||||||
Temperature Recovery Time | Within 5 min | |||||||
Heating rate (heat storage area) | Up from RT to + 150℃ About 35m in is required | Up from RT to + 150℃ About 40m in is required | ||||||
Cooling rate (cold storage area) | Down from RT to-40℃ Approximately 55min is required | Down from RT to-40℃ Approximately 60min is required | ||||||
Internal box size: WxHxD(mm ) |
500x 400x400 | 500x 400x500 | 500x 600x500 | 500x750x600 | 600×850×800 | |||
Out chamber size: WxHxD(mm ) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 | |||
Thermal insulation box |
● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber. |
|||||||
Box door | Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature. | |||||||
Observation window | A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation. | |||||||
Specimen holder | Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer. | |||||||
Refrigeration Compressor | France Tecumseh fully closed compressor | France Tecumseh fully closed compressor | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany | Half-compact compressor in Bizel, Germany | |||
Cooling medium | Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic | |||||||
Condenser mode | air-cooled | air-cooled | water-cooled | water-cooled | water-cooled | |||
Safety protection device | Heater air defense incineration protection; heater over current protection; circulation fan over current overload protection; compressor high pressure protection;. Compressor overheat protection; compressor over current protection; over voltage under reverse phase protection; circuit breaker; leakage protection. | |||||||
Power source | AC380V;50Hz;18KW | AC 380;V50Hz;18KW | AC 380;V50Hz;22KW | AC 380;V50Hz;22KW | AC 380;V50Hz;25KW |
Brand Name: INFINITY
Model Number: IE31 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Test Chamber Size: 80L/150L/225L/408L
Chamber Volume Size: 80L To 408L
Product Name: Programmable Thermal Shock Test Chamber
Temperature Recovery Time: Within 5 Mins
Condenser System: IE31 80L-100L : Air-cooled; IE31 150L-408L: Water-cooled
Key Words: Programmable Cryogenic Thermal Shock Chamber, Programmable Thermal Shock Chamber, Programmable Thermal Shock Chamber Manufacturer
1. Standard export wooden box packaging.
2. All parts are carefully packed to prevent any damage during transportation.
3. We can also customize packaging according to customer's specific requirements.
4. Shipping method: By sea, by air or by express (DHL, UPS, FedEx, TNT, etc.).
5. Delivery time: 7-15 working days after receiving the payment.
6. Port of loading: Shanghai, China.
7. We will provide tracking number and shipping documents after shipment.
