For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.
Coolants:
Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
Test Chamber Size:
80L/150L/225L/408L
Cooling Rate:
IE31 80L - 100L: It Takes About 55min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 60min For RT To Drop To -55℃
Chamber Volume Size:
80L To 408L
Outer Material Of The Chamber:
High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.
Type:
Thermal Shock Testing Chamber
Temperature Fluctuation:
±1℃

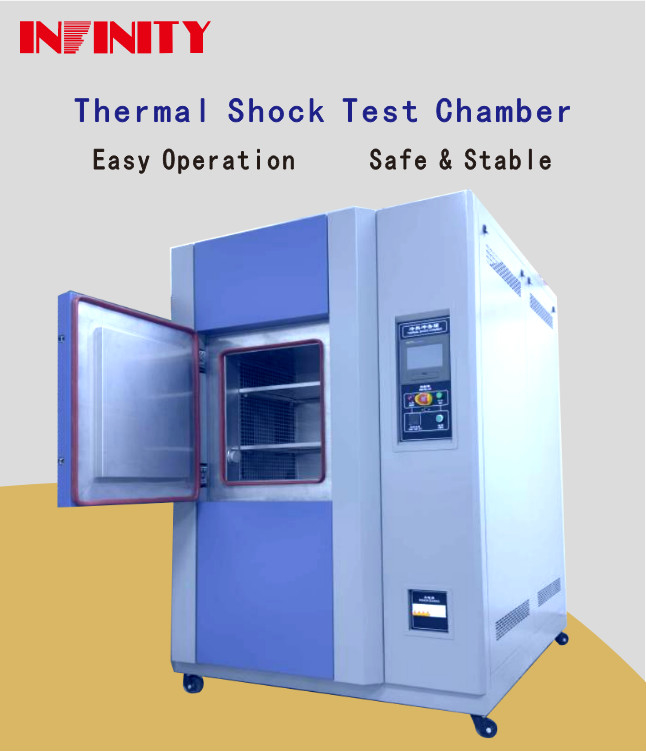

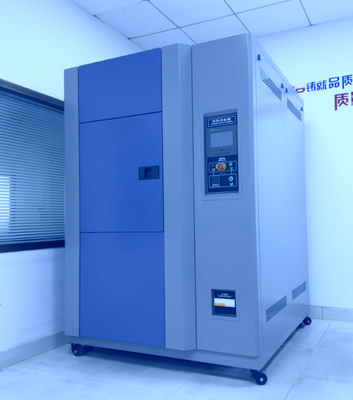

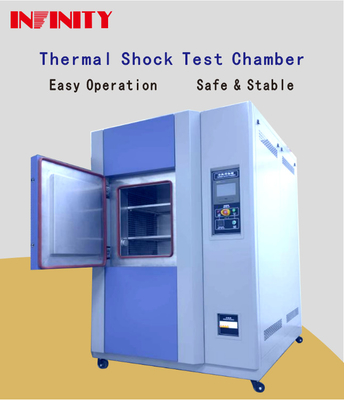

Programmable High-Low Temperature Shock Test Chamber Stainless Steel Sample Rack 2 Layers IE31
Product Description:
Thermal Shock Test Chamber Overview
The thermal shock test chamber is a type of testing equipment designed to evaluate the effects of extreme temperature changes on various materials and products. It is commonly used in industries such as electronics, automotive, aerospace, and medical equipment to ensure the reliability and durability of products under harsh environmental conditions.
Features
Type: The thermal shock test chamber is a programmable chamber that can simulate both high and low temperature impacts on products.
Inner Material: The inner material of the chamber is made of SUS304# stainless steel plate, providing excellent durability and resistance to corrosion.
Heating Rate: The chamber is equipped with a powerful heater that can quickly heat or cool the internal environment, providing a temperature range of -55℃ to +150℃. The heating rate varies depending on the size of the chamber, with the IE31 80L to 100L chamber taking approximately 35 minutes to reach -55℃, and the IE31A 150L to 408L chamber taking approximately 40 minutes to reach -55℃.
Programmable: The thermal shock test chamber is fully programmable, allowing users to set customized temperature and humidity profiles for their specific testing needs.
Inspection Window: The chamber features a W 300×H 400mm observation window on the door, made of multi-layer hollow electrothermal coated glass. This window not only allows for easy observation of the testing process but also effectively keeps heat inside and prevents condensation.
Safety Protection Device: The thermal shock test chamber is equipped with multiple safety protection devices to ensure the safety of both the equipment and the users. These include heater anti-burning protection, heater over current protection, circulating fan over current overload protection, compressor high-pressure protection, compressor overheat protection, compressor over current protection, overvoltage under inverse-phase protection, circuit breaker, and leakage protection.
Applications
The programmable humidity thermal shock test chamber, programmable temperature impact test chamber, and programmable cryogenic thermal shock chamber are widely used in industries such as electronics, automotive, aerospace, and medical equipment to test the performance and reliability of products under extreme environmental conditions. They are also commonly used in research and development laboratories to evaluate the effects of temperature changes on materials and products.
Conclusion
The thermal shock test chamber is an essential testing equipment for industries and laboratories that require reliable and durable products. With its programmable features, durable construction, and advanced safety protection devices, it provides an efficient and effective way to simulate extreme temperature changes and ensure the quality and performance of various products.
Applications:
INFINITY Thermal Shock Test Chamber
Product Description
The INFINITY Thermal Shock Test Chamber is a high-quality and reliable product, designed and manufactured by INFINITY in China. It is a programmable thermal cycling shock test chamber that can accurately simulate the extreme temperature changes that products may experience during transportation, storage, or use.
The chamber is part of the IE31 Series and is available in four different test chamber sizes: 80L, 150L, 225L, and 408L. It is equipped with a condenser system, either air-cooled or water-cooled, depending on the size of the test chamber. The heating rate for the chamber is fast and efficient, ensuring that the temperature can drop to -55℃ within 35-40 minutes, depending on the size of the test chamber.
Applications
The INFINITY Thermal Shock Test Chamber is suitable for a wide range of applications and scenarios, including:
Electronics industry: testing the reliability and durability of electronic components, such as circuit boards, semiconductors, and connectors, under extreme temperature changes.
Aerospace industry: testing the ability of space equipment and aircraft components to withstand extreme temperature changes during take-off, flight, and landing.
Automotive industry: testing the performance of automotive parts and components, such as batteries, engines, and sensors, under extreme temperature changes.
Pharmaceutical industry: testing the stability and shelf life of drugs and vaccines under extreme temperature changes during transportation and storage.
Environmental testing: testing the effects of extreme temperature changes on products and materials, such as plastics, rubber, and metals, to ensure their quality and reliability.
Research and development: testing the performance and durability of new products and materials under extreme temperature changes to improve their design and quality.
Certifications and Standards
The INFINITY Thermal Shock Test Chamber is CE and ISO certified, ensuring that it meets the highest quality and safety standards. It also complies with international standards such as IEC, ASTM, and JIS, making it a reliable and internationally recognized product.
Heating Rate:
IE31 80L - 100L: It Takes About 35min For RT To Drop To -55℃
IE31A 150L - 408L: It Takes About 40min For RT To Drop To -55℃
Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber
Packaging and Delivery
The INFINITY Thermal Shock Test Chamber is carefully packaged to ensure that it arrives in perfect condition. The packaging includes a clear sheet, sponge, and wood carton to protect the chamber during transportation. The delivery time is 20-30 days after the order is confirmed, and the packaging can be customized according to the customer's requirements.
Payment Terms
The INFINITY Thermal Shock Test Chamber can be purchased using various payment methods, such as TT, PAYPAL, Moneygram, and more. The price is negotiable, and the customer can choose the most convenient payment method for them.
Supply Ability
The INFINITY Thermal Shock Test Chamber has a supply ability of 200 sets per month, ensuring that it can meet the demands of customers around the world. The chamber is manufactured using high-quality materials and advanced technology, making it a durable and long-lasting product.
Outer material of the chamber: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.
Temperature uniformity: ≦2.0℃
Chamber Volume Size: 80L To 408L
Temperature Recovery Time: ≤5 Minutes
Customized Service for Programmable Thermal Shock Test Chamber
Our INFINITY IE31 Series Thermal Shock Test Chamber offers customized services to meet your specific needs. With our advanced technology and experienced team, we can provide you with a highly efficient and reliable testing solution.
Key Features:
Programmable Hot Cold Shock Test Chamber
Programmable Temperature Impact Test Chamber
Programmable Thermal Cycling Shock Test Chamber
Our customized services include:
Customized chamber volume size (80L to 408L) to fit your testing requirements
Customized sample holder made of stainless steel, 2 layers with height adjustment and bearing weight of 30kg/layer
Customized outer material of the chamber with high quality carbon steel plate and electrostatic color spray treatment for durability
Customized temperature uniformity of ≦2.0℃ for accurate and precise testing results
Customized temperature recovery time of ≤5 minutes for efficient testing process
Contact us now to discuss your customized needs for our INFINITY IE31 Series Thermal Shock Test Chamber. We are dedicated to providing you with high-quality and reliable testing solutions.
Packing and Shipping:
Packaging and Shipping
The thermal shock test chamber is carefully packaged and shipped to ensure safe delivery to our customers. The packaging process includes the following steps:
The test chamber is first cleaned and inspected to ensure all components are in proper working order.
It is then wrapped in protective foam and placed in a sturdy cardboard box.
The box is sealed with heavy-duty tape to prevent any damage during transit.
Finally, the box is labeled with the necessary shipping information and handed over to our trusted shipping partner for delivery.
We offer various shipping options to meet our customers' specific needs. We work with reputable shipping companies to ensure timely and secure delivery of our products. Our team also carefully tracks each shipment to provide updates to our customers.
Once the thermal shock test chamber arrives at its destination, it is easily unpacked and ready for use. We take pride in our packaging and shipping process to ensure our customers receive their product in perfect condition.
