National Military Standard GJB150.3-86 Programmable Thermal Shock Chamber IE31 80L-100L Air-cooled

Product Details:

Place of Origin:	MADE IN CHINA
Brand Name:	INFINITY
Certification:	CE ISO
Model Number:	IE31 Series

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	20-30 days after order confirmed
Payment Terms:	TT PAYPAL Moneygram and so on
Supply Ability:	200 sets / month

Contact Now

Detailed Product Description

Features:	Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Hi	Condenser System:	IE31 80L-100L : Air-cooled; IE31 150L-408L: Water-cooled
Temperature Uniformity:	≦2.0℃	Test Standards:	GB/T2423.1-2001 Low Temperature Test Method; GB / T2423.2 - 2001 GB/T2423.22-1989 Temperature Change Test ; National Military Standard GJB150.3-86; National Military Standard GJB150.4-86; National Military Standard GJB150.5-86; GJB150.5-86 Temperatu
Temperature Fluctuation:	±1℃	Temperature Recovery Time:	Within 5 Mins
Chamber Door:	For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.	Refrigeration Compressor:	IE31 80L France Tecumseh Fully Closed Compressor ; IE31A 100L-408L Use German Bitzer Semi-compact Compressor

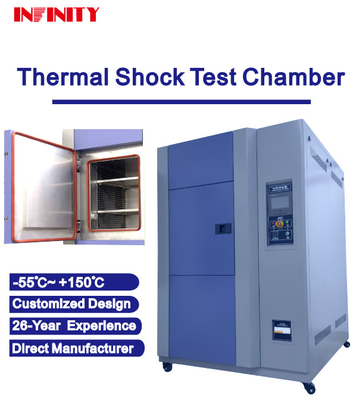

National Military Standard GJB150.3-86 Programmable Thermal Shock Chamber IE31 80L-100L Air-cooled

Product Description:

Programmable Thermal Shock Test Chamber

The Programmable Thermal Shock Test Chamber is a highly efficient and reliable testing equipment designed for conducting high-low temperature shock testing. It is also known as a Programmable Temperature Impact Test Chamber or Thermal Shock Chamber and is widely used in various industries for quality control and product development purposes.

Product Overview

The chamber is available in different sizes ranging from 80L to 408L, providing a wide range of options to meet the specific needs of different industries. It is designed to perform thermal cycling tests and can simulate extreme temperature conditions to evaluate the durability and reliability of products. The chamber is equipped with advanced features and offers precise and accurate temperature control, making it an ideal choice for conducting thermal shock tests.

Inspection Window

The chamber is equipped with a W 300×H 400mm observation window installed on the door of the box. The multi-layer hollow electrothermal coated glass used in the window effectively keeps the heat inside the chamber and prevents condensation. This allows for clear observation of the testing process without compromising the temperature stability inside the chamber.

Cooling Rate

The chamber has two cooling rate options - IE31 and IE31A. For chambers with a volume size of 80L to 100L, using IE31, it takes approximately 55 minutes for the room temperature to drop to -55℃. For chambers with a volume size of 150L to 408L, using IE31A, it takes about 60 minutes for the room temperature to drop to -55℃. This quick cooling rate ensures efficient and accurate testing results.

Temperature Range

The temperature range of the chamber is -40℃ to +150℃, allowing for a wide range of testing parameters. It can create extreme temperature conditions that products may encounter during their lifetime, providing valuable insights into their performance and durability. The precise temperature control and stability of the chamber make it suitable for various industries, including electronics, automotive, aerospace, and more.

Key Features

Programmable high-low temperature shock testing
Simulates extreme temperature conditions
Wide temperature range of -40℃ to +150℃
Quick cooling rate for efficient testing
Precise temperature control and stability
Multi-layer hollow electrothermal coated glass observation window
Available in sizes from 80L to 408L

Conclusion

The Programmable Thermal Shock Test Chamber is an essential testing equipment for industries that require high-quality and durable products. It provides a reliable and efficient method for conducting thermal shock testing and helps in improving product performance and reliability. With its advanced features and precise temperature control, it is a valuable asset for any industry looking to ensure the quality of their products.

Thermal Shock Test Procedure

The thermal shock test procedure involves subjecting the product to extreme temperature conditions by transferring it between hot and cold chambers. The product is placed in the hot chamber for a specific period and then transferred to the cold chamber for an equal amount of time. This cycle is repeated multiple times to simulate real-life conditions and evaluate the product's performance and durability.

Thermal Shock Testing Equipment

The Programmable Thermal Shock Test Chamber is the ideal thermal shock testing equipment for industries that require precise and accurate testing results. It is designed to meet international testing standards and is widely used for various applications. Its advanced features, quick cooling rate, and wide temperature range make it the go-to choice for conducting thermal shock testing.

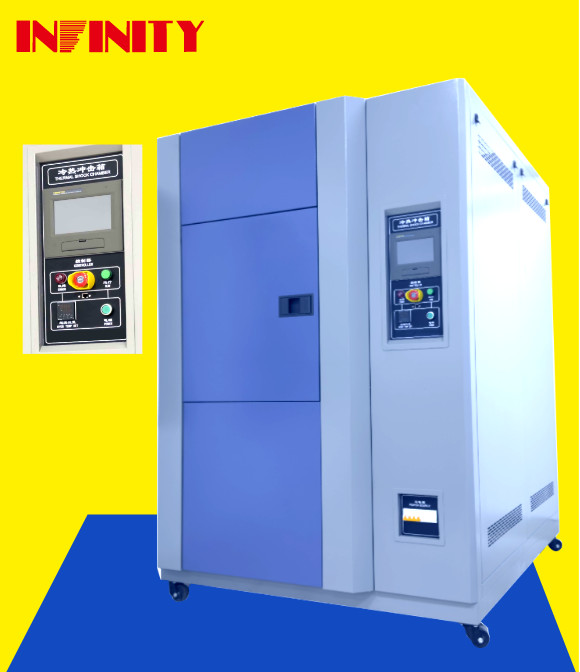

National Military Standard GJB150.3-86 Programmable Thermal Shock Chamber IE31 80L-100L Air-cooled 1

Model	IE 3180L		IE 31100L		IE 31150L		IE 31225L	IE 31408L
Temperature range	-40℃ ～ +150℃
Temperature fluctuation	±1℃
Temperature uniformity	≦2.0℃
Temperature recovery time	Within 5M in c
Heating rate (heat storage area)	Up from RT to + 150℃ About 35m in is required				Up from RT to + 150℃ About 40m in is required
Cooling rate (cold storage area)	Down from RT to-40℃ Approximately 55min is required				Down from RT to-40℃ Approximately 60min is required
Internal chamber size: WxHxD(mm )	500x 400x400		500x 400x500		500x 600x500		500x750x600	600×850×800
Out chamber size: WxHxD(mm )	1480×1450 ×1950		1480×1485×2050		1500×1750×2150		1600×1900×2250	1800x2000x2500
Thermal insulation box	● Outer wall material: high quality carbon steel plate, the surface for electrostatic color spray plastic treatment. The left side diameter of the box is φ 50mm hole ● Inner wall material: SUS304 # fog surface stainless steel plate. ● Thermal insulation material: hard polyurethane foam thermal insulation layer + glass fiber.
Chamber door	Open the door alone, add the door frame heating wire at the door frame to prevent condensation at the door frame at low temperature.
Observation window	A W 300 H 400mm observation window is installed on the box door. Multi-layer insulating electric thermal coated glass can effectively provide heat preservation and prevent condensation.
Specimen holder	Stainless steel sample frame 2 layers, adjustable height, bearing weight of 30kg / layer.
Refrigeration compressor	France taikang fully closed compressor	France taikang fully closed compressor			Half-compact compressor in Bizel, Germany	Half-compact compressor in Bizel, Germany		Half-compact compressor in Bizel, Germany
Cooling medium	Non-fluorine environmental protection refrigerant R404A R23 comply with environmental protection regulations, safe and non-toxic
Condenser mode	air-cooled	air-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater air defense incineration protection; heater over current protection; circulation fan overcurrent overload protection; compressor high pressure protection;. Compressor overheat protection; compressor overcurrent protection; overvoltage underreverse phase protection; circuit breaker; leakage protection.
Power	AC380V;50Hz;18KW			AC 380;V50Hz;18KW	AC 380;V50Hz;22KW	AC 380;V50Hz;22KW		AC 380;V50Hz;25KW

Applications:

Thermal Shock Test Chamber - INFINITY

Brand Name: INFINITY

Model Number: IE31 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Product Description:

The INFINITY IE31 Series Thermal Shock Test Chamber is a high-quality and reliable product designed for conducting rapid temperature change tests, alternating thermal shock tests, and thermal cycling shock tests. It is suitable for various industries such as electronics, automotive, aerospace, and more.

Application:

The IE31 Series is ideal for testing the resistance of materials and products to extreme temperature changes. It is commonly used in research and development, quality control, and production processes to ensure the reliability and durability of products.

Product Features:

Programmable Rapid Temperature Change Test Chamber
Programmable Alternating Thermal Shock Chamber
Programmable Thermal Cycling Shock Test Chamber
Heating rate: IE31 80L - 100L: 35 minutes from RT to -55℃; IE31A 150L - 408L: 40 minutes from RT to -55℃
Condenser System: IE31 80L-100L: Air-cooled; IE31 150L-408L: Water-cooled
Coolants: Non-fluorine Environmental Refrigerant R404A R23 that conforms to environmental regulations and is safe and non-toxic
Temperature Fluctuation: ±1℃
Outer Material of the Chamber: High-quality carbon steel plate with electrostatic color spray treatment. The left side of the box has a φ50mm diameter hole for easy access.

Scene and Scenario:

In a manufacturing company, the INFINITY IE31 Series is used in the quality control department to test the reliability of electronic components. The engineers place the components in the chamber and subject them to extreme temperature changes, simulating real-life conditions. They can easily adjust the temperature and cycle settings using the programmable control panel. After the test, they can analyze the results and make necessary improvements to the products.

Another scenario is in an automotive company, where the IE31 Series is used to test the durability of car parts. The engineers can simulate the temperature changes that the parts may experience during different seasons and driving conditions. This ensures that the parts can withstand extreme temperature changes without affecting their performance.

Overall, the INFINITY IE31 Series Thermal Shock Test Chamber is a crucial tool in ensuring the reliability and quality of products in various industries. Its advanced features, precise temperature control, and user-friendly design make it a top choice for many companies.

Customization:

Brand Name: INFINITY

Model Number: IE31 Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Heating rate: IE31 80L - 100L: It Takes About 35min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 40min For RT To Drop To -55℃

Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic

Safety protection device: Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Protection; Circuit Breaker; Leakage Protection.

Test Chamber Size: 80L/150L/225L/408L

Temperature recovery time: Within 5 Mins

Customized Services:

As a leading manufacturer of Programmable Humidity Thermal Shock Test Chamber and Programmable Rapid Temperature Change Test Chamber, INFINITY provides customizable solutions to meet your specific testing needs. Our experienced team will work closely with you to design and build a thermal shock test chamber that meets your unique requirements.

Whether you need a larger chamber size, faster heating rate, or specialized safety features, we can tailor our IE31 Series to fit your exact specifications. Our goal is to provide you with a high-quality and reliable customized thermal shock test chamber to ensure the success of your testing process.

Choose INFINITY as your trusted Programmable Rapid Temperature Change Test Chamber Manufacturer and let us help you take your testing to the next level.

Packing and Shipping:

Packaging and Shipping for Thermal Shock Test Chamber

Our Thermal Shock Test Chamber is carefully packaged and shipped to ensure safe and secure delivery to our customers.

Packaging:

The chamber is first wrapped in protective foam to prevent any damage during transportation.
It is then placed in a sturdy wooden crate to provide additional protection.
All necessary accessories and components are securely packed alongside the chamber.
The crate is then sealed and labeled with handling instructions and shipping information.

Shipping:

We offer various shipping options to accommodate our customers' needs and preferences:

For domestic orders, we ship via ground transportation to ensure cost-effective and timely delivery.
For international orders, we offer air freight and ocean freight options depending on the urgency and size of the order.
We work with trusted shipping carriers to ensure reliable and efficient delivery.
Customers can also arrange for their own shipping if preferred.

Upon shipment, customers will receive a tracking number to monitor the status of their order.

For any special packaging or shipping requests, please contact our customer service team for assistance.
