IE31A 150L 408L Programmable Rapid Temperature Change Test Chamber for GJB367.2-87405 Temperature Impact Test

IE31A 150L 408L Programmable Rapid Temperature Change Test Chamber for GJB367.2-87405 Temperature Impact Test

Product Description:

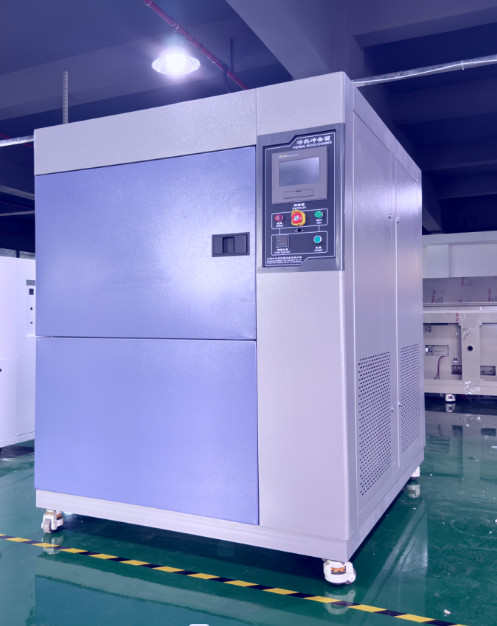

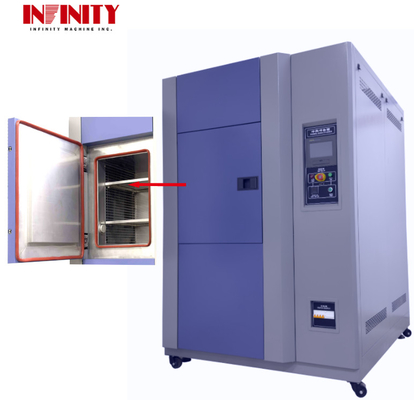

The Thermal Shock Test Chamber is a highly reliable and efficient testing equipment designed for conducting thermal shock tests on a variety of materials. It is ideal for use in industries such as electronics, automotive, aerospace, and defense.

The Thermal Shock Test Chamber is available in different models with varying power supply specifications to meet the testing needs of different industries. The IE31A 80L - 100L model operates on AC380V, 50Hz, and has a power output of 18KW. The IE31A 150L - 225L model also operates on AC380V, 50Hz, but has a higher power output of 22KW. The IE31A 408L model operates on AC380V, 50Hz, and has a power output of 25KW.

The Thermal Shock Test Chamber is equipped with various safety protection devices to ensure the safety of the operator and the equipment. These include Heater Anti-burning Protection, Heater Over Current Protection, Circulating Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Over Current Protection, Over Voltage Under Inverse-phase Protection, Circuit Breaker, and Leakage Protection.

The Thermal Shock Test Chamber has a fast cooling rate, ensuring quick and efficient testing. The IE31A 80L - 100L model takes about 65 minutes for the temperature to drop from room temperature to -55℃. The IE31A 150L - 408L model also takes about 65 minutes for the temperature to drop to -55℃.

The outer material of the chamber is made of high-quality carbon steel plate, which is sturdy and durable. The surface of the chamber is treated with electrostatic color spray for added protection against corrosion and wear. The left side of the box is equipped with a φ50mm diameter hole for easy installation and access to the equipment.

The Thermal Shock Test Chamber is available in various models to cater to different testing needs. The models include IE31A80L, IE31A100L, IE31A150L, IE31A225L, and IE31A408L.

• Programmable Thermal Cycling Shock Test Chamber
• Programmable Cryogenic Thermal Shock Chamber
• Programmable Hot Cold Shock Test Chamber
• Different power supply options
• Fast cooling rate
• Safety protection devices
• Durable outer material
• Multiple models available

Specifications:

Customization:

Brand Name: INFINITY

Model Number: IE31A Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and so on

Supply Ability: 200 sets / month

Chamber Door: For A Single Door, Install A Heating Wire In The Door Frame To Prevent Condensation In The Door Frame At Low Temperature.

Features: Programmable Cryogenic Thermal Shock Chamber, Programmable Alternating Thermal Shock Chamber, Programmable High-Low Temperature Shock Test Chamber, Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity, High Reliability: The Key Parts Are Imported Parts To Ensure Service Life And Reliability.

Insulation material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.

Temperature uniformity: ≦2.0℃

Temperature fluctuation: ±1℃

Packing and Shipping:

Our thermal shock test chamber is carefully packaged to ensure safe delivery to our customers. The product is first wrapped in protective material to prevent any damage during transportation. It is then placed in a sturdy cardboard box and securely sealed. The box is then labeled with the necessary shipping information.

We offer a variety of shipping options to meet the needs of our customers. Our standard shipping method is by air, but we also offer expedited shipping for urgent orders. For bulk orders, we can arrange for sea freight shipping to lower costs.

Once the product is shipped, we provide a tracking number so customers can monitor the status of their order. We take great care to ensure that our thermal shock test chamber arrives at its destination in perfect condition.
