Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE31A Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Features: | Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity. Hi | Chamber Volume Size: | 80L To 408L |
---|---|---|---|
Sample Holder: | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer. | Power Supply: | IE31A 80L -100L: AC380V;50Hz;18KW IE31A 150L - 225L:AC380;V50Hz;22KW; IE31A 408L:AC380;V50Hz;25KW |
Inspection Window: | The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation. | Outer Material Of The Chamber: | High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole. |
Temperature Deviation: | Less Than 2 Centigrade | Models:: | IE31A80L IE31A100L, IE31A150L, IE31A225L, IE31A408L |

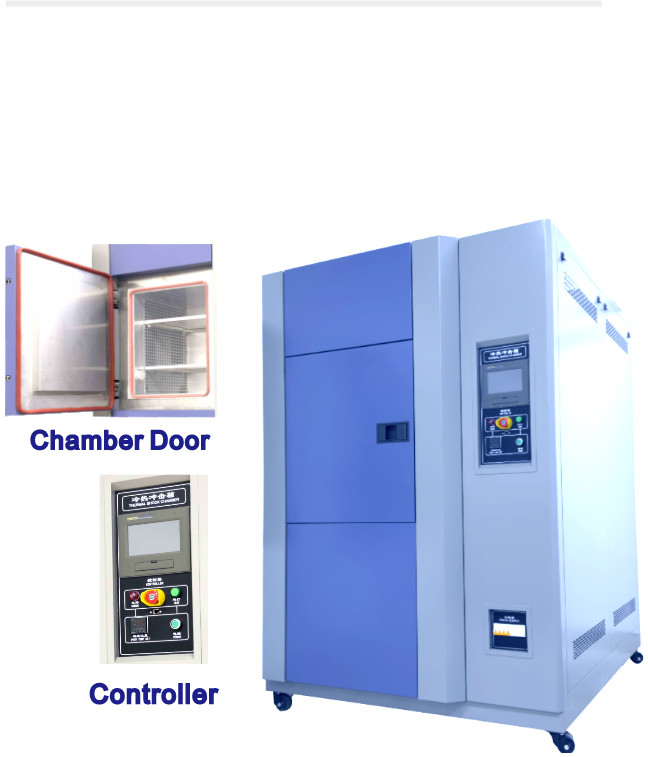

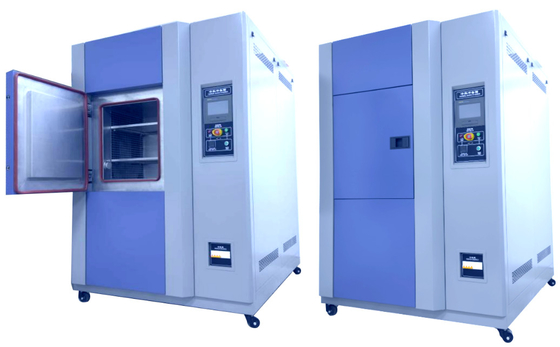

150L 408L Programmable Thermal Cycling Shock Test Chamber IE31A
The Thermal Shock Test Chamber is a high-quality testing equipment designed for evaluating the performance and reliability of products under extreme temperature changes. This chamber is suitable for a wide range of industries, including electrical, electronic, and mechanical industries, as well as for testing various products, components, materials, and coatings.
The Thermal Shock Test Chamber is designed for conducting temperature impact and thermal shock tests on products, components, electrical appliances, instruments, materials, coatings, etc. It is a crucial tool for evaluating the quality and reliability of these products under extreme temperature conditions.
The chamber is programmable, allowing users to set specific temperature and humidity parameters for their testing needs. It can simulate temperature and humidity changes, replicating the conditions of cold and thermal shock testing. This ensures that the product being tested is subjected to realistic and accurate conditions, providing reliable results.
Overall, the Thermal Shock Test Chamber is a highly reliable and accurate testing equipment that is essential for industries and businesses looking to ensure the quality and reliability of their products. It provides a comprehensive solution for conducting temperature impact and thermal shock tests, making it a valuable investment for any business.
Model | IE31A80L | IE31A100L | IE31A150L | IE31A225L | IE31A408L | |||
temperature range | -55℃ ~ +150℃ | |||||||
temperature fluctuation | ±1℃ | |||||||
temperature uniformity | ≦2.0℃ | |||||||
temperature recovery time | 5Minc以内 | |||||||
Heating rate | 由 RT 升至 +150℃ 约需40min | 由 RT 升至 +150℃ 约需50min | ||||||
Cooling rate |
由 RT 降至 -55℃ 约需65min |
由 RT 降至 -55℃ 约需70min |
||||||
Test zone dimension WxHxD(mm) |
500x400x400 | 500x400x500 | 500x600x500 | 500x750x600 | 600×850×800 | |||
Out-box dimension: WxHxD(mm) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 | |||
Warm-box |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner wall material : SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||
Chamber door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||
Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||
SAMPLE HOLDER | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||
Refrigeration compressor | France Tecumseh fully closed compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | |||
Coolants | Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic | |||||||
Condenser system | air-cooled | water-cooled | water-cooled | water-cooled | water-cooled | |||
Safety protection device | Heater anti-burning protection; Heater over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection. | |||||||
Power supply | AC380V;50Hz;18KW | AC380;V50Hz;18KW | AC380;V50Hz;22KW | AC380;V50Hz;22KW | AC380;V50Hz;25KW |
Brand Name: INFINITY
Model Number: IE31A Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
Inner Material: SUS304# Stainless Steel Plate.
Safety Protection Device: Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Protection; Circuit Breaker; Leakage Protection.
Temperature Recovery Time: Within 5 Mins
Features:
Brand Name: INFINITY
Model Number: IE31A Series
Place of Origin: MADE IN CHINA
Certification: CE, ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT, PAYPAL, Moneygram and so on
Supply Ability: 200 sets/month
Temperature Recovery Time: ≤5 Minutes
Models: IE31A80L, IE31A100L, IE31A150L, IE31A225L, IE31A408L
Safety Protection Device: Heater Anti-burning Protection; Heater Over Current Protection; Circulating Fan Over Current Overload Protection; Compressor High Pressure Protection; Compressor Overheat Protection; Compressor Over Current Protection; Over Voltage Under Inverse-phase Protection; Circuit Breaker; Leakage Protection.
Temperature Range: -55℃ ~ +150℃
Coolants: Non-fluorine Environmental Refrigerant R404A R23 Conforms To Environmental Regulations And Is Safe And Non-toxic
Key Words: Programmable Alternating Thermal Shock Chamber, Programmable Alternating Thermal Shock Chamber, Programmable Thermal Cycling Shock Test Chamber
The thermal shock test chamber is carefully packaged to ensure safe and secure delivery to our customers. Each unit is wrapped in protective materials and placed in a sturdy cardboard box. The packaging is designed to withstand the rigors of shipping and handling, ensuring that the product arrives in perfect condition.
For international shipments, the thermal shock test chamber is packed in a wooden crate to provide added protection during transportation. The crate is also heat-treated to comply with international shipping regulations.
We offer various shipping options to cater to our customers' specific needs, including airfreight, sea freight, and land transportation. Our experienced logistics team will work closely with our customers to determine the best shipping method based on their location and delivery timeline.
Upon shipment, we will provide our customers with a tracking number so they can monitor the progress of their order. We also offer insurance options for added peace of mind.
At our company, we take great care in the packaging and shipping process to ensure our customers receive their thermal shock test chambers in excellent condition and in a timely manner.
