Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE31A Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Temperature Fluctuation: | ±1℃ | Test Chamber Size: | 80L/150L/225L/408L |
---|---|---|---|
Inner Material: | SUS304# Stainless Steel Plate. | Temperature Recovery Time: | ≤5 Minutes |
Temperature Uniformity: | ≦2.0℃ | Power Supply: | IE31A 80L -100L: AC380V;50Hz;18KW IE31A 150L - 225L:AC380;V50Hz;22KW; IE31A 408L:AC380;V50Hz;25KW |
Type: | Thermal Shock Testing Chamber | Heating Rate: | IE31A 80L - 100L: It Takes About 40min For RT To Drop To -55℃; IE31A 150L - 408L: It Takes About 50min For RT To Drop To -55℃ |

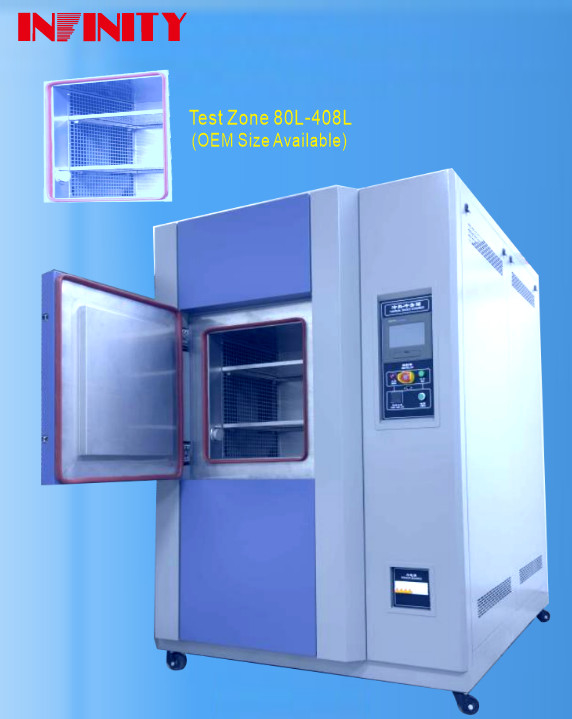

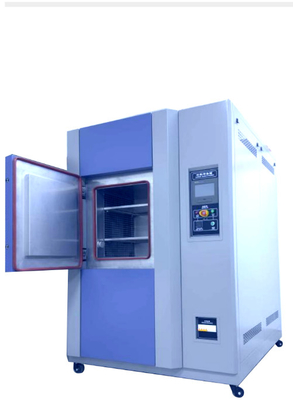

φ50mm Diameter Hole Programmable Thermal Shock Chamber for IE31A 80L IE31A 100L Models
The Programmable Thermal Shock Test Chamber is a high-quality testing equipment designed for conducting thermal shock tests on various products. This chamber is available in four different sizes - 80L, 150L, 225L, and 408L, catering to the diverse testing needs of different industries.
The Programmable Thermal Shock Test Chamber is a high-quality and versatile testing equipment that meets the diverse testing needs of different industries. With its advanced features and precise control, this chamber is the perfect choice for conducting thermal shock tests on various products.
Model | IE31A80L | IE31A100L | IE31A150L | IE31A225L | IE31A408L | |||
temperature range | -55℃ ~ +150℃ | |||||||
temperature fluctuation | ±1℃ | |||||||
temperature uniformity | ≦2.0℃ | |||||||
temperature recovery time | WITHIN 5Mins | |||||||
Heating rate | It takes about 40 minutes for RT to rise to +150℃ | It takes about 50min for RT to rise to +150℃ | ||||||
Cooling rate | It takes about 65min for RT to drop to -55℃ | It takes about 65min for RT to drop to -55℃ | ||||||
Test zone dimension WxHxD(mm) |
500x400x400 | 500x400x500 | 500x600x500 | 500x750x600 | 600×850×800 | |||
Out-box dimension: WxHxD(mm) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 | |||
Warm-box |
● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner chamber material : SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber. |
|||||||
Chamber door | For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature. | |||||||
Inspection window | The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation. | |||||||
SAMPLE HOLDER | Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer. | |||||||
Refrigeration compressor | France Tecumseh fully closed compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | German Bitzer semi-compact compressor | |||
Coolants | Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic | |||||||
Condenser system | air-cooled | water-cooled | water-cooled | water-cooled | water-cooled | |||
Safety protection device | Heater anti-burning protection; Heater over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection. | |||||||
Power supply | AC380V;50Hz;18KW | AC380;V50Hz;18KW | AC380;V50Hz;22KW | AC380;V50Hz;22KW | AC380;V50Hz;25KW |
The INFINITY IE31A Series Thermal Shock Test Chamber is a highly reliable and efficient testing equipment designed for various industries to simulate extreme temperature changes in a short period of time. It is suitable for testing the durability and performance of electronic products, aerospace components, automotive parts, and other materials under extreme temperature conditions.
Brand Name | INFINITY |
---|---|
Model Number | IE31A Series |
Place of Origin | MADE IN CHINA |
Certification | CE, ISO |
Minimum Order Quantity | 1 |
Price | Negotiate |
Packaging Details | Clear sheet+sponge+wood carton |
Delivery Time | 20-30 days after order confirmed |
Payment Terms | TT, PAYPAL, Moneygram and more |
Supply Ability | 200 sets/month |
Safety Protection Device | Heater Anti-burning Protection, Heater Over Current Protection, Circulating Fan Over Current Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Over Current Protection, Over Voltage Under Inverse-phase Protection, Circuit Breaker, Leakage Protection |
Refrigeration Compressor | IE31 80L France Tecumseh Fully Closed Compressor; IE31A 100L-408L Use German Bitzer Semi-compact Compressor |
Test Standards | GB/T2423.1-2001 Low Temperature Test Method; GB/T2423.2-2001 GB/T2423.22-1989 Temperature Change Test; National Military Standard GJB150.3-86; National Military Standard GJB150.4-86; National Military Standard GJB150.5-86; GJB150.5-86 Temperature Shock Test; GJB360.7-87 Temperature Impact Test; GJB367.2-87405 Temperature Impact Test; J/T10187-91 Y73 Series Temperature Change Test Box - Three Box Type; Meet The Standard IEC68-2-14_ Test Method N_ Temperature Change |
Sample Holder | Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/Layer |
Temperature Recovery Time | Within 5 Mins |
The INFINITY IE31A Series Thermal Shock Test Chamber is a versatile and high-quality testing equipment that conforms to international standards. Its programmable features and safety protection devices make it an essential tool for industries that require reliable and accurate thermal shock testing. With its fast temperature recovery time and sturdy construction, the chamber is a valuable asset for product development and quality control processes.
INFINITY
IE31A Series
MADE IN CHINA
CE, ISO
1
Negotiate
Clear sheet+sponge+wood carton
20-30 days after order confirmed
TT, PAYPAL, Moneygram, and more
200 sets / month
IE31A 80L - 100L: It Takes About 40min For RT To Drop To -55℃
IE31A 150L - 408L: It Takes About 50min For RT To Drop To -55℃
Within 5 Minutes
IE31A80L, IE31A100L, IE31A150L, IE31A225L, IE31A408L
Programmable Thermal Shock Test Chamber
Programmable Temperature Impact Test Chamber, Programmable High-Low Temperature Shock Test Chamber, Programmable Hot Cold Shock Test Chamber, Thermal Cycling Test Chamber
The Thermal Shock Test Chamber is carefully packaged to ensure safe delivery to our customers. The packaging materials used are sturdy and durable, providing maximum protection during transportation.
The chamber is first wrapped in a layer of protective foam to prevent any damage during handling. It is then placed in a sturdy cardboard box and sealed with high-quality packing tape. The box is labeled with the product name, model number, and any additional handling instructions.
For international shipments, the chamber is placed in a wooden crate for added protection. The crate is then secured with metal straps and labeled with the necessary shipping information.
Once packaged, the Thermal Shock Test Chamber is shipped via a trusted carrier to ensure timely and safe delivery. We also offer expedited shipping options for urgent orders.
Our packaging and shipping methods comply with industry standards and regulations to ensure the best quality and safety for our customers.
