Multi-layer Hollow Electrothermal Coated Glass Thermal Shock Test Chamber for Testing

Multi-layer Hollow Electrothermal Coated Glass Thermal Shock Test Chamber for Testing

Product Description:

Model	IE31A80L			IE31A100L	IE31A150L		IE31A225L	IE31A408L
temperature range	-55℃ ～ +150℃
temperature fluctuation	±1℃
temperature uniformity	≦2.0℃
temperature recovery time	WITHIN 5Mins
Heating rate	It takes about 40 minutes for RT to rise to +150℃				It takes about 50min for RT to rise to +150℃
Cooling rate	It takes about 65min for RT to drop to -55℃				It takes about 65min for RT to drop to -55℃
Test zone dimension WxHxD(mm)	500x400x400			500x400x500	500x600x500		500x750x600	600×850×800
Out-box dimension: WxHxD(mm)	1480×1450 ×1950			1480×1485×2050	1500×1750×2150		1600×1900×2250	1800x2000x2500
Warm-box	● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner chamber material : SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber.
Chamber door	For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Inspection window	The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.
SAMPLE HOLDER	Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor	France Tecumseh fully closed compressor	German Bitzer semi-compact compressor			German Bitzer semi-compact compressor	German Bitzer semi-compact compressor		German Bitzer semi-compact compressor
Coolants	Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system	air-cooled	water-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater anti-burning protection; Heater over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection.
Power supply	AC380V;50Hz;18KW		AC380;V50Hz;18KW		AC380;V50Hz;22KW	AC380;V50Hz;22KW		AC380;V50Hz;25KW

Applications:

Brand Name: INFINITY

Model Number: IE31A Series

Place of Origin: MADE IN CHINA

Certification: CE ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT PAYPAL Moneygram and so on

Supply Ability: 200 sets / month

Features:

• Consumption Reduction: Use Gas-liquid Bypass Mode To Adjust The Cooling Capacity To Achieve Constant Temperature And Humidity.
• High Reliability: The Key Parts Are Imported Parts To Ensure Service Life And Reliability.
• Insulation material: Hard Polyurethane Foam Insulation Layer + Glass Fiber.

Models:

• IE31A80L
• IE31A100L
• IE31A150L
• IE31A225L
• IE31A408L

Outer material of the chamber: High Quality Carbon Steel Plate, Surface For Electrostatic Color Spray Treatment. The Left Side Of The Box Is φ50mm Diameter Hole.

Sample holder: Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.

Product Introduction:

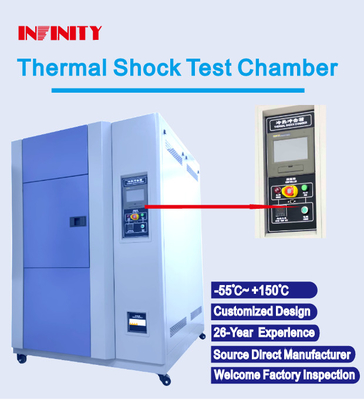

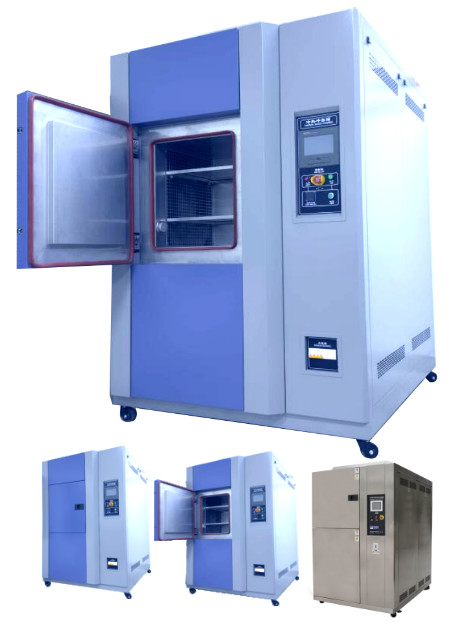

The INFINITY Thermal Shock Test Chamber, also known as a Programmable High-Low Temperature Shock Test Chamber, Programmable Rapid Temperature Change Test Chamber, or Thermal Cycling Chamber, is a specialized testing equipment designed to simulate extreme temperature changes and assess the durability and reliability of products. It is widely used in industries such as electronics, automotive, aerospace, and defense for quality control and research and development purposes.

Application Scenarios:

The INFINITY Thermal Shock Test Chamber is suitable for various product testing purposes, such as:

• Electronics: testing the impact of temperature changes on electronic components, circuits, and devices.
• Automotive: testing the durability of automotive parts and components under extreme temperature conditions.
• Aerospace: evaluating the performance of aircraft and spacecraft materials and equipment in extreme temperature environments.
• Defense: assessing the reliability of military equipment and weapons in harsh climate conditions.
• Research and Development: conducting experiments and studies on the effects of thermal shock on different materials and products.

Product Features:

• Programmable temperature and humidity control: allows for precise and customizable testing conditions.
• High reliability: the use of imported key parts ensures a long service life and reliable performance.
• Consumption reduction: the gas-liquid bypass mode reduces energy consumption while achieving constant temperature and humidity.
• Insulation material: the use of hard polyurethane foam insulation and glass fiber provides excellent insulation and temperature stability.
• Multiple models: the IE31A series offers various sizes and capacities to meet different testing needs.

Product Usage:

The INFINITY Thermal Shock Test Chamber is easy to operate and can be used for a variety of testing purposes, such as:

• Thermal shock testing: simulates rapid changes in temperature to assess the impact on product performance and reliability.
• Temperature cycling testing: evaluates the effects of repeated temperature changes on product durability.
• Humidity testing: measures the impact of humidity on product functionality and performance.
• Temperature and humidity testing: combines both temperature and humidity changes to simulate real-life conditions.

Conclusion:

The INFINITY Thermal Shock Test Chamber is a reliable and efficient testing equipment that helps ensure the quality and reliability of products in various industries. With its advanced features, customizable options, and multiple applications, it is an essential tool for manufacturers, researchers, and quality control professionals. Choose INFINITY for your thermal shock testing needs and experience superior performance and results.



Customization:

Brand Name: INFINITY

Model Number: IE31A Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram and so on

Supply Ability: 200 sets / month

Temperature Uniformity: ≦2.0℃

Test Temperature Range: -55°C~+150°C

Refrigeration Compressor: IE31 80L France Tecumseh Fully Closed Compressor; IE31A 100L-408L Use German Bitzer Semi-compact Compressor

Temperature Recovery Time: ≤5 Minutes

Inspection Window: The W 300×H 400mm Observation Window Is Installed On The Door Of The Box, And Multi-layer Hollow Electrothermal Coated Glass Can Effectively Keep Heat And Prevent Condensation.

For customers who require a high-quality thermal shock test chamber with advanced features and reliable performance, INFINITY offers a customized service for our IE31A Series. Our programmable thermal cycling shock test chamber, also known as a programmable alternating thermal shock chamber, is designed to meet the most demanding testing requirements.

As a leading manufacturer of thermal shock test chambers, we understand the importance of precision and accuracy in temperature testing. Our IE31A Series is equipped with a temperature uniformity of ≦2.0℃, ensuring consistent and reliable results. The test temperature range of -55°C~+150°C allows for a wide range of testing applications.

We use only the best refrigeration compressors in our IE31A Series. For our IE31 model, we use a 80L France Tecumseh fully closed compressor, while our IE31A models (100L-408L) use a German Bitzer semi-compact compressor. These compressors provide efficient and stable cooling for your testing needs.

The temperature recovery time of our IE31A Series is ≤5 minutes, ensuring quick and efficient temperature changes during testing. And for easy observation, our chambers are equipped with a W 300×H 400mm inspection window with multi-layer hollow electrothermal coated glass to prevent heat loss and condensation.

At INFINITY, we value our customers' specific needs and requirements. That's why we offer a customized service for our IE31A Series thermal shock test chambers. Contact us today to discuss your specific testing needs and let us create a customized solution for you.



Packing and Shipping:

Our thermal shock test chambers are carefully packaged and shipped to ensure safe and secure delivery to our customers. The following packaging and shipping methods are used for our thermal shock test chambers:

• Each chamber is first wrapped in protective materials to prevent any damage during transit.
• The wrapped chamber is then placed in a sturdy wooden crate to provide additional protection.
• The wooden crate is securely sealed and labeled with the necessary shipping information.
• For international shipments, the necessary customs documents and declarations are included.

Depending on the size and weight of the chamber, we use different modes of transportation to ensure timely and efficient delivery:

• For domestic shipments, we use trusted and reliable ground transportation services.
• For international shipments, we utilize air or ocean freight services depending on the urgency and destination of the order.

Our team is dedicated to carefully monitoring and tracking each shipment to ensure timely delivery and to address any issues that may arise during transit. We strive to provide the best packaging and shipping methods to ensure that our thermal shock test chambers arrive in perfect condition.



FAQ:

• Brand Name: INFINITY

Q:What is the model number of this product? A:

• Model Number: IE31A Series

Q:Where is this product made? A:

• Place of Origin: MADE IN CHINA

Q:What certifications does this product have? A:

• Certification: CE ISO

Q:What is the minimum order quantity for this product? A:

• Minimum Order Quantity: 1

Q:Is the price of this product negotiable? A:

• Price: Negotiate

Q:What is the packaging material for this product? A:

• Packaging Details: Clear sheet+sponge+wood carton

Q:How long does it take to deliver this product? A:

• Delivery Time: 20-30 days after order confirmed

Q:What are the accepted payment methods for purchasing this product? A:

• Payment Terms: TT PAYPAL Moneygram and so on

Q:What is the monthly supply capacity for this product? A:

• Supply Ability: 200 sets / month
