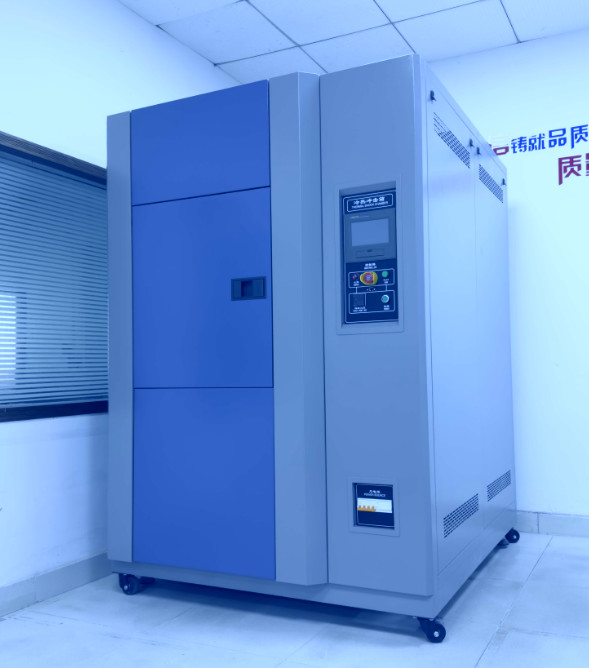

IE31A225L Programmable Thermal Cycling Shock Test Chamber for Wide Temperature Range

Product Description:

The Thermal Shock Test Chamber is a high-quality testing equipment designed for evaluating the ability of materials to withstand sudden changes in temperature. It is specifically designed for industries such as electronics, automotive, aerospace, and military, where products are subjected to extreme temperature changes during their use.

• Programmable Thermal Cycling Shock Test Chamber
• Programmable Cryogenic Thermal Shock Chamber
• Programmable Alternating Thermal Shock Chamber
• Thermal Shock Testing Equipment
• Thermal Shock Test Machine

The Thermal Shock Test Chamber uses Non-fluorine Environmental Refrigerant R404A R23, which conforms to environmental regulations and is safe and non-toxic. This ensures the safety of both the environment and the users of the equipment.

The inner material of the Thermal Shock Test Chamber is made of high-quality SUS304# Stainless Steel Plate, which is known for its excellent corrosion resistance and durability. This ensures that the equipment can withstand frequent temperature changes and maintain its high-performance standards.

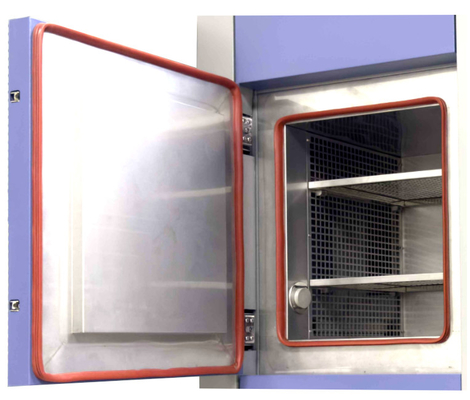

The Thermal Shock Test Chamber is equipped with a W 300xH 400mm observation window installed on the door of the box. The window is made of multi-layer hollow electrothermal coated glass, which effectively keeps heat and prevents condensation. This allows users to easily observe the test samples without compromising the stability of the temperature inside the chamber.

The Thermal Shock Test Chamber is available in two types: IE31 80L, which is air-cooled, and IE31A 100L-408L, which is water-cooled. Both systems are designed to provide efficient cooling and maintain the desired temperature during testing.

The Thermal Shock Test Chamber has a temperature uniformity of ≦2.0℃, ensuring that the test samples are subjected to the same temperature conditions throughout the testing process. This allows for accurate and reliable test results.

The Thermal Shock Test Chamber is a reliable and efficient testing equipment designed to meet the demands of various industries. Its programmable features, high-quality materials, and advanced cooling system make it a top choice for evaluating the thermal shock resistance of materials and products. Contact us now to learn more about our Thermal Shock Test Chamber and how it can benefit your business.

Model	IE31A80L			IE31A100L	IE31A150L		IE31A225L	IE31A408L
temperature range	-55℃ ～ +150℃
temperature fluctuation	±1℃
temperature uniformity	≦2.0℃
temperature recovery time	WITHIN 5Mins
Heating rate	It takes about 40 minutes for RT to rise to +150℃				It takes about 50min for RT to rise to +150℃
Cooling rate	It takes about 65min for RT to drop to -55℃				It takes about 65min for RT to drop to -55℃
Test zone dimension WxHxD(mm)	500x400x400			500x400x500	500x600x500		500x750x600	600×850×800
Out-box dimension: WxHxD(mm)	1480×1450 ×1950			1480×1485×2050	1500×1750×2150		1600×1900×2250	1800x2000x2500
Warm-box	● Outer wall material: high quality carbon steel plate, surface for electrostatic color spray treatment. The left side of the box is φ50mm diameter hole. ● Inner chamber material : SUS304# stainless steel plate. ● Insulation material: hard polyurethane foam insulation layer + glass fiber.
Chamber door	For a single door, install a heating wire in the door frame to prevent condensation in the door frame at low temperature.
Inspection window	The W 300×H 400mm observation window is installed on the door of the box, and multi-layer hollow electrothermal coated glass can effectively keep heat and prevent condensation.
SAMPLE HOLDER	Stainless steel sample rack 2 layers, height adjustable, bearing weight 30kg/ layer.
Refrigeration compressor	France Tecumseh fully closed compressor	German Bitzer semi-compact compressor			German Bitzer semi-compact compressor	German Bitzer semi-compact compressor		German Bitzer semi-compact compressor
Coolants	Non-fluorine environmental refrigerant R404A R23 conforms to environmental regulations and is safe and non-toxic
Condenser system	air-cooled	water-cooled			water-cooled	water-cooled		water-cooled
Safety protection device	Heater anti-burning protection; Heater over current protection; Circulating fan over current overload protection; Compressor high pressure protection; Compressor overheat protection; Compressor over current protection; Over voltage under inverse-phase protection; Circuit breaker; Leakage protection.
Power supply	AC380V;50Hz;18KW		AC380;V50Hz;18KW		AC380;V50Hz;22KW	AC380;V50Hz;22KW		AC380;V50Hz;25KW

Applications:

IE31A 80L -100L: AC380V;50Hz;18KW

IE31A 150L - 225L: AC380V;50Hz;22KW

IE31A 408L: AC380V;50Hz;25KW

Stainless Steel Sample Rack 2 Layers, Height Adjustable, Bearing Weight 30kg/ Layer.

The INFINITY IE31A Series Thermal Shock Test Chamber is designed for testing the performance and reliability of various products, components, electrical appliances, instruments, materials, coatings, etc. under extreme temperature changes. It is suitable for use in the electrical, electronic, and mechanical industries to simulate temperature and humidity changes and evaluate the quality of the tested products.

This programmable cryogenic thermal shock chamber can perform high and low temperature, wet and thermal tests, and can simulate temperature and humidity changes under the condition of cold and thermal shock. It is equipped with advanced technology and features a temperature uniformity of ≦2.0℃, ensuring accurate and reliable test results.

• Programmable Cryogenic Thermal Shock Chamber
• Programmable Temperature Impact Test Chamber
• Programmable Thermal Shock Chamber
• High Temperature Range: +150℃
• Low Temperature Range: -40℃
• Fast Temperature Change Rate: Up to 10℃/min
• Easy-to-use Touch Screen Control Panel
• Stainless Steel Sample Rack with Height Adjustment
• Bearing Weight of 30kg per Layer
• CE and ISO Certified
• MADE IN CHINA

Experience the best-in-class thermal shock testing with INFINITY IE31A Series. Contact us now to discuss your specific needs and requirements.



Customization:

Brand Name: INFINITY

Model Number: IE31A Series

Place of Origin: MADE IN CHINA

Certification: CE, ISO

Minimum Order Quantity: 1 set

Price: Negotiate

Packaging Details: Clear sheet+sponge+wood carton

Delivery Time: 20-30 days after order confirmed

Payment Terms: TT, PAYPAL, Moneygram, and more

Supply Ability: 200 sets per month

Temperature Fluctuation: ±1℃

Insulation Material: Hard Polyurethane Foam Insulation Layer + Glass Fiber

Test Chamber Size: 80L/150L/225L/408L

Inner Material: SUS304# Stainless Steel Plate

Power Supply: IE31A 80L -100L: AC380V;50Hz;18KW
IE31A 150L - 225L: AC380;V50Hz;22KW
IE31A 408L: AC380;V50Hz;25KW

The INFINITY IE31A Series Thermal Shock Test Chamber is designed to simulate extreme temperature changes for testing the reliability and durability of products. With its programmable features, the chamber can perform thermal cycling, high-low temperature shock, and hot-cold shock tests.

The chamber can be programmed to perform high-low temperature shock tests, where the product is subjected to rapid changes in temperature between extreme hot and cold conditions. This test helps to evaluate the effects of thermal stress on the product and its components.

The hot cold shock test is another important test that can be performed using the INFINITY IE31A Series Thermal Shock Test Chamber. It exposes the product to extreme temperature changes, simulating real-life scenarios and ensuring its reliability and durability under extreme conditions.



Packing and Shipping:

Our thermal shock test chamber is carefully packaged to ensure safe transportation and delivery. The product is first wrapped in a protective material to prevent any damage during shipping. It is then placed in a sturdy and secure wooden crate or box, which is designed to withstand any rough handling during transit.

For international shipments, the product is securely strapped and labeled with all necessary shipping information. We work closely with reputable shipping companies to ensure timely and efficient delivery to our customers.

Upon arrival, the product is thoroughly inspected to ensure it has arrived in perfect condition. Any necessary assembly or installation instructions will be included in the shipment, along with a warranty and user manual.

We take great care in packaging and shipping our thermal shock test chamber to guarantee it arrives at its destination in the same condition as when it left our facility.



FAQ:

• Brand Name: INFINITY

Q2:What is the model number of this product? A2:

• Model Number: IE31A Series

Q3:Where is this product made? A3:

• Place of Origin: MADE IN CHINA

Q4:Does this product have any certifications? A4:

• Certification: CE ISO

Q5:What is the minimum order quantity for this product? A5:

• Minimum Order Quantity: 1

Q6:Is the price of this product negotiable? A6:

• Price: Negotiate

Q7:How is this product packaged? A7:

• Packaging Details: Clear sheet+sponge+wood carton

Q8:What is the estimated delivery time for this product? A8:

• Delivery Time: 20-30 days after order confirmed

Q9:What are the available payment terms for this product? A9:

• Payment Terms: TT PAYPAL Moneygram and so on

Q10:How many sets of this product can be supplied in a month? A10:

• Supply Ability: 200 sets / month
