Place of Origin: | MADE IN CHINA |
Brand Name: | INFINITY |
Certification: | CE ISO |
Model Number: | IE 41 Series |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | TT PAYPAL Moneygram and so on |
Supply Ability: | 200 sets / month |
Refrigeration Compressor: | France Taikang Fully Closed Compressor | Advantage: | It Can Better Reproduce The Corrosion Occurring In Outdoor Salt Pollution Environment |
---|---|---|---|
Application: | It Is Also Suitable For Accelerated Corrosion Tests, Such As Metals And Their Alloys, Metal Overlays (anodic And Cathodic), Conversion Overlays, Anodic Overlays, Organic Overlays On Metal Materials, Etc. | Condenser Mode: | Air-cooled |
Test The Valid Content Product: | 150L 270L 576L 800L 1200L | Humidity Range: | 20~100%R.H |
Equipment Design Principle: | The Equipment Is Designed To Simulate And Increase The Impact Of The Environment On Metal Materials Exposed To Salt Pollution And Can Accelerate Corrosion. The Equipment Includes The Test Method For Exposing The Sample Cycle To Salt Spray, Dry, Wet And Hum | Relative Humidity Fluctuation: | ±2%R.H |

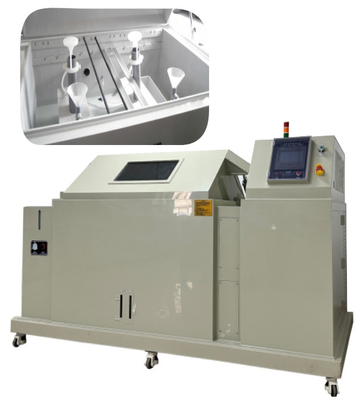

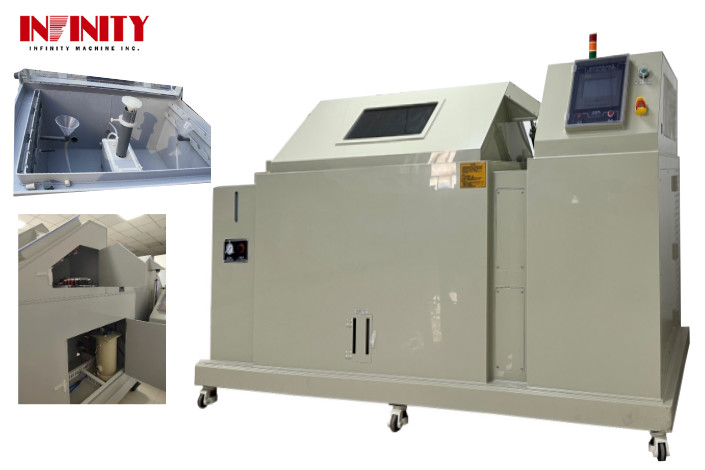

Salt Spray Test Chamber Rising & cooling rate 95% / -5% RH For 15 Min Moistet 50C IE41
Salt Spray Test Chamber is a specialized testing equipment used to simulate real-life conditions and test the corrosion resistance of products. It provides a controlled environment for testing the durability and quality of materials, coatings, and products.
The chamber comes in various sizes to meet different testing requirements:
The Relative humidity fluctuation is ±2%R.H, ensuring precise and reliable test results. The humidity range is 20~100%R.H, providing a wide range of testing capabilities.
The chamber has a fast rising and cooling rate, with RT →+85℃≤40 Min, RT→+0℃≤30 Min, and Salt Spray (35℃) Dry (60℃.20~30%RH)≤30 Min. It also has the ability to perform Dry (60℃, 20-30% RH) and Wet (50℃, 95% + / -5% RH) for 15 Min, followed by Moisture (50℃, 95% + / -5% RH) and Salt Spray (35℃) for 30 Min (immediate Spray Required After Switching).
The INFINITY Salt Spray Test Chamber is a high-quality product designed to test the corrosion resistance of materials in various environments. This chamber is perfect for industrial settings, laboratories, and research facilities, allowing for precise and accurate testing of materials.
Specification parameters:
model | I E4160L | I E4190L | I E41120L | I E41160L | I E41200L |
Temperature range | 5℃ ~ +85℃ | ||||
Temperature departure | ±1℃ | ||||
Temperature fluctuation | ±0.5℃ | ||||
Temperature uniformity | ≦2.0℃ | ||||
Humidity range | 20~100%R.H | ||||
Humidity deviation | ±2%R.H | ||||
Relative humidity fluctuation | ±2%R.H | ||||
Humidity uniformity | ±3%R.H | ||||
Rising and cooling rate |
RT →+85℃≤40 min RT→+0℃≤30 min Salt spray (35℃) dry (60℃.20~30%RH)≤30 min. Dry (60℃, 20-30% RH) and wet (50℃, 95% + / -5% RH) for 15 min. Moistet (50℃, 95% + / -5% RH) salt spray (35℃) for 30 min (immediate spray required after switching). |
||||
Effective inner capacity | 150L | 270L | 576L | 800L | 1200L |
Internal box size: WxHxD(mm ) |
600*500*500 | 900*600*600 | 1200*1000*600 | 1600*1000*600 | 2000*1000*600 |
Out box size: WxHxD(mm ) |
1780*950*1300 | 2080*1050*1350 | 2380*1450*1450 | 2780*1450*1450 | 3180*1450*1450 |
Box structure |
● Test chamber box: using PP polypropylene board, the thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory outer box: using PP polypropylene board, thickness of 10mm, temperature resistance of about 100 degrees. ● Laboratory sealing cover: using PP polypropylene plate, thickness of 10mm, one-button automatic open cover, with transparent observation window, combined with the defogging device, Convenient clear observation of the test, temperature resistance of about 100 degrees. |
||||
Water filling method | Automatic / manual dual water supply mode, automatic water inlet with a set of water purifier | ||||
specimen holder |
● The inner wall of PVC polyethylene dilute triangular tank box is used to place the dividing frame, the Angle of the test product can be adjusted at will, and the number of test pieces on all sides is completely consistent. ● At the bottom of the test box, the PP plate punching sample placement platform. The uniform opening on the platform surface will discharge the spray liquid quickly, and the large sample can be placed on the platform for testing. |
||||
refrigeration compressor | France taikang fully closed compressor | ||||
cooling medium | Non-fluorinated refrigerant R404A complies with environmental regulations, safe and non-toxic | ||||
Condenser mode | air-cooled | ||||
Safety protection device | refrigeration system |
Compressor overheating protection Compressor overcurrent protection Over pressure and low pressure protection Condensate fan overheating protection |
|||
test box |
Adjustable overtemperature protection Extreme overtemperature protection of the air conditioning channel Fan, motor superheater relay protection |
||||
heating system |
Heating pipe dry burning protection alarm Abnormal water supply alarm Abnormal drainage alarm |
||||
other |
earth leakage protection Overload and short-circuit protection The power supply lacks the reverse phase protection function |
||||
weight (Kg) | About 300 | About 400 | About 500 | About 600 | About 700 |
source | AC380V;50Hz;7KW | AC380;V50Hz;9KW | AC380;V50Hz;11KW | AC 380;V50Hz;13KW | AC 380;V50Hz;15KW |
The INFINITY Salt Spray Test Chamber is suitable for a wide range of applications, including but not limited to:
The INFINITY Salt Spray Test Chamber can be used in various scenarios, such as:
With its high precision, easy operation, and versatile applications, the INFINITY Salt Spray Test Chamber is a must-have for any industry or research facility that deals with materials and corrosion resistance. Contact us now to learn more about this product and how it can benefit your business.
Brand Name: INFINITY
Model Number: IE 41 Series
Place of Origin: MADE IN CHINA
Certification: CE ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: TT PAYPAL Moneygram and so on
Supply Ability: 200 sets / month
Refrigeration compressor: France Taikang Fully Closed Compressor
Condenser mode: Air-cooled
Cooling medium: Non-fluorinated Refrigerant R404A Complies With Environmental Regulations, Safe And Non-toxic
Test standards: GB / T20854-2007 / ISO14993-2001 Dry-wet Salt Spray Test GB-T5170.8-2008_ Inspection Method Of Electrical And Electronic Products Environmental Test Equipment _ Salt Spray Test Equipment GJB150.11A-2009 Environmental Test Method Of Military Equipment Laboratory Salt Spray Test GBT2424.17-2008 Test Method For Salt Spray GB-T2423.18-2000 Sodium Chloride Alternating Salt Spray Test Method GB-T2423.3-2006 (IEC6008-2-78-2001) Test Cab: Constant Damp Heat Test Method GBT2423_4-2008 Test Method For Humid Heat Mixing IEC60068-2-52-2017 Environmental Testing-Part 2-25 Test Tests Kb Circulating Salt Spray (sodium Chloride Solution) IEC 60068-2-11-1982 Electrical Technology. Basic Environmental Test Procedures. Part 2: Testing. Section 11: Test Ka: Salt Spray
Features:
Our Salt Spray Test Chamber (New) is carefully packaged and shipped to ensure safe delivery to our customers. Here is our standard packaging and shipping process:
We offer various shipping options to accommodate our customers' needs:
