| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE,ISO |
| Model Number: | IE31A80L |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | 100USD~5000USD |
| Packaging Details: | Master carton |
| Delivery Time: | 200sets per monthes |
| Payment Terms: | T/T,D/P,L/C, D/A, Western Union, MoneyGram |
| Supply Ability: | 200PC PER MONTH |

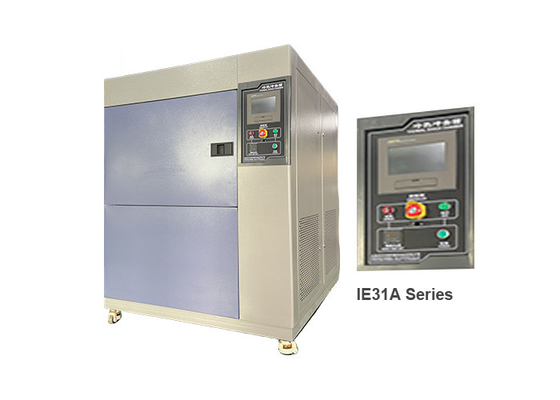

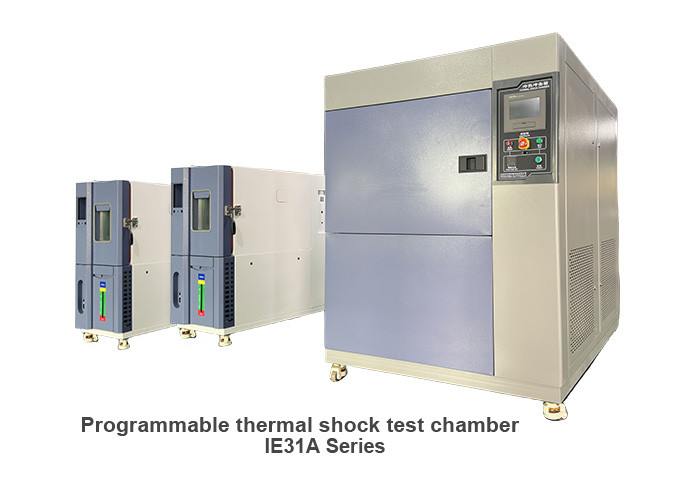

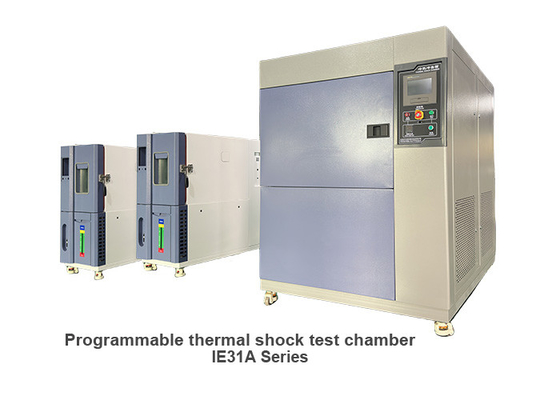

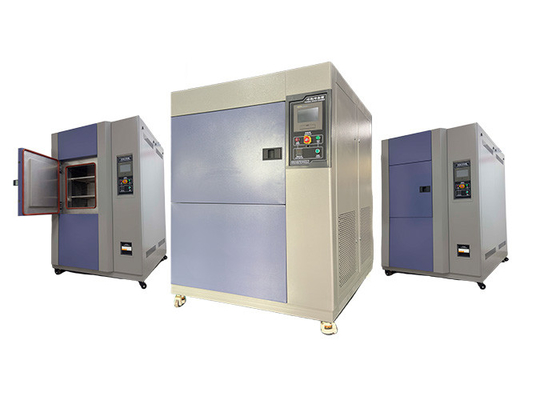

| Product Name: | Programmable Thermal Shock Test Chamber | Model: | IE31A80L |
|---|---|---|---|
| Temperature Range: | ± 0.5℃ | Temperature Fluctuation: | ±1℃ |
| Temperature Recovery Time: | Within 5Minc | Temperature Uniformity: | ≦2.0℃ |
| Heating Rate (heat Storage Area) (thermal Reserve Zone): | It Takes About 40 Minutes To Rise From RT To +150℃ | Cooling Rate (cold Storage Area): | It Takes About 65 Minutes To Drop From RT To -55℃ |
| Condenser Method: | AC380V;50Hz;18KW | Capacity: | 250L |
| Humidity: | 85%~98%RH | Salt Spray Subside: | 1.0~2.0ml/80cm2/h |
| Test Room Size: | 900x600x450mm | Machine Size: | 1460x910x1280mm |
| Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Power Supply: | AC220V 15A Or Specified By User | Water Way: | Atered By Itself While Lack Of Water |
| Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. | Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability |
| Spray Material: | Transparent PVC | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
| Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 | Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. |
| High Light: | Two Slots Programmable Thermal Shock Chamber,18KW Programmable Thermal Shock Chamber |
||
Programmable thermal shock test chamber.pdf
(1)Programmable Thermal Shock Chamber is used for users to conduct corresponding climate mutation tests oncomplete products (or components), electrical appliances, instruments, materials, coatings, plating, etc.
(2).It is suitable for high and low temperature testing on electrical, electronic, mechanical industries and other products, components, materials, etc.
(3).Humidity and heat test: conduct hot and cold shock test under simulated temperature and humidity changes to evaluate the quality of the test product.
Applicable standards:
l GB/T2423.1-2001Low temperature test method；
l GB/T2423.2-2001；
l GB/T2423.22-1989Temperature change test；
l National Military StandardGJB150.3-86；
l National Military StandardGJB150.4-86；
l National Military StandardGJB150.5-86；
l GJB150.5-86Temperature shock test
l GJB360.7-87Temperature shock test；
l GJB367.2-87 405Temperature shock test；
l J/T10187-91Y73 Temperature change test chamber—three-box type；
l Meets the standard IEC68-2-14_Test method N_Temperature change.
| Model | IE31A80L | IE31A100L | IE31A150L | IE31A225L | IE31A408L | ||
| Temperature range | -55℃ ～ +150℃ | ||||||
| Temperature fluctuation | ±1℃ | ||||||
| Temperature uniformity | ≦2.0℃ | ||||||
| Temperature recovery time | Within 5Minc | ||||||
| Heating rate (heat storage area) | It takes about 40 minutes to rise from RT to +150℃ | It takes about 50 minutes to rise from RT to +150℃ | |||||
| Cooling rate (cold storage area) | It takes about 65 minutes to drop from RT to -55℃ | It takes about 70 minutes to drop from RT to -55℃ | |||||
|
Inner box size: WxHxD(mm) |
500x400x400 | 500x400x500 | 500x600x500 | 500x750x600 | 600×850×800 | ||
|
Carton size: WxHxD(mm) |
1480×1450 ×1950 | 1480×1485×2050 | 1500×1750×2150 | 1600×1900×2250 | 1800x2000x2500 | ||
| Insulation box |
● Outer wall material: high-quality carbon steel plate, surface treated with electrostatic color spraying. The left side of the box has a diameter of φ50mm. ● Inner wall material: SUS304# matte stainless steel plate. ● Insulation material: rigid polyurethane foam insulation layer + glass fiber. |
||||||
| Chamber door | For single-door doors, install a door frame heating wire at the door frame to prevent condensation on the door frame at low temperatures. | ||||||
| Observation window | Install a W 300×H 400mm observation window on the door. The multi-layer hollow electrothermal coated glass can effectively preserve heat and prevent condensation. | ||||||
| sample holder | Stainless steel sample rack with 2 layers, adjustable layer height, load capacity 30kg/layer. | ||||||
| Refrigeration Compressors |
French Taikang fully enclosed compressor |
German Bitzer semi-closed compressor |
German Bitzer semi-closed compressor |
German Bitzer semi-closed compressor |
German Bitzer semi-dense type compressor |
||
| Refrigerant |
Non-fluorine environmentally friendly refrigerant R404A R23 complies with environmental regulations, safe and non-toxic |
||||||
| Condenser method | Air-cooled | Water-cooled | Water-cooled | Water-cooled | Water-cooled | ||
| Safety protection device | Heater anti-air fire protection; heater over-current protection; circulation fan over-current and overload protection; compressor high-voltage protection; compressor over-heat protection; compressor over-current protection; over-voltage reverse phase protection; line circuit breaker; leakage protection. | ||||||
| Power supply | AC380V;50Hz;18KW | AC380;V50Hz;18KW | AC380;V50Hz;22KW | AC380;V50Hz;22KW | AC380;V50Hz;25KW | ||
Infinity Machine's IE31A series Environmental Test Chamber is the ideal choice for environmental testing and simulation applications. This reliable and high-performance environmental testing machine is made in China and certified by CE and ISO. It ensures minimal temperature deviation of no more than 2.0℃ and has a master carton packaging for transport. The minimum order quantity is 1 and the price ranges from 100USD to 5000USD, while 200sets per month can be shipped in time. Payment terms include T/T, D/P, and L/C. The sample stand is a stainless steel sample rack with two layers, adjustable height, and can bear a weight of up to 30kg per layer. The power supply is AC380V;50Hz;18KW, and it has a range of safety protection devices such as Heater Anti-burning Protection, Heater Overcurrent Protection, Circulating Fan Overcurrent Overload Protection, Compressor High Pressure Protection, Compressor Overheat Protection, Compressor Overcurrent Protection, Overvoltage Underinverse-phase Protection, Circuit Breaker, and Leakage Protection. The refrigeration compressor is a France Taikang Fully Closed Compressor.
We are dedicated to providing you with the best technical support and services for your Environmental Test Chamber. Our team of experts are available to answer your questions and help you find the right solution for your application.
We are committed to providing prompt and professional service. We have a wide variety of technical resources available, including user manuals, technical manuals, product brochures, product datasheets, and application notes.
We provide comprehensive on-site service, remote support, and phone support. Our technicians are available to answer your questions and provide timely assistance. We are also available to provide training and instruction on the proper use and maintenance of your Environmental Test Chamber.
If you have any questions or need assistance with your Environmental Test Chamber, please don’t hesitate to contact us.
Environmental Test Chamber is packaged in a cardboard box or wooden box, depending on the size of the product. The box is filled with foam and other cushioning materials to protect the product from external shock during transportation.
The shipping is done by sea freight or air freight, depending on the needs of customers. If customers request, we can also provide door-to-door delivery service.
