| Place of Origin: | Made In China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | IE60304 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | T/T, Western Union, D/A, D/P, MoneyGram |
| Supply Ability: | 200 sets per month |
| Humidity Range: | ≥90%RH | Modulator Tube: | UVA-340 L=1200/40W,8 Piece |
|---|---|---|---|
| BoxStructure: | Indoor And Outdoor Boxes: SUS304# Stainless Steel Is Used In The Indoor And Outdoor Boxes | Safety Protection Device: | Leakage Circuit Breaker Control Circuit, Overload, Short Circuit Alarm, Overtemperature Alarm, Water Shortage Protection |
| Temperature Uniformity: | ≦1.0℃ | Effective Irradiation Region: | 900×210mm |
| Specimen Holder: | Aluminum Frame Type Base Frame Vision Plate, 24 Pay | Irradiated Blackboard Temperature: | 50℃~70℃ |
| Capacity: | 250L | Humidity: | 85%~98%RH |
| Temperature Range: | ± 0.5℃ | Salt Spray Subside: | 1.0~2.0ml/80cm2/h |
| Test Room Size: | 900x600x450mm | Machine Size: | 1460x910x1280mm |
| Lab Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C |
| Saturator Temperature: | NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C | Power Supply: | AC220V 15A Or Specified By User |
| Water Way: | Atered By Itself While Lack Of Water | Spray Work Time: | Precise Spray Can Work 2000 Hours Without Crystalled Jam. |
| Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability | Body Material: | Japanese PVC Environmental Protection & High Anti-aging Capability |
| Spray Material: | Transparent PVC | SSR: | Precisely Digital Thermal Controller With Spray Protection System. |
| Standards: | GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371 | Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. |
| Application: | This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized. | ||
| High Light: | High Temperature UV Weathering Test Chamber,AC220V UV Weathering Test Chamber |
||

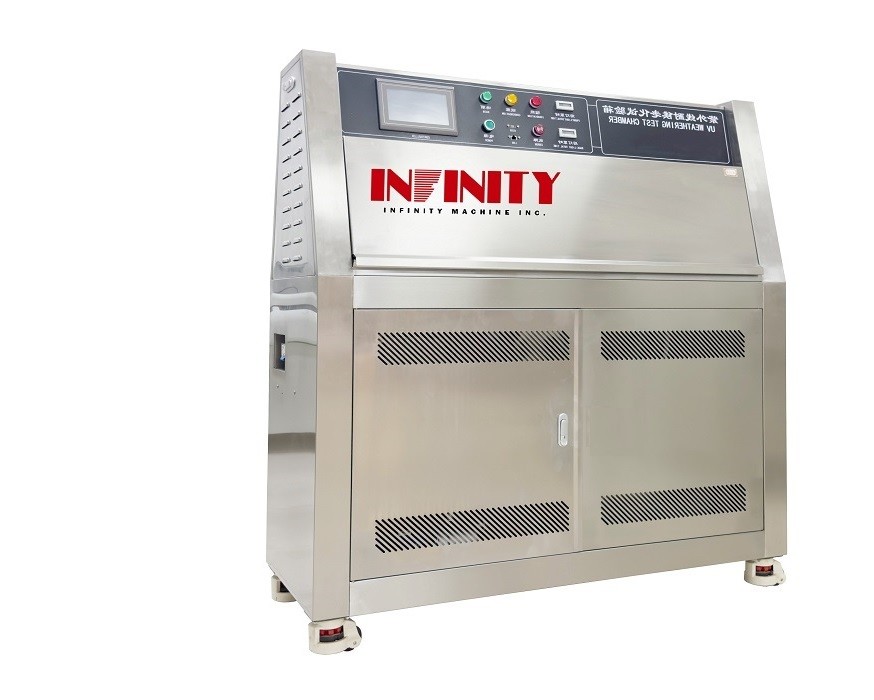

The UV Weathering Test Chamber uses fluorescent ultraviolet lamps that best simulate the UV spectrum of sunlight, and combines temperature control and humidity supply devices to compare the high temperature, high humidity, condensation, dark rain cycle and other factors that cause discoloration, brightness, strength decline, cracking, peeling, pulverization, oxidation and other damage to the material in sunlight (UV segment). At the same time, through the synergistic effect between ultraviolet light and moisture, the single light resistance or single moisture resistance of the material is weakened or failed, so it is widely used to evaluate the weather resistance of the material.
| Parameters | Details |
| Model Number | IE60304 |
| Temperature Range | RT+20℃~70℃ |
| Humidity Range | ≥90%RH |
| Temperature Fluctuation | ±0.5℃ |
| Temperature Uniformity | ≦1.0℃ |
| Center distance inside the lamp | 70mm |
| The distance between the specimen and the center of the lamp | 50±3mm |
| Modulator Tube | UVA-340 L=1200/40W,8pieces |
| Irradiance | Adjustable within 1.2W/m2 |
| Ultraviolet Wavelength | 315-400nm |
| Effective irradiation region | 900×210mm |
| Irradiated blackboard temperature | 50℃~70℃ |
|
Interior dimension:WxHxD(mm) |
1140*400*390 |
|
Carton size :WxDxH(mm) |
1300*500*1360 |
| Box Structure | Indoor and outdoor boxes: SUS304# stainless steel is used in the indoor and outdoor boxes |
| Specimen Holder | Aluminum frame type base frame vision plate, 24 pay |
| Standard sample size | 75×290mm(Special specifications need to be specified) |
| Safety protection device | Leakage circuit breaker control circuit, overload, short circuit alarm, overtemperature alarm, water shortage protection |
| Power Supply | AC220V;50Hz;5KW |
Technical Support and Services
We are committed to providing our customers with exceptional technical support and services for our UV Weathering Test Chamber. We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for our UV Weathering Test Chamber. If you have any questions or need assistance, please feel free to contact us.
UV Weathering Test Chamber products will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
