Name: Mobile Phone Coating Abrasion Testing Machine, 45° Pencil Eraser Alcohol Abrasion Resistance Test Machine
Brand: Infinity Machine International Inc.
SKU: IN-5600
Price: 50,050.00 USD
Availability: InStock

Home Products Abrasion Testing Machine

Mobile Phone Coating Abrasion Testing Machine, 45° Pencil Eraser Alcohol Abrasion Resistance Test Machine

Product Details:

Place of Origin:	Made in China
Brand Name:	Infinity Machine
Certification:	CE, ISO
Model Number:	IN-5600

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Alcohol Abrasion Testing Machine: Standard export wooden case with operation manual and video inside.
Delivery Time:	Alcohol Abrasion Test Machine: Shipped in 15 days after payment
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	Ethanol Abrasion Test Machine: 200 sets per month

Contact Now

Detailed Product Description

Testing Stroke:	2~20mm Or Specified By User	Load:	80~1000gf
Poise:	10, 20, 50, 100, 200, 500kgf	Testing Speed:	10~60 Times/min （digital Display）
Abrasion Medium:	Ethanol, Eraser，Pencil	Dimension:	530x490x850mm
Weight:	45kg	Power Supply:	AC220V 50Hz 5A Or Specified By User
Highlight:	din abrasion tester , rotary abrasion tester

Phone Coating Abrasion Testing Machine , Alcohol Pencil Eraser Abrasion Test Machine

Model: IN-5600

Application:

Alcohol abrasion resistance tester apply for abrasion test for coating surface or silkscreen printing of mobile phone, computer, electronic devices, to check the anti-abrasion ability and the adhesive ability of coating or silkscreen printing.

Feature:

Alcohol / pencil / eraser abrasion resistance test machine can test abrasion (with alcohol/eraser),and hardness test with pencil drawing at the same time.

With many tester cap, jig, ethanol/pencil/eraser/rubber abrasion resistance tester suitable for testing mobile and laptop computer and so on.

Digital display for speed, times, abrasion resistance testing machine can adjust the stroke under non- stop working.

Abrasion resistance test equipment adopt Japan precision component, low noise, durable using.

Abrasion resistance test device adopt Japan Mitsubishi LCD touching screen control.(optional)

Specification:

Model	IN-5600
Testing stroke	2~20mm or 5~50mm or specified by user
Load	80~1000gf
Poise	10, 20, 50, 100, 200, 500kgf
Max supporting weight on table	5kgf
Testing speed	10~60 times/min
Control method	digital display or touch panel (option)
Counter	1~999,999times(can be set)
Abrasion medium	Ethanol/alcohol, eraser, Pencil
Dimension (WxDxH)	530x490x850mm
Weight	45kg
Power supply	AC220V 50Hz 5A or specified by user

Service:

For more information about abrasion resistance testing machines, please contact us.

Contacts: Amy Lin

Email: Amy.lin@infinity-machine.com

Tel/wechat/whatsapp: +86 173 1810 8837

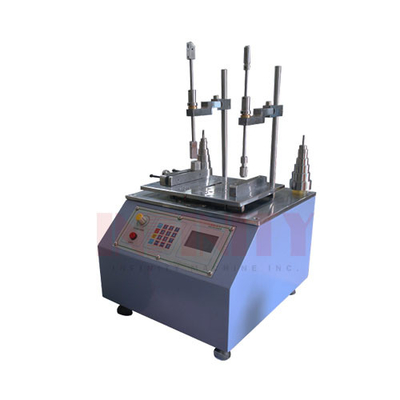

Mobile Phone Coating Abrasion Testing Machine, 45° Pencil Eraser Alcohol Abrasion Resistance Test Machine 0

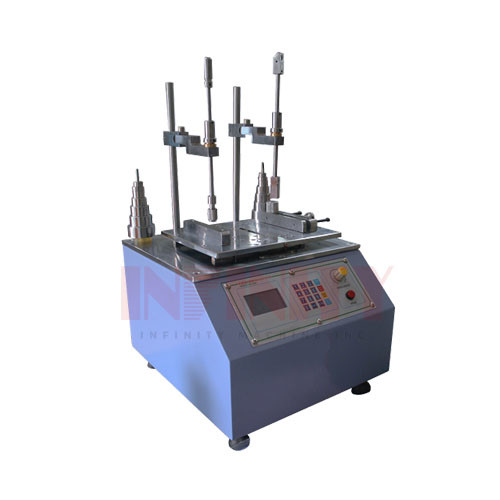

Mobile Phone Coating Abrasion Testing Machine, 45° Pencil Eraser Alcohol Abrasion Resistance Test Machine 1
