Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: SC-500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Test Cabinet Size: 1000x1000x1000mm The Centre Height Of The Swing Tube: 600mm~1200mm
Spray Hole: ¢0.4mm Raining Force: 100~500Kpa
Dimension: 1400x1250x1950mm Weight: 400 Kg
Power Supply: AC220V 15A Or Specified By User Motor: Variable Frequency Motor
Capacity: 250L Humidity: 85%~98%RH
Temperature Range: ± 0.5℃ Salt Spray Subside: 1.0~2.0ml/80cm2/h
Test Room Size: 900x600x450mm Machine Size: 1460x910x1280mm
Lab Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C Saturator Temperature: NSS.ACSS 35°C ± 1 °C / CASS 50°C ± 1 °C
Water Way: Atered By Itself While Lack Of Water Spray Work Time: Precise Spray Can Work 2000 Hours Without Crystalled Jam.
Body Material: Japanese PVC Environmental Protection & High Anti-aging Capability Spray Material: Transparent PVC
SSR: Precisely Digital Thermal Controller With Spray Protection System. Standards: GB/T5170.8, GB/T2423.17, ISO-3768 3769 3770, ASTM-B117 B268, JIS-D0201 H8502 H8610 K5400 Z2371
Application: This Tester Is Used For The Surface Erosion Resistance Test Of Kinds Of Material Processed By Paint, Plating, Anodized.
High Light:

environmental testing equipment

,

environmental testing chamber

Environmental Resistance Sand And Dust Test Chamber , Dust Testing Equipment SC -1000



Purpose:



This machine applies for electronic, houseware, motor unit to evaluate the resistance, storage and running under the exposure of dry sand or the atmosphere with plentiful dusty.

There is a big observing window convenient for dust test observation, also with digitally intelligent adjustor to ensure the control precision of temperature and humidity.

Dust tester is composed of test cabinet and auxiliary equipment.



Standards:



IEC60529-2001, GB/T4208, GB/T2423.37



Specification:



 Model  SC-500  SC-1000
 Working-room Dim(WxDxH)  800x800x800  1000x1000x1000
 Temperature of heated dust  RT~60℃
 Humidity  <30%R.H
 Sand size  150m 850m
 Dust size  <149m
 Ingredient of sand and dust  Silic powder (95% SiO2)
 Test time set  0.01min~99H59min ( can set ), continuous 8 hours
 Main unit dimension (WxDxH)  1200x1050x1730mm  1400x1250x1950mm
 Main unit weight  300 Kg  400 Kg
 Power supply  AC220V 50Hz 2KW or specified  AC220V 50Hz 2.2KW or  specified



Picture:

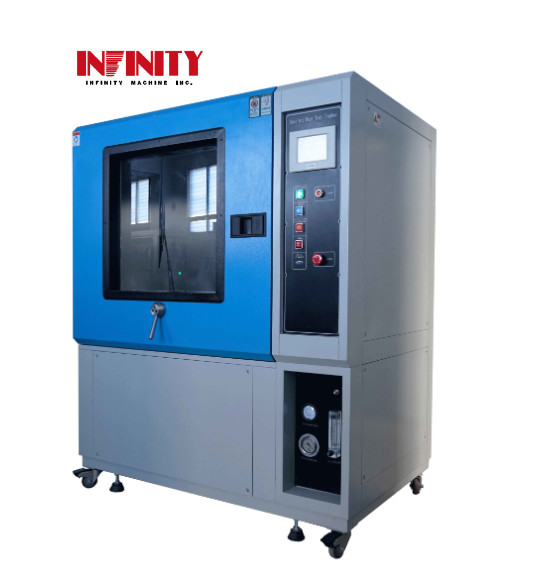

Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 0

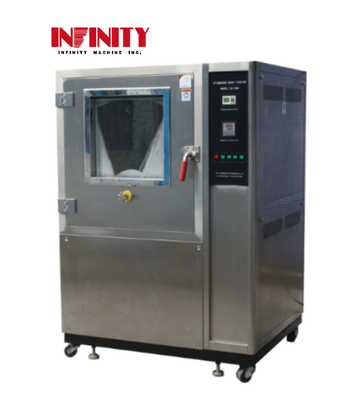

Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 1

Our workshop:

Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 2



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 3

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 4

Environmental Resistance Sand & Dust Test Chamber SC -1000 AC220V 50Hz 2.2KW ¢0.4mm 5



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.



7. How about the packing for machine, is it safely protected during transportation?

Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many

testing machines abroad by sea or by air without damage.



8. How to install and use the product?

The product is shipped with an operating instructions and video of English version.
