| Temp-range: | RT+10℃～200℃ ( Or 250℃ ) | Temp-variation: | ±1.0°C |
|---|---|---|---|
| Temp-accuracy: | 0.1°C | Timing Range: | 1～9,999min |
| Power: | 850W ~ 4000W | Power Supply: | AC220V 50Hz, AC380V 50Hz |
| Accessories: | 2sets ~ 4sets | Capacity: | 30L ~ 620L |
| High Light: | benchtop environmental chamber,environmental testing chamber |
||

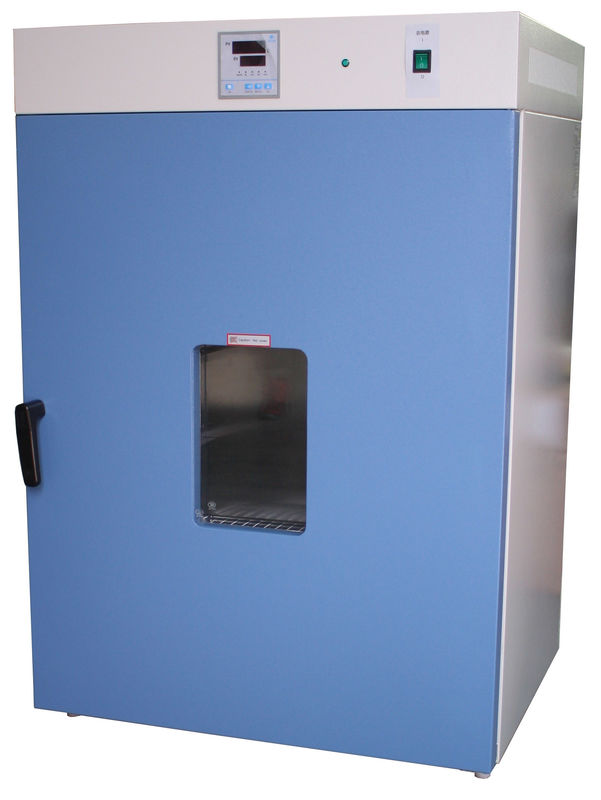

Customized Aging Test Chamber , High Temperature Test Oven 620 L Capacity
Purpose:
This machine for testing functions of heat endurance.
Features:
High temperature Tester is for testing functions of heat endurance.
Low price and high quality.
Standard:
GB-2423.2-89 ( IEC68-2-2 )
GJB360.8-87 ( MIL-STD-202F )
GJB150.3 ( MIL-STD-810D )
Specification:
| Model | DHG-9030A | DHG-9070A | DHG-9140A | DHG-9240A | DHG-9420A | DHG-9620A |
| Interior dim (WxDxH) mm | 340x320x320 | 450x400x450 | 550x450x550 | 600x500x550 | 640x585x1355 | 840x600x1355 |
| Exterior dim (WxDxH) mm | 620x530x490 | 740x618x490 | 840x670x730 | 880x720x930 | 920x750x1880 | 980x800x1880 |
| Capacity | 30L | 80L | 136L | 225L | 420L | 620L |
| Temp- range | RT+10℃～200℃ ( or 250℃ ) | |||||
| Temp- variation | ±1.0°C | |||||
| Temp- accuracy | 0.1°C | |||||
| Timing range | 1～9,999min | |||||
| Power | 850W | 1550W | 2050W | 2450W | 3100W | 4000W |
| Power supply | AC220V 50Hz or specified by user | AC380V 50Hz or specified by user | ||||
| Accessories | 2 Sets | 3 Sets | 4 Sets | |||
Picture:
