| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE, ISO |
| Model Number: | RS-8116-6A |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Drive: | Six Japanese Panasonic®AC Servo Motor | Reducer: | Six Japanese Shimpo® Planetary For Reducer |
|---|---|---|---|
| Test Speed: | 1~60rpm±0.5rpm | The Least Angle Display: | 0.10 |
| Diameter Of Rotary Disk: | Ø210mm | Dimension: | W1780xD860xH1600mm |
| Total Weight: | 555kg | Power: | AC220V 50Hz 12A |
| High Light: | bend test equipment,flex tester machines |
||

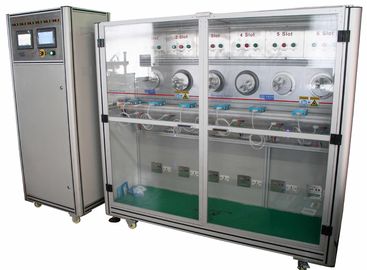

Low Noise Cable Bending Testing Machine With Panasonic Servo Motor Bending Test
Model: RS-8116-6A
Purpose:
It is suitable for bending resistance test on headphone cable, USB cable, multicore cable conductor, flat cable and signal line, etc. The test method is as follows: Firstly, clamp one end of the wire rod and fasten it to the rotation clamp. Then have it make a horizontal rotation with hanging load to evaluate whether wire rod conduction is good after numerous test cycles.
Feature:
Each of which adopts Japanese Panasonic® AC servo motor drive. They are positioned with high precision, with low noise and can be used for a long time. The test angle is ±1°. Each station adopts Japanese SHIMPO® planetary gear for slowing down with highly precise positioning.
Specification:
| Model | RS-8116-6A |
| System control | It adopts Japanese OMRON ®touch screen and MITSUBISHI®PLC, and each station works independently. |
| Impedance test module | It is equipped with impedance test module and color touch screen. |
| Drive | Six Japanese Panasonic®AC servo motor |
| Reducer | Six Japanese Shimpo® planetary for reducer |
| Test speed | 1~60rpm±0.5rpm |
| Test angle range | Commonly 0~±950 or 0~±1800, rotation angle of concentric jig is not limited. |
| The least angle display | 0.10 |
| Test cycles range | 1~999999 cycles |
| Diameter of rotary disk | Ø210mm |
| Weight | Each six of 100g, 225g,300g, 400g |
| Main unit dimension | W1780xD860xH1600mm |
| Control box dimension | W720xD500xH1700mm |
| Total weight | 555kg |
| Power | AC220V 50Hz 12A |
Dimension:
