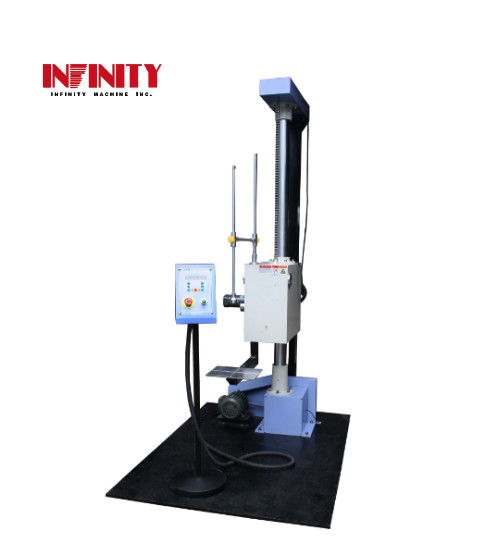

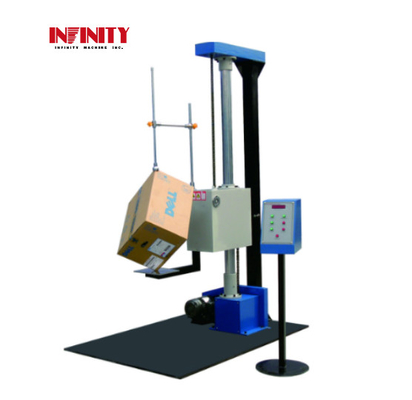

Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight

Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight

  • Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight
  • Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight
Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-315 / 320 / 330
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max Load: 100kg Max. Height: 3000mm
Height Accuracy: ≤2% Of The Setted Value Test Space: 800x600x1000mm
Angle Tolerance: ≤5° Dimension: 1700x1200x2515mm / 1700x1200x2835mm / 1700x1200x3235mm
Power Supply: AC380V 50Hz Or Specified By User Weight: 750kg / 800kg / 900kg
High Light:

packaging testing instruments

,

packaging testing equipment



Single Arm Package Testing Equipment for Drop Test 300~1500mm Hight



Model: RS-315 / 320 / 330



Purpose:



Package Testing Equipment is suitable for toys, electronics, electric appliance, communication, IT, furniture, gifts, ceramics and package, all this finished product or parts to do drop test, either drop of only product or drop with package, to assess the dropping impact-resistance or damage condition of the product in transporting.



Quoted standards: GB4757.5-84 JB/T7407-94 ISO2248-1995

Package- Dropping Test under Vertical Impact for Complete and Fully Loaded Package during transport.



Characteristics:



This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height. This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.



Specification:



 Model  RS-315  RS-320  RS-330
 Dropping height range  300~1500mm  300~2000mm  300~3000mm
 Display  Digital displayer
 Height accuracy  ≤2% of the setted value
 Maximum load  100kg
 Test space (LxWxH)  800x600x1000mm
 Angle tolerance  ≤5°
 Motor  1/2HP
 Dimension (WxDxH)mm  1700x1200x2515 1700x1200x2835 1700x1200x3235
 Weight  About 750kg About 800kg About 900kg
 Power supply  AC380V 50Hz or specified by user



Package:



Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight 0



Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight 1



Single Arm Package Testing Equipment for Drop Test , 300~1500mm Hight 2
