Single Arm Package Dropping Testing Machine GB4757.5-84 300~1500mm Hight

Single Arm Package Dropping Testing Machine GB4757.5-84 300~1500mm Hight

  • Single Arm Package Dropping Testing Machine GB4757.5-84 300~1500mm Hight
Single Arm Package Dropping Testing Machine GB4757.5-84 300~1500mm Hight
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-315
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Max Load: 100kg Dropping Height Range: 300~1500mm Adjustable
Testing Way: Against Side, Angle And Edge Dimension Of Equipment: 1755x1235x2415mm
Dimension Of Supporting Arm: 240x290x8mm Max Dimension Of Sample: W600xD800xH1000m
Power Of Lift Motor: 0.75KW Weight: 750kg
High Light:

drop weight tester

,

drop test equipment



Single Arm Package Dropping Testing Machine GB4757.5-84 300~2200mm Hight



Model: RS-315



Purpose:

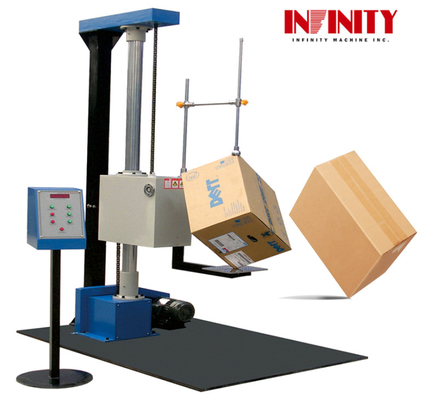

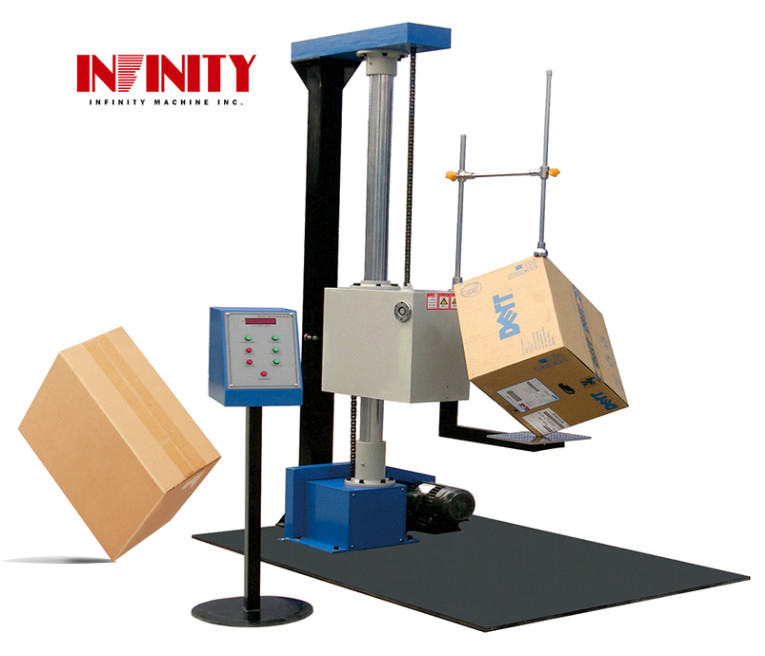

This equipment is specified for the free dropping testing against the side, angle and edge of packages. It has digital height display instrument and decoder is used to track the height, through which the dropping height can be precisely displayed, the measured dropping height has a deviation of less than 2% or 10mm comparing with preset dropping height. This equipment has structure of single arm combining with double props, it also has electrical driving, electrically controlled dropping and electrical lifting devices, easy for use; it has special hydraulic buffering device of which can largely extend the lifetime, stability and safety. Single arm structure has the convenience for sample location; the angle deviation from dropping angle against the impacted face is no more than 5degrees.



Specification:



 Model  RS-315
 Dropping height range  300~1500mm
 Display  Digital displayer
 Height accuracy  ≤2% of the setted value
 Maximum load  100kg
 Test space (LxWxH)  800x600x1000mm
 Angle tolerance  ≤5°
 Motor  1/2HP
 Dimension (WxDxH)mm  1700x1200x2515
 Weight  About 750kg
 Power supply  AC380V 50Hz or specified by user
