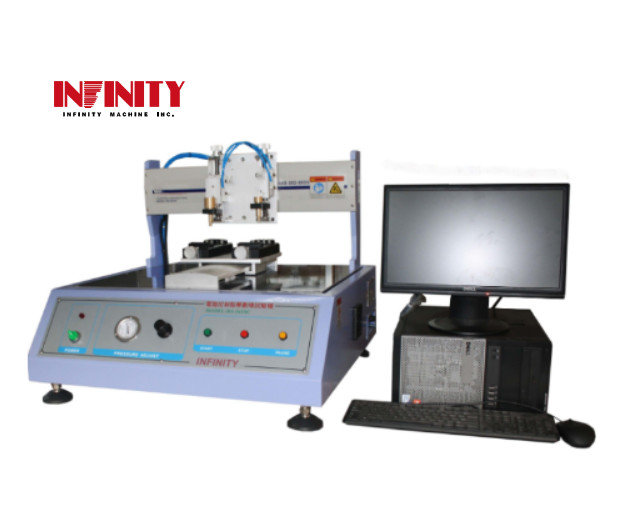

Name: 0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa
Brand: Infinity Machine International Inc.
SKU: RS-5610C
Price: 50,050.00 USD
Availability: InStock

Home Products Display Tester

0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa

Product Details:

Place of Origin:	Made in China
Brand Name:	Infinity Machine
Certification:	CE, ISO
Model Number:	RS-5610C

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Standard export wooden case with operation manual and video inside.
Delivery Time:	Shipped in 15 days after payment
Payment Terms:	D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 sets per month

Contact Now

Detailed Product Description

Controller:	Computer Control	X Axis Movement Range:	0~300mm (specified Before Order)
Y Axis Movement Range:	0~300mm (specified Before Order)	Positioning Accuracy:	0.05mm
Air Pressure:	≥0.5MPa	Dimension:	750x750x660mm
Weight:	About 120kg	Power Source:	AC220V 50Hz 5A Or Specified By User
Highlight:	super click tester , click speed tester

0 N - 15 N LCD / Touch Screen Super Click Tester Computer Control 0.5MPa

Model: RS-5610C

Purpose:

This tester is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.

Test Item:

1. Touching pen clicking test: 0-15N (or set).

2. Touching pen drawing test: drawing line on touching screen as setting.;

3. Mobile surface abrasion test: with alcohol / eraser as testing assistance.

Specification:

Model	RS-5610C (Computer Control)
X-axis Moving range	0~150mm or 0~300 (specified before order)
Y-axis Moving range	0~150mm or 0~300 (specified before order)
Z-axis click cylinder	0~20mm
Positioning accuracy	0.05mm
Moving speed	0~200mm/sec
Pressure range	80~1500gf (or specified)
Load	20g, 30g, 150g, 250g
Air pressure	≥0.5MPa
Dimension (WxDxH)	750x750x660mm
Weight	About 120kg
Power supply	AC220V 50Hz 5A or specified by user
