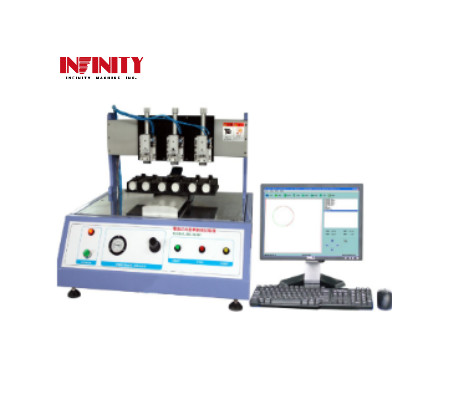

Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine

Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine

Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine

Product Details:

Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-5610C

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Controller: Touch Screen Control X Axis Movement Range: 0~150mm (specified Before Order)
Y Axis Movement Range: 0~150mm (specified Before Order) Z-axis Click Cylinder: 0~20mm
Positioning Accuracy: 0.05mm Dimension: 750x750x660mm
Weight: About 120kg Power Source: AC220V 50Hz 5A Or Specified By User
High Light:

lcd screen tester

,

click speed tester



Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine



Purpose:



This tester is used for pressing rolling, clicking, Drawing test for small LCD, touching screen, such as mobile phone.



Test Item:



Touching pen clicking test: 0-10N(or set).

Touching pen drawing test: drawing line on touching screen as setting.;

Mobile surface abrasion test: with alcohol / eraser as testing assistance.



Specification:



 Model  RS-5610( Touching screen Control )
 X-axis Moving range  0~150mm or 0~300 (specified before order)
 Y-axis Moving range  0~150mm or 0~300 (specified before order)
 Z-axis click cylinder  0~20mm
 Positioning accuracy  0.05mm
 Moving speed  0~200mm/sec
 Pressure range  80~1500gf (or specified)
 Load  20g, 30g, 150g, 250g
 Air pressure  ≥0.5MPa
 Dimension (WxDxH)  560x500x670mm
 Weight  About 120kg
 Power supply  AC220V 50Hz 5A or specified by user



Picture:



Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine



Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine

Computer Controlled LCD Touch Panel Tester , Touch Screen Click Scribing Test Machine
