ASTM D642 Carton Bursting Strength Cardboard Compression Package Testing Machine for Box Compressive Strength Test

Model: RS-8401

Purpose:

This tester is suitable for package of corrugated carton and cellular board and packaging container to do pressure test, deformation test and stacking test.

Test Standards: GB/T4857.4 GB/T4857.16 ISO2872, ASTM D642

Production Criterion: GB/T16491, TAPPI-T804, JIS-Z0212

Principle:

This tester adopts Japan servo motor and synchronous belt plus high-accuracy ball screw to drive the upper clamp to press; and through high-accuracy anti-explosion load cell, it can input the pressure(load) of specimen into the computer for data processing accurately, and can also print test data if necessary.

Features:

High stability:

Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.

High precision:

Adopt highly precise explosion-proof loadcell,repeat tolerance: ±0.01%F.S.

Professional control software:

Servo motor control and computer professional software control. can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .

Specification:

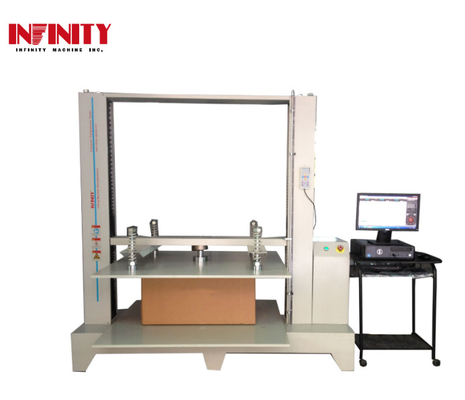

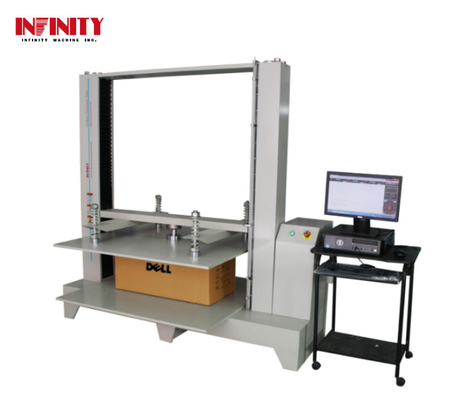

Picture:

Shipping package:
