Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity

Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity

  • Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity
Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8000A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 100KN, 200KN, 300KN Stroke: 650mm, 800mm (optional)
Effective Width: 400mm , 600mm (optional) Software: Closed-loop Control Software
Motor: AC Servo Motor Main Unit Weight: 1500 Kg
Dimension: 1220x720x2200mm Power Supply: AC220V 15A Or Specified By User
Highlight:

plastic testing instruments

,

hydraulic adhesion tester



Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity



Model: RS-8000A



Purpose:



This testing machine is suitable for adhesive tape, rubber, plastic, sponge, waterproof materials, electric wire & cable, textile, net rope, non-woven fabrics etc, nonmetal materials and metallic thread, metal foil, steel plate and metal rod to do tensile, compression, bending, peeling, cutting, tearing shearing tests.



Computer control style RS-8000A ( It is used for spot test in production line, can do many data analysis and print the test report, also can used for material’s cyclic test and holding test ).



Applications:



Use in testing Adhesive tape, motorcar, ceramics, composite materials, architecture, food, medical equipment, metal wire, rubber, plastic, textile, wood, communication.



Specification:



 Model  RS-8000A
 Capacity (optional)  100KN, 200KN, 300KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa, Lbf/In2, Kgf/mm2
 Load resolution  1/500,000
 Load accuracy  ±0.25%
 Load range  Rangless
 Stroke (exclude the grips)  650mm, 800mm (optional)
 Effective width  400mm , 600mm (optional)
 Test speed  0.001~300mm/min
 Speed accuracy  ±0.5%
 Displacement resolution  0.001mm
 Software  Closed-loop control software
 Motor  AC servo Motor
 Transmission rod  High accuracy ball screw
 Main unit dimension (WxDxH)  1220x720x2200mm
 Main unit weight  1500 Kg
 Power Supply  AC220V 15A or specified by user

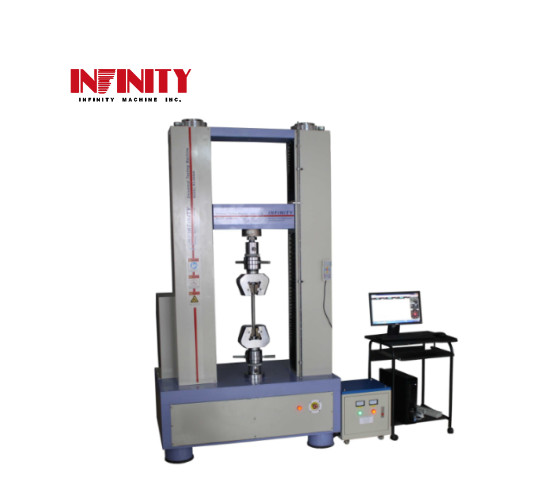

Picture:



Electronic Plastic Testing Machines , Plastic Testing Instruments 300KN Capacity 0
