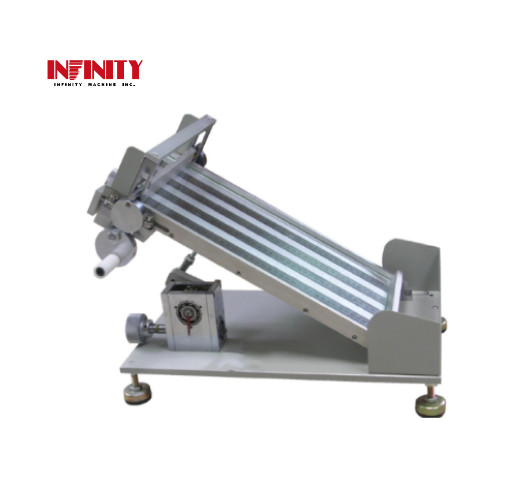

Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic

Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic

  • Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic
  • Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic
Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8226
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Standard: GB/T4852 CNS11888 Testing Sample: 4 Pcs
Rolling Ball: ∮1/32” ~1” Packed In A Wooden Box Angle Of Inclination: 20°~40°adjustable, Normally 30°
Test Plate: Glass Thickness: 5mm Aided – Running Distance: L 100mm
Dimension: 480x300x430mm Weight: 17kg
High Light:

plastic testing equipments

,

plastic testing instruments



Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic



Model: RS-8226



Application:



Turn the adhesive surface of specimen upward and place it onto the test plate inclining 30° fix two ends with tape and weight respectively. Release freely the steel balls from large one down to small one is sequence on the top end of testing plate. Record the number of steel ball which can stay on the tape for least 5 seconds.



Specification:



 Model  RS-8226
 Standard  GB/T4852 CNS11888
 Testing sample  4 pcs
 Rolling ball  ∮1/32” ~1” packed in a wooden box
 Angle of inclination  20°~40°adjustable, Normally 30°
 Test plate  glass thickness: 5mm
 Aided – running distance  L 100mm
 Dimension  480x300x430mm
 Weight  17kg

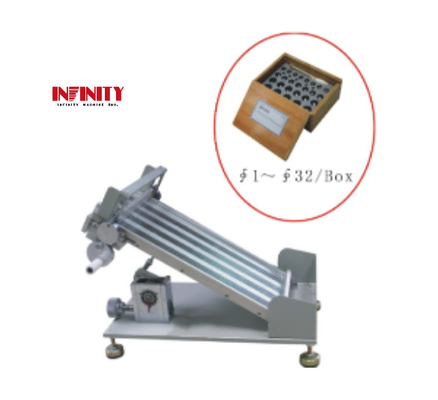

Rolling Balls:



Universal Adhesive Shear Tensile PVC Pipe Testing Equipment For Plastic 0
