Place of Origin: | Made in China |
Brand Name: | Infinity Machine |
Certification: | CE, ISO |
Model Number: | RS-DP-P Series |
Minimum Order Quantity: | 1 set |
---|---|
Price: | Negotiable |
Packaging Details: | Standard export wooden case with operation manual and video inside. |
Delivery Time: | Shipped in 15 days after payment |
Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200 sets per month |
Max Load: | 200kg, 300kg | Dropping Height Range: | 0 - 1400mm |
---|---|---|---|
Drop Height: | 0 - 1000mm | Testing Way: | Edge, Side, Corner |
Machine Weight: | 2400kg, 2800kg, 3400kg | Power Consumption: | 2.5KVA |
Power Supply: | AC 380V ,15A Or Specified By User | Working Condition: | 25°± 3°, 55~85% RH |
Highlight: | packaging testing equipments,packaging testing equipment,Drop Test Machine Double Track |

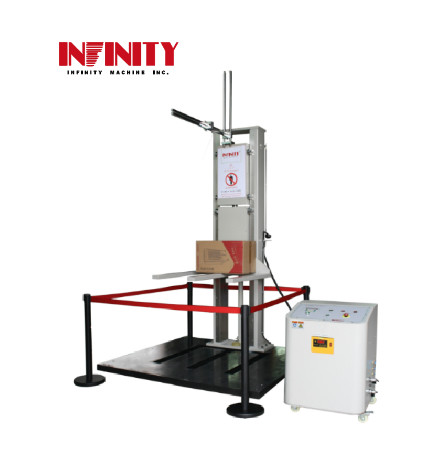

High Precise Packaging Drop Test Machine Impact Resistance Test Double Track
Model: RS-DP-P Series
Application:
This machine is to evaluate the anti-impact strength in the process of shipping and carrying.
Specialties:
1. Testing support table adopts double track, and oil-pressure ascending system and the height is shown by digital display.
2. It is suitable for drop testing of the bigger size package, easy and fast for loading and unloading the testing samples on the support table.
3. It can test the package edges, sides and corners at very low testing height, the testing height can be started from zero.
4. Base board:(Impact side)High stiffness,high flatness,the deformation will not beyond 0.1mm on any 100 mm2 area of the base board where load with 10kg static weight.
5. Ascending and descending control device: The dropping height is shown by digital display, the difference between real dropping height and digital display height is within +/-2%.The dropping height is defined as the distance between the lowest point of testing sample before dropping and the impacted table.
Specification:
Model | RS-DP-P-10 | RS-DP-P-12 | RS-DP-P-14 | |
Max Load (kg) | 200kg | 200kg | 300kg | |
Dropping height range (mm) | 0~1000mm | 0~1200mm | 0~1400mm | |
Max size of testing sample | L(mm) | 1000 | 1200 | 1200 |
W(mm) | 1000 | 1200 | 1200 | |
H(mm) | 1000 | 1200 | 1200 | |
Base size | L(mm) | 1900 | 1900 | 2300 |
W(mm) | 1600 | 1800 | 2200 | |
H(mm) | 60 | 60 | 60 | |
Testing way | Edge, side, corner | |||
Size of Testing support table |
L(mm) | 1900 | 1900 | 2300 |
W(mm) | 1800 | 1800 | 2200 | |
H(mm) | 2800 | 3100 | 3400 | |
Machine weight (kg) | 2400 | 2800 | 3400 | |
Power consumption (KVA) | 2.5 | |||
Power supply | AC 380V ,15A or specified by user | |||
Working condition | 25°± 3°, 55~85% RH |
Picture:
Our workshop:
Technical Support and Services:
We are committed to providing our customers with exceptional technical support and services.
We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.
Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.
We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.
Packing and Shipping:
Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.
The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.
FAQ:
1. How to choose the most suitable Compression testing machine?
Our professional team will give you the best suggestion as long as you tell us what kind of test you need
to do and the required specification.
2. What’s the delivery term?
At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20
working days after deposit receipt. If you are in urgent need, we can consider making special
arrangement for you.
3. Do you accept customization service?
Yes, of course, we can not only offer standard machines, but also customized machines according to
your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.
4. Can we visit your factory before order?
Yes, warmly welcome to visit our factory.
5. Do you have customers of our country before?
Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,
Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,
Iran, Brazil...and so on.
6. How about your warranty?
Generally, our warranty is one year. Within the warranty period, we can offer technique support and
part parts change, necessarily, our engineers may go to your place for better service.
7. How about the packing for machine, is it safely protected during transportation?
Our machine is packed by standard export wooden carton, it won’t be damaged. We’ve delivered many
testing machines abroad by sea or by air without damage.
8. How to install and use the product?
The product is shipped with an operating instructions and video of English version.
