Bi-Directional Fabric Air Permeability Test Equipment ASTM D737 Professional

Bi-Directional Fabric Air Permeability Test Equipment ASTM D737 Professional

Bi-Directional Fabric Air Permeability Test Equipment  ASTM D737 Professional

Product Details:

Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IN-3013

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Pressure Measurement Range: 1 - 4000Pa Measurable Air Permeability: 0.2 - 30000mm/s
Measurement Error: ≤±2% Measurable Fabric Thickness: ≤15mm
Interface: Bi-directional Test Function Power Supplyof Sample Platform: AC 220V 50Hz Or Specified By User
Dimension: 550×650×1100mm Weight: 80Kg
High Light:

packaging testing equipments

,

packaging testing equipment


Bi-Directional Fabric Air Permeability Test Equipment ASTM D737 Professional



Model: IN-3013


Purpose:

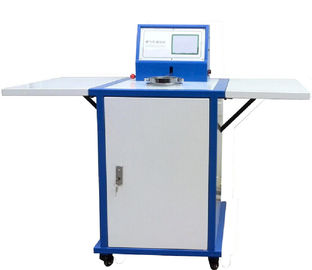

Digital air permeability tester is a professional instrument testing air permeability used for testing various slice materials including fabric, thin film, paper, non-woven fabrics and filter material, etc.


Standard:



ASTM D737, ASTM D3574, AFNORG07-111, BS5/636,DIN53/887, EDANA 140.1,EN ISO7/231, JISL1, 096-A, TAPPI T251, GB/T5453



Specification:



 Model  IN-3013
 Pressure measurement range  1-4000Pa self-setting pressure drop
 Measurable air permeability  0.2-30000mm/s
 Measurement error  ≤±2%
 Measurable fabric thickness  ≤15mm
 Air volume regulation  dynamic regulation for data feedback
 Constant value circle of specimen  area  5cm2, 20cm2, 50cm2, 100cm2, four pieces
 Constant value circle of specimen  diameter  Ф50mm(≈19.6cm2)Ф70mm(≈38.5cm2)
 Nozzle  totally 11
 Data handling capacity  ≤5000 times test
 Data output  High-definition touch screen display, A4 Chinese  print, USP computer
 Interface  bi-directional test function
 Power supply  AC 220V 50Hz or specified by user
 Power consumption  2000W
 Weight  Weight:80Kg
 Dimension  550×650×1100mm(L×W×H)
 Weight  100kg
