Tissue Handle O Meter Softness Tester 1mN Resolution Environmental

Tissue Handle O Meter Softness Tester 1mN Resolution Environmental

  • Tissue Handle O Meter Softness Tester 1mN Resolution Environmental
Tissue Handle O Meter Softness Tester 1mN Resolution Environmental
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: IN-3012
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Measuring Range: (10~1000) MN Test Speed: 1.2mm/s
Test Time: 15s Resolution: 1mN
Accuracy: ±1% Narrow Width Of Sample Platform: 5mm、6.35mm、10mm、20mm
Dimension: 570×415×200(L×W×H) Weight: About 33Kg
High Light:

packaging testing equipments

,

packaging testing instruments

,

Tissue Handle O Meter Softness Tester


Tissue Handle O Meter Softness Tester 1mN Resolution Environmental

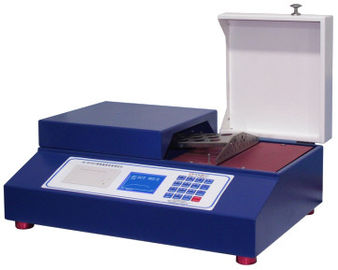

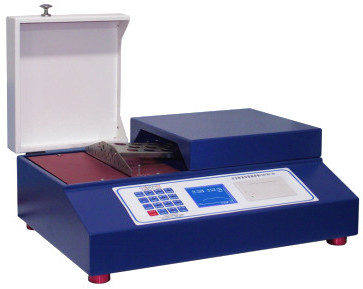

Model: IN-3012


Purpose:



Softness tester is a tester simulating hand feel softness, it is designed referring to American Handle-o-Meter instrument principle according to relevant regulations of national standard GB8942 “measurement of paper softness”. It is mainly used for softness test for flaky soft materials including middle to high class toilet paper, tabacco sheet and scrim, etc.


Standard:



GB/T8942,QB/T1060,ASTM D2923,ASTM D6828-02,TAPPI T498,INDA IST 90.3,EDANA WSP 90.3



Specification:



 Model  IN-3012
 Measuring range  (10-1000)mN
 Test speed  1.2mm/s
 Test time  15s
 Resolution  1mN
 Accuracy  ±1%
 Pressed depth of measuring head  8 +0.5 mm;
 Narrow width of sample platform  5mm, 6.35mm, 10mm, 20mm
 Parallelism error of sample platform slots  ≤0.05mm
 Dimension  570×415×200(L×W×H)
 Weight  about 33Kg
