| Place of Origin: | Made in China |
| Brand Name: | Infinity Machine |
| Certification: | CE |
| Model Number: | IN-3001 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard export wooden case with operation manual and video inside. |
| Delivery Time: | Shipped in 15 days after payment |
| Payment Terms: | D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 sets per month |
| Measuring Range: | 150-6000kpa | Accuracy: | ≤±0.5% |
|---|---|---|---|
| Resolution: | 0.01kpa | Deformation Error: | ≤1mm |
| Clamping Force: | ＞690kpa （adjustable） | Unit Conversion: | Kg/cm2、kpa、lbf/in2 |
| Printout: | Modular Thermal Printer | Weight: | 55kg |
| Highlight: | packaging testing equipments,packaging testing instruments |
||

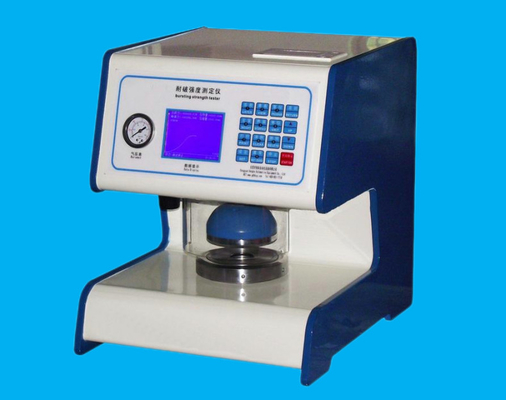

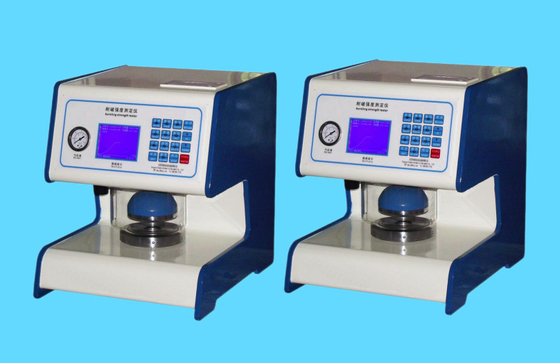

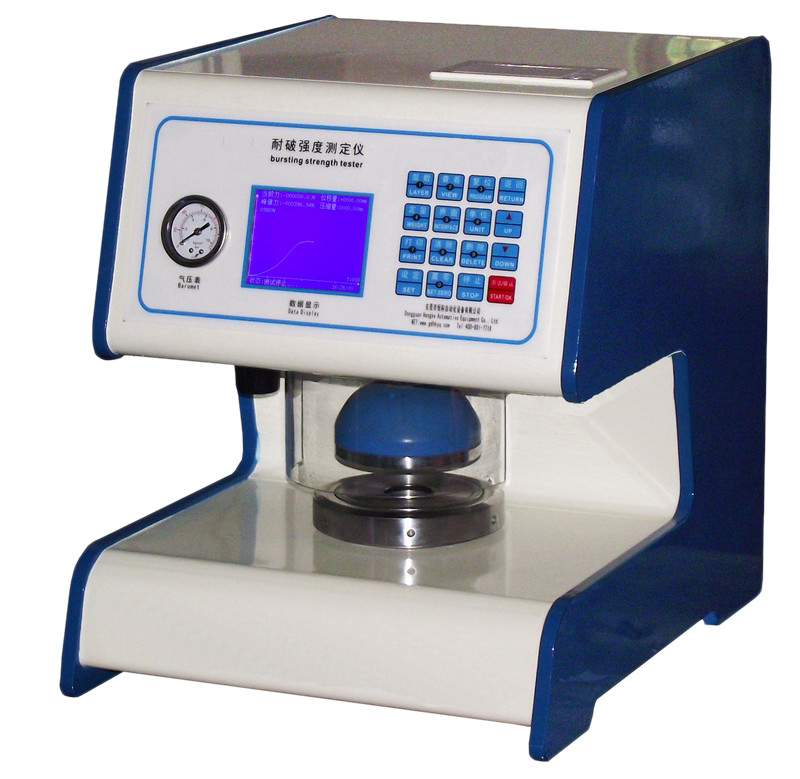

Corrugated Box Package Testing Equipment Bursting Strength Testing Machine
Model: IN-3001
Purpose:
Bursting strength tester for corrugated board is used for testing bursting strength of corrugated board and corrugated carton. It is suitable for paper board manufacturer, carton manufacturer, carton use enterprise and scientific research institutions, etc.
Standards:
GB/T 6545,QB/T 1057 ,GB 10739
Specification:
| Model | IN-3001 |
| Measuring range | 150~6000kpa |
| Accuracy | ≤±0.5% |
| Resolution | 0.01kpa |
| Deformation error | ≤1mm |
| Concentricity of upper and lower plate | ≤0.25mm |
| Pressure of adhesive-film raised plate |
at 10mm, (170-220)kPa, at 18mm,(250-350)kPa |
| Oil supply speed | 175±5ml/min |
| Pressure plate diameter | upper plate:31.5±0.5mm, lower plate:31.5±0.5mm |
| Human-computer interface | 4.0inLCD, displaying curve analysis chart |
| Clamping force | ＞690kpa (adjustable) |
| Unit conversion | Kg/cm2,kpa,lbf/in2 |
| Printout | modular thermal printer |
| Working environment | temperature(20±10)℃, humidity＜85% |
| Dimension | 360*420*510mm |
| Weight | 55kg |
- Installation and commissioning services to ensure proper setup and operation of the Digital Bursting Strength Tester
- On-site training for operators and maintenance personnel to ensure proper use and maintenance of the equipment
- Remote technical support to address any issues or questions that may arise during operation
- Preventative maintenance programs to help extend the life of the Digital Bursting Strength Tester and minimize downtime
- Calibration and validation services to ensure accurate and reliable test results
- Repair and replacement services to address any equipment failures or malfunctions
Our team of experienced technical support and service professionals are dedicated to providing timely and effective solutions to any issues or questions you may have. Contact us to learn more about our Digital Bursting Strength Tester support and services.
