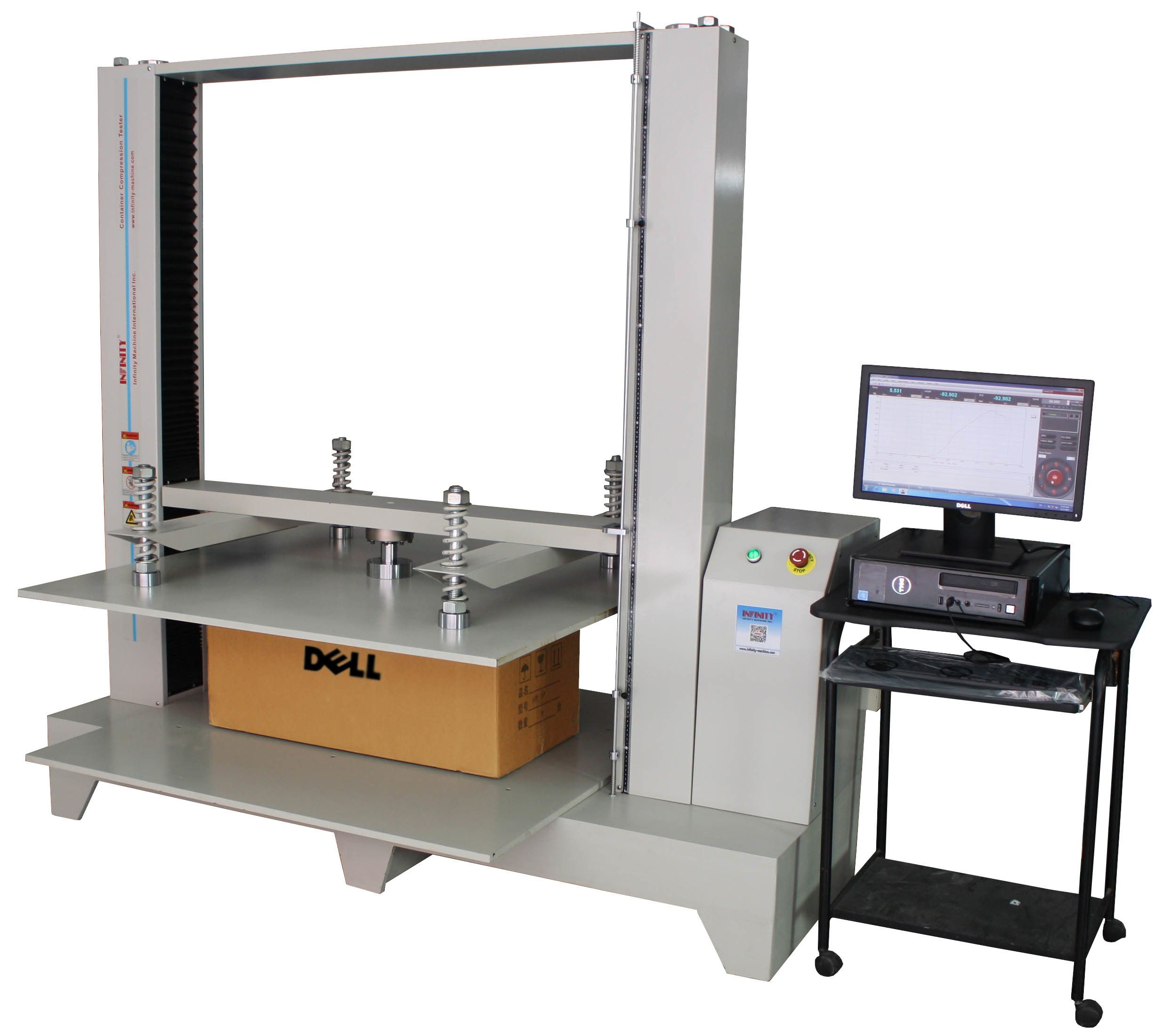

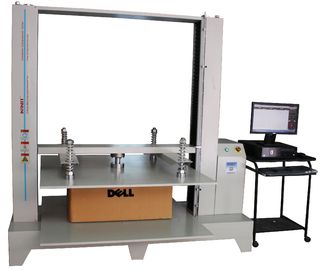

Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control

Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control

Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control
Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control
Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control
Product Details:
Place of Origin: Made in China
Brand Name: Infinity Machine
Certification: CE, ISO
Model Number: RS-8401
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: Standard export wooden case with operation manual and video inside.
Delivery Time: Shipped in 15 days after payment
Payment Terms: D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets per month
Contact Now
Detailed Product Description
Capacity: 10KN, 20KN, 50KN Test Space: 1000x1000x1200mm, 1200x1200x1200mm Or 1500x1500x1500mm
Stroke Resolution: 0.001mm Software: Special Close-loop Control Software
Motor: AC Servo Motor Dimension: 1750x1000x2000mm Or 1950x1200x2000mm
Weight: 1250Kg Or 1550kg Power Supply: AC220V 5A Or Specified By User
High Light:

packaging testing equipments

,

packaging testing instruments

,

Compression Package Testing Equipment 10KN

Compression Package Testing Equipment 10KN / 20KN / 50KN Servo Control

Model: RS-8401



Application:



Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.



Test standards:



GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.



Features:



High stability:

Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.



High precision:

Adopt highly precise explosion-proof loadcell,repeat tolerance: ±0.01%F.S.



Professional control software:

Servo motor control and computer professional software control. can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .



Specification:



 Model  RS-8401
 Capacity (optional)  10KN, 20KN, 50KN
 Unit (switchable)  N, KN, Kgf, Lbf, Mpa,Lbf/In2, Kgf/mm2
 Load resolution  1/250,000
 Load accuracy  ±1%
 Test space  1000x1000x1200mm, 1200x1200x1200mm or 1500x1500x1500mm
 Test speed  0.001~200mm/min
 Stroke resolution  0.001mm
 Software  Special close-loop control software
 Motor  AC servo Motor
 Dimension (WxDxH)  1750x1000x2000mm or 1950x1200x2000mm
 Weight  1250Kg or 1550kg
 Power supply  AC220V 5A or specified by user



The test introduction:



1. The compression test.

This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.



The test setting interface.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 0



The testing interface and real-time testing graph. (The test graph can be saved and to edit the test report.) There are two graphs can be displayed, Force vs displacement, Force vs Time.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 1



The testing report.

The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 2



2. The stacking test.



The stacking test setting and program interface.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 3



The stacking testing interface and the testing real-time graph.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 4



The test report.

The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 5

Our workshop:

Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 6



Technical Support and Services:

We are committed to providing our customers with exceptional technical support and services.

We offer a comprehensive range of services to ensure that your product is subjected to rigorous testing and quality control.

  • We provide technical advice and assistance, from initial inquiry to product delivery.
  • We offer a variety of customized services to fit your specific needs.
  • We offer installation and set-up services.
  • We offer training and maintenance services.
  • We offer spare part and consumable supply services.

Our team of specialists is dedicated to providing the highest quality technical support and services for ourr test machines. If you have any questions or need assistance, please feel free contact us.



We focus on providing excellent technical support and service to our customers to ensure that your products undergo rigorous testing and quality control. We offer a full range of services, from initial technical advice and assistance to installation, setup, training and repair services after delivery. We also offer a variety of customized services to meet your specific needs and ensure that your equipment can achieve the best performance. In addition, we provide spare parts and consumables supply services to ensure the continuous operation of your equipment. Our team of experts is dedicated to providing the highest quality technical support and service for our test machines to meet your various needs. If you have any questions or need help, please feel free to contact us and we will be happy to help you.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 7

Packing and Shipping:



Our test machine will be packed in appropriate cardboard boxes and/or crates. The products will be shipped using standard shipping methods such as air freight, sea freight, or ground transport. Any special shipping requirements should be discussed with the supplier prior to the purchase.

The customer is responsible for all import duties, taxes and/or other fees associated with the goods. The supplier will provide all necessary documentation to facilitate customs clearance.



Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 8

Compression Package Testing Machine Equipment 10KN 20KN 50KN Servo Control 9



FAQ:



1. How to choose the most suitable Compression testing machine?

Our professional team will give you the best suggestion as long as you tell us what kind of test you need

to do and the required specification.



2. What’s the delivery term?

At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20

working days after deposit receipt. If you are in urgent need, we can consider making special

arrangement for you.



3. Do you accept customization service?

Yes, of course, we can not only offer standard machines, but also customized machines according to

your request. Don’t hesitate to tell us your requirement, we will try our best to meet your needs.



4. Can we visit your factory before order?

Yes, warmly welcome to visit our factory.



5. Do you have customers of our country before?

Now our testing machines have been sold to more than 30 countries, like USA, Canada, Russia,UK,

Italy, Germany, European Union, India, Pakistan, Philippines, Singapore, Thailand and Vietnam,

Iran, Brazil...and so on.



6. How about your warranty?

Generally, our warranty is one year. Within the warranty period, we can offer technique support and

part parts change, necessarily, our engineers may go to your place for better service.
