Products: Mobile Phone Cellphone Telephone Drop Tester Model: DT3030
Max. Test Load: 2kg Drop Height: 0 - 300mm (or Specified)
Test Speed: 5 - 25 Cycles/min Test Cycle: 1~999,999times (cycle)
Weight: About 80kg Dimension (WxDxH): 850x370x850mm
High Light:

environmental testing equipment

,

benchtop environmental chamber

,

Microdrop Testing Machine For Mobile Applications

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Machine Telephone Cellphone Drop Tester Machine



Model: DT3030

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 0 APPLICATION:



Light drop test machine is apply for repeating dropping (light dropping) testing of mobile phone, tablets, electronic dictionary, etc. To check if the products’ parts and function normal or not after many times light dropping.



Control of the testing system is via an Infinity-machine proprietary software program designed specifically for materials testing. Setting test parameters, operating the system, collecting and analyzing test data is done through the software program.

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 1

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 0 Specialties:

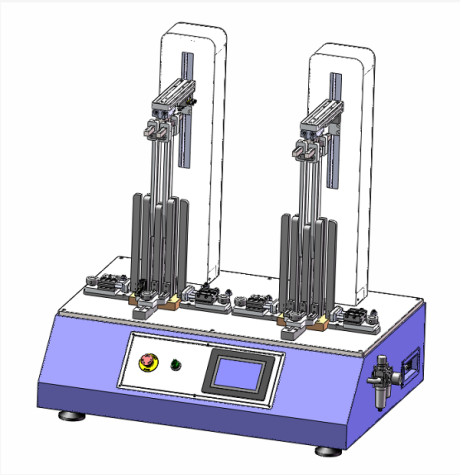

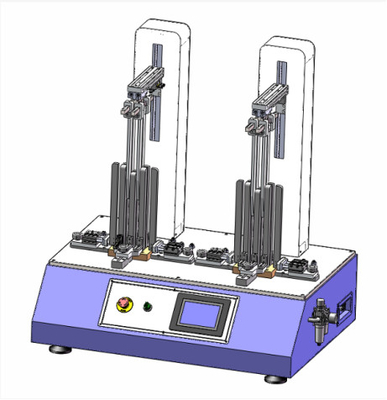

Microdrop tester equipment adopts Japanese Panasonic AC Server motor to control up and down, Japanese SMC vacuum sucker to absorb products (small product dropping adopts SMC pneumatic cylinder finger to clamp), SMC cylinder homing product, touch panel controlling server motor , touch panel controlling magnetic valve which controls cylinder movements as absorption, stretching and retraction, etc.

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 3Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 4

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 0 Specification:

Allowable maximum sample size W300xL300xD30mm
Allowable minimum sample size W60xL100xD8mm
Allowable product weight 100~2500gf
Dropping height range 50~300mm
Dropping way Faces sides and corners
Dropping medium Steel base, wooden base and marble base
MGPM16-30 stroke of location cylinder 30mm
Up & down driving way servo driving and synchronous belt transmission
Stroke of MHZ2-25D clamping cylinder 14mm
Force of MHZ2-25D clamping cylinder 104N(max)
ZPT20UN-B8 adsorption of vacuum sucker 2.13kgf(500mmHg)
Test cycle setting 1~999999times
Testing speed 2~15times/min
Air supply ≧0.6MPa
Weight About 285kg
Power AC100V 8A
Emergency stop time 100ms



Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 0 Principle of Operation:

Operators merely choose dropping mode and pickup mode in touch panel, i.e. setting test times, dropping height, pickup height, cylinder location time, pickup time, press start test, touch panel controls server motor lifting, electromagnetic valve controls cylinder movements, stretching out or retraction, and suckers suck or( pneumatic cylinder clamps) samples to conduct dropping test.

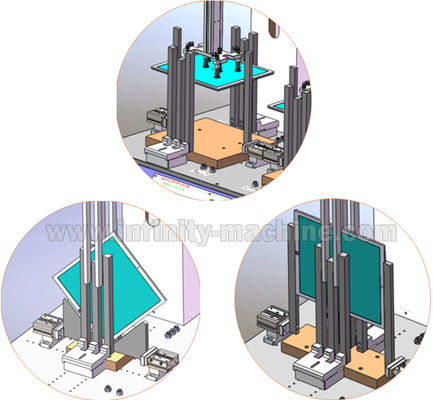

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 0 Test Introduction

1. Faces drop test.

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 8



2. Sides drop test

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 9









3. Corner test

Microdrop Testing Machine For Mobile Applications Camera Micro Drop Test Telephone Cellphone Drop Test 10
