Name: Test Apparatus for Cyclic Bending Multi-conductor Cable ISO 19642-2 Cables Flexing Fatigue Tester for Wire Fatigue Testing
Brand: Infinity Machine International Inc.
SKU: C5092
Price: 50050.00 USD
Availability: InStock

Home Products Wire Fatigue Tester

Test Apparatus for Cyclic Bending Multi-conductor Cable ISO 19642-2 Cables Flexing Fatigue Tester for Wire Fatigue Testing

Product Details:

Place of Origin:	Made In China
Brand Name:	Infinity Machine Inc.
Certification:	ISO
Model Number:	C5092

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Clear sheet+sponge+wood carton
Delivery Time:	35-40 days after order confirmed
Payment Terms:	T/T
Supply Ability:	50 set per month

Contact Now

Detailed Product Description

Product Name:	Test Apparatus For Cyclic Bending Multi-conductor Cable ISO 19642-2 Cables Flexing Fatigue Tester For Wire Fatigue Testing	Model:	C5092
Application:	Cables Cyclic Cable Bending Test Machines Is Suitable For The Bending Testing Of The Multi-wires Cable, Communication Cable, Earphone Cable Etc.	Test Standard:	SFF 8417 Multi Conductor Cable Flex Cycle Test Procedure; ISO 19642-2:2023 Automotive Cables Cyclic Bending Test
Test Amount:	2 Pcs	Test Speed:	10~60rpm±2cpm (Frequent User Of 13rpm)
Angle Range:	±90° / 0°~180°	Testing Cycles:	1～999,999times
Power:	Single Phase AC220V Or 120V±10%, 50/60Hz	Warranty:	1 Year
Highlight:	multi-conductor cable bending tester , ISO 19642-2 flexing fatigue tester , wire fatigue testing apparatus

C5092 Cable Bending Fatigue Test Apparatus — ISO 19642-2

Model C5092

The C5092 Cable Bending Fatigue Test Apparatus is engineered to evaluate the bending fatigue performance of a wide range of cable types used in automotive and industrial applications. Fully compliant with ISO 19642-2 standards, it is specifically designed for the SFF-8417 Multi Conductor Cable Flex Cycle Test procedure.

Purpose and Application

The cyclic bending test machine assesses bending fatigue performance across multiple cable categories, including:

Multi-conductor cables
Communication and data cables
Robot cables
Automotive cables
Earphone wires
Machine cables

The testing methodology involves short-circuit connecting one end of the cable, fixing it to a rotation plate, applying weights, and performing left–right rotational movements. This allows operators to assess cable conductivity after repeated cycles and evaluate overall cable quality.

Compliance Standards

ISO 19642-2 — Road vehicles — Automotive cables — Part 2: Test methods
ISO 19642-2:2019 & ISO 19642-2:2023
ISO 14572
GB/T 25085.2—2024
SFF 8417 — Multi Conductor Cable Flex Cycle Test Procedure

Testing Configuration

Technical Specifications

Model	C5092
Test Amount	2 PCS
Test Speed	10–60 rpm ±2 cpm (frequent user setting: 13 rpm)
Angle Range	90°
Min Display Angle	±1°
Testing Cycles	1 – 999,999 times
Guide Wheel Radius	R13, R19, R25, R37, R55, R69, R82, R107 (changeable) — 4 sets
Diameter of Rotation Plate	275 mm
Weights	100 g, 200 g, 500 g, 1000 g (or customized)
Dimension (W × D × H)	1280 × 724 × 1320 mm
Weight	350 kg
Power Supply	Single phase AC220V / AC120V, 50/60 Hz, 5 A — or specified by user

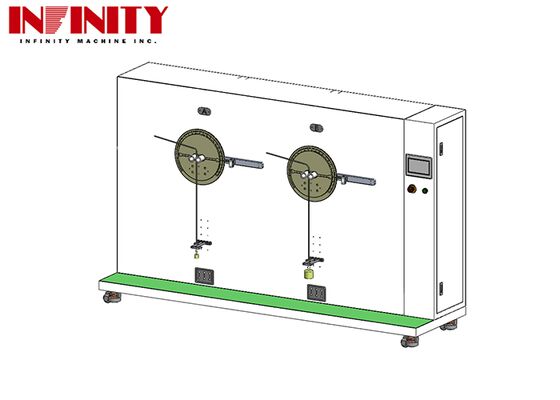

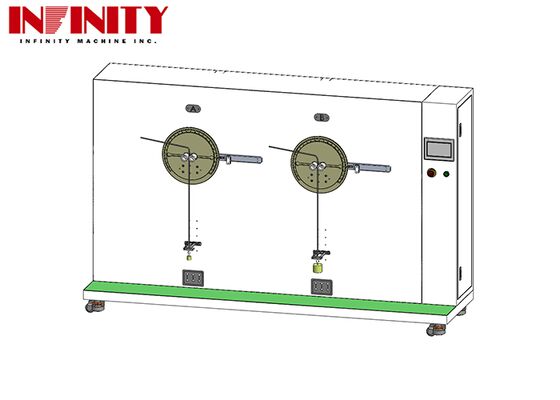

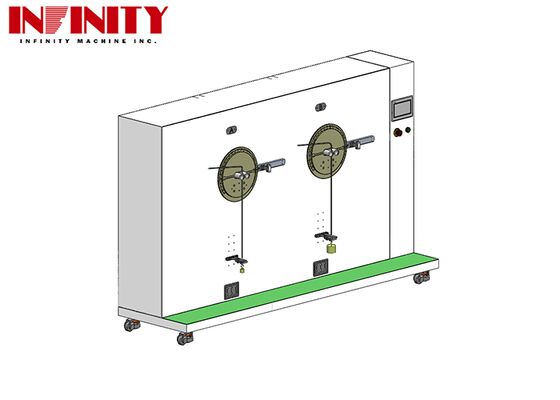

Product Appearance

Packaging and Shipping

Product Packaging

The automotive cables cyclic bending testing equipment is packaged in wooden crates to prevent damage during transportation. Each crate features clear shipping marks for easy identification.

Shipping

We partner with reliable shipping companies to ensure safe handling and timely delivery. Customers receive tracking information to monitor shipment status throughout the transportation process.
