Product Description:

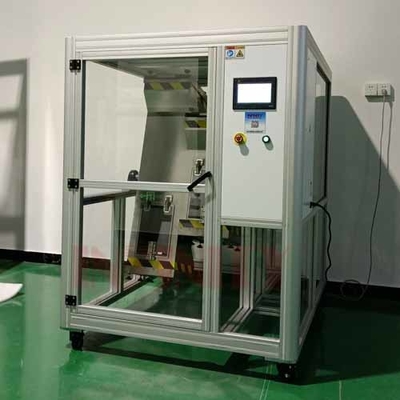

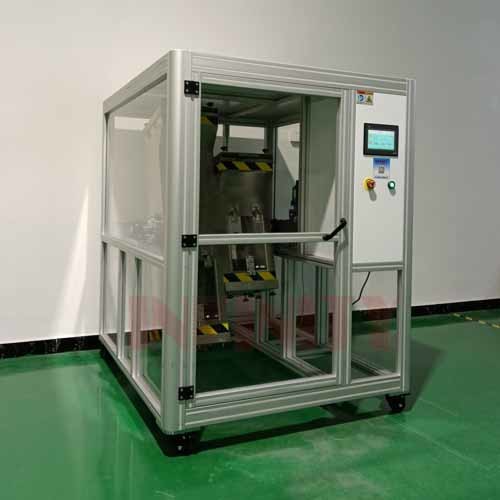

The Drop Testing Machine is a highly advanced Drop Test Rig designed for conducting precise and reliable dropping tests on various products. With its Touch Panel Control method, operators can easily navigate through settings and parameters to ensure accurate and consistent test results.
Weighing around 380kg, this Dropping Test Equipment is sturdy and durable, providing a stable platform for conducting drop impact resistance tests. Its robust construction and Protective function ensure the safety of both the machine and the products being tested.
One of the key features of this Drop Testing Machine is its utilization of a Panasonic Servo Motor Drive for setting the rotation speed. This feature enables the machine to stop at any position with low noise levels and smooth operation, allowing for precise and controlled testing procedures.
Operators can customize the test cycle settings according to their specific requirements, with a wide range of options from 1 to 999,999 times. This flexibility allows for comprehensive testing scenarios to evaluate the impact resistance and durability of products under various conditions.
Overall, the Drop Testing Machine is a reliable and efficient tool for conducting drop tests on a wide range of products. Its advanced features, sturdy construction, and precise control capabilities make it an essential instrument for quality assurance and product development processes.
Technical Parameters:
| Dimension |
W1260xD1560xH1700mm |
| Feature 4 |
Adopt Safety Door Design To Ensure Safety |
| Protective function |
Yes |
| Barrel materials |
Acrylic, Wooden, Steel |
| Dropping medium |
Steel Plate, Wooden Board, Marble Board (Can Be Replaced As Needed) |
| Drop Height |
1000mm, 500mm |
| Testing speed |
1~40 Cycles / Min (customized) |
| Feature 3 |
Using Touch Screen Control, You Can Set The Number Of Tests, Test Speed, And Have A Power-down Memory Function. It Will Automatically Stop When The Set Number Of Times Is Reached. |
| Test Weight |
2Kg (Max) Or Customized |
| Control method |
Touch Panel Control |
Customization:
Product Customization Services for the Impact Drop Testing Device:
Brand Name: INFINITY
Model Number: IB1151A IB1151B IB1151C
Place of Origin: MADE IN CHINA
Certification: ISO
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Standard export wooden carton
Delivery Time: 35 days after order confirmed
Payment Terms: By Telegraphic Transfer
Supply Ability: 200 sets / month
Test cycle setting: 1～999999 times
Feature 1: Designed With Dual Stations To Meet Simultaneous Testing Of 500 And 1000mm Drop Heights.
Control method: Touch Panel Control
Test standard: IEC 60068-2-31
Test Weight: 2Kg (Max ) Or Customized
