Place of Origin: | Made In China |
Brand Name: | Infinity Machine |
Certification: | CE ISO |
Model Number: | IZ1008 |
Minimum Order Quantity: | 1 |
---|---|
Price: | Negotiate |
Packaging Details: | Clear sheet+sponge+wood carton |
Delivery Time: | 20-30 days after order confirmed |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Ability: | 200SETS PER MONTH |
Product Name: | Fully Automatic Rupture Strength Testing Machine | Model: | IZ1008 |
---|---|---|---|
Capacity: | 0~60kg/ Cm² (0.01kg/ Cm² ) | Pressure Accuracy: | ±0.5%F.S |
Units Can Be Switched: | Kgf/cm²;Mpa;psi;Lbf/in² | Sensing Method: | Pressure Converter |
Power: | Electronic | Warranty: | 1 Year |
Highlight: | LCD Rupture Strength Testing Machine,Fully Automatic Rupture Strength Testing Machine,Packaged Products Rupture Strength Testing Machine |
LCD Digital Display Fully Automatic Packaged Products Rupture Strength Testing Machine
Model:IZ1008
Product introduction:

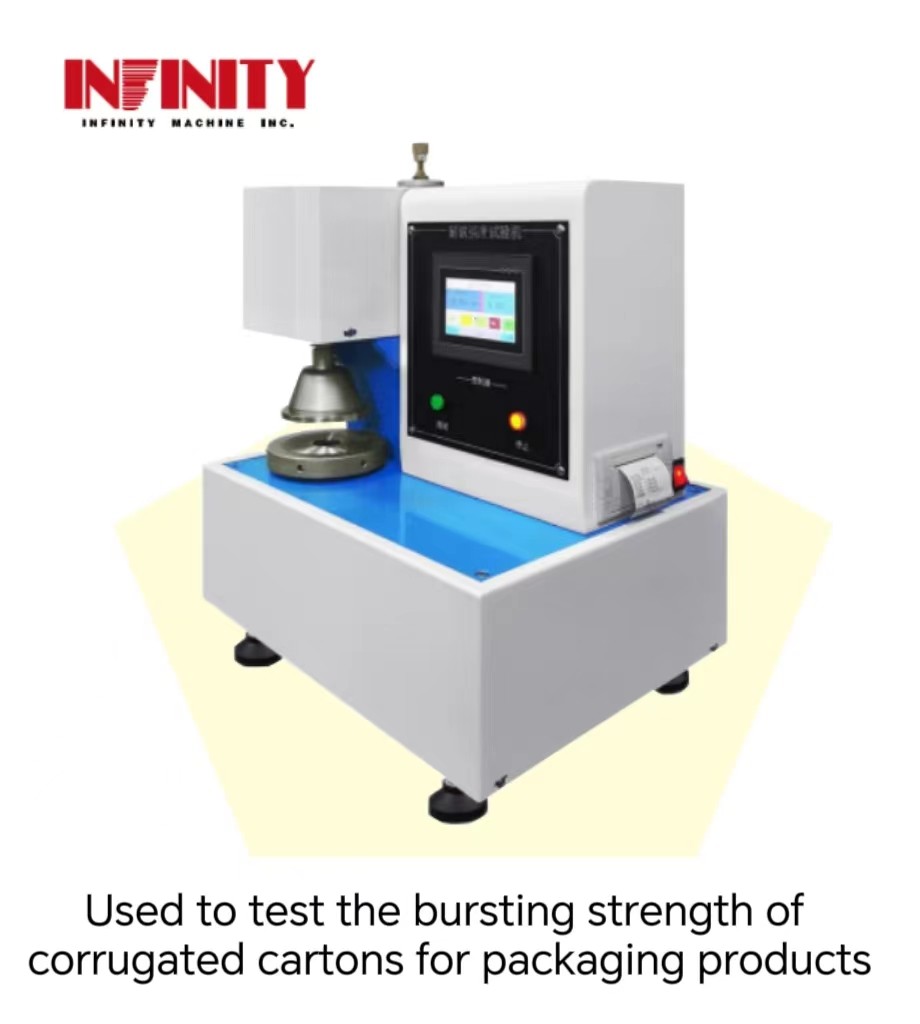

This machine is suitable for electronics, electrical appliances, wires, hardware, handbags, food, shoe making, furniture and other industries. It is used to test the bursting strength of corrugated cartons for packaging products. It can also test samples of synthetic leather, cloth and other materials. .

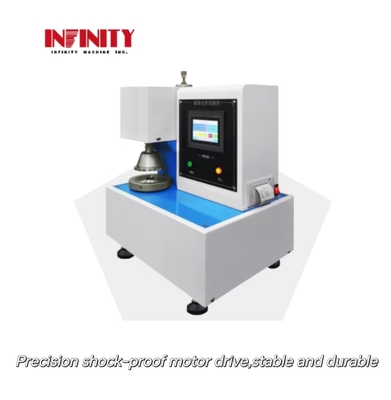

This machine is driven by a shockproof motor and driven by a worm gear. It pressurizes the test piece at a pressurization rate of 170±10ml/min, and displays the rupture value of the test piece through a digital pressure gauge (LOAD CELL).
The design complies with ISO-2759, GB/T-6545, JIS-P8112, L1018, ASTM-D2210, TAPPI-T403 standard requirements.
Performance characteristics:
Technical Parameters:
Sensing method | Pressure converter |
Control method | Color touch screen |
Capacity |
0~60kg/ cm² (0.01kg/ cm² ) |
Pressure accuracy | ±0.5%F.S |
Units can be switched | kgf/cm²;Mpa;psi;Lbf/in² |
Specimen clamping pressure | >430Kpa |
Hydraulic oil | Glycerin 85﹪,Distilled water15﹪ |
Horsepower | Shockproof motor 1/4HP |
Gas source | ≧6 kgf/cm2 |
Volume:WxDxH | 380×480×560mm |
Weight | Around 65kg |
Power supply | AC220V 50Hz(or specify) |
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
