Product Name: | Carton Drop Test Machine | Model: | ID4150 |
---|---|---|---|
Test Method: | Edge, Side And Corner | Dropping Height Range: | 300~1500mm |
Maximum Load: | 50kg | Display: | Touch Panel Displayer |
Power: | Electronic | Warranty: | 1 Year |
Highlight: | 50kg Load Drop Testing Machine,Falling Drop Impact Tester,Single Wing Drop Impact Tester |

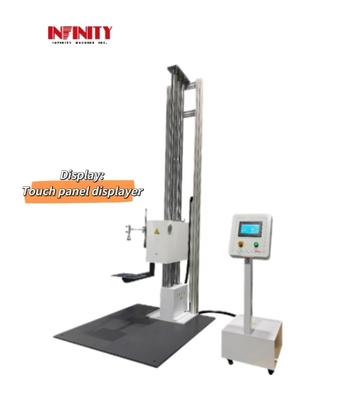

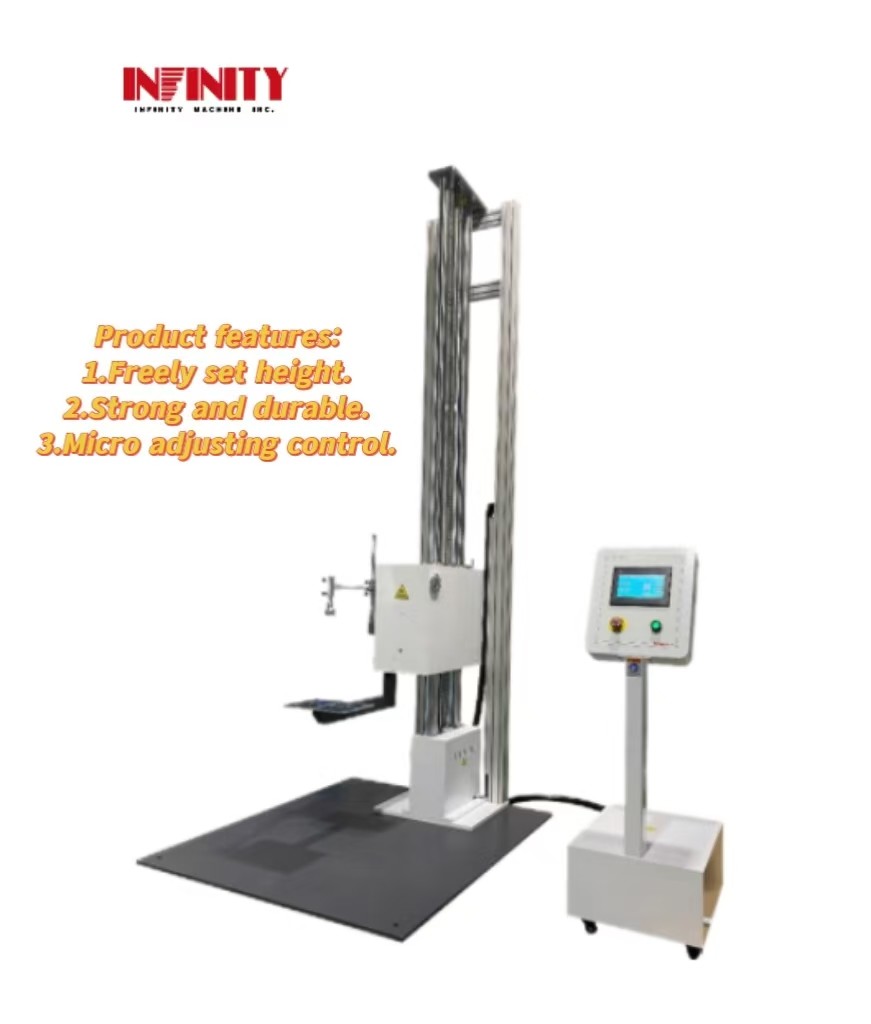

Single Wing Carton Package Drop Testing Machine 50kg Load Falling Drop Impact Tester
Model:ID4150
Application:
This tester is suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.
Specialties:
1.This tester is with structure design of single arm and double poles: this design can conquer the accident dropping in the Pneumatic design when power is suddenly cut off or the air source is interrupted. It can be up and down stably and no trembling in the process of up and down.
2.Support arm is with electronic control resetting, no need hand resetting, which can avoid the accident by hand resetting operation.
3.Support arm is designed to be Electro withdrawing, and assisted by the pulling spring, which can make sure the testing samples can be free dropping impact by sudden withdrawing of the support arm, the difference between real impact speed and free dropping impact speed is within±1%.
4.Multi-functional sample supporter: Can rapidly fix the different size package to test the package edges, sides and corners.
5.Impacted base board is steel, and with flat surface.
6.Control box:
1) Touch panel display design: Can display the current height of testing supporter in the process of up and down, the difference between real height and the display is within +/-2%.
2) Height setting control: Micro adjusting control, can rapidly set to the needed testing height.
7.The improved drop tester has lower noise and more convenient to operation.
Specification:
Items |
Specifications |
Dropping height range |
300~1500mm |
Display |
Touch panel displayer |
Height accuracy |
≤2% of the settled value |
Maximum load |
50kg |
Test space (LxWxH) |
1050*1050*1050mm |
Angle tolerance |
≤5° |
Motor |
Panasonic Servo control motor |
Dimension (WxDxH) |
1400*1500*2250 |
Weight |
About 500kg |
Power supply |
220V±10% 50Hz, Single Phase |
Related product recommendation:
1.Tumble Drop Tester:This device is suitable for rotary drop testing of various small portable electronic products such as mobile phones, smart tablets, etc. After multiple drops, the ability of the product to withstand rotary drops can be evaluated.
2.Repreated Slight Drop Tester:This machine is suitable for repeated micro drop testing of electronic products such as mobile phones, tablets, laptops, e-books, etc. Intended to simulate the testing of products that are lightly dropped onto surfaces such as desktops, metal surfaces, marble slabs, etc. during use, in order to evaluate the impact of slight drops on the overall product performance, the durability of the shell, and the resistance of the internal structure of the product to light drops.
3.Directional drop testing machine:This device is suitable for drop testing of mobile phones, tablets, and various small consumer electronic products. It can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.
Support and Services:
Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.
Product Packaging:
The Drop Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
