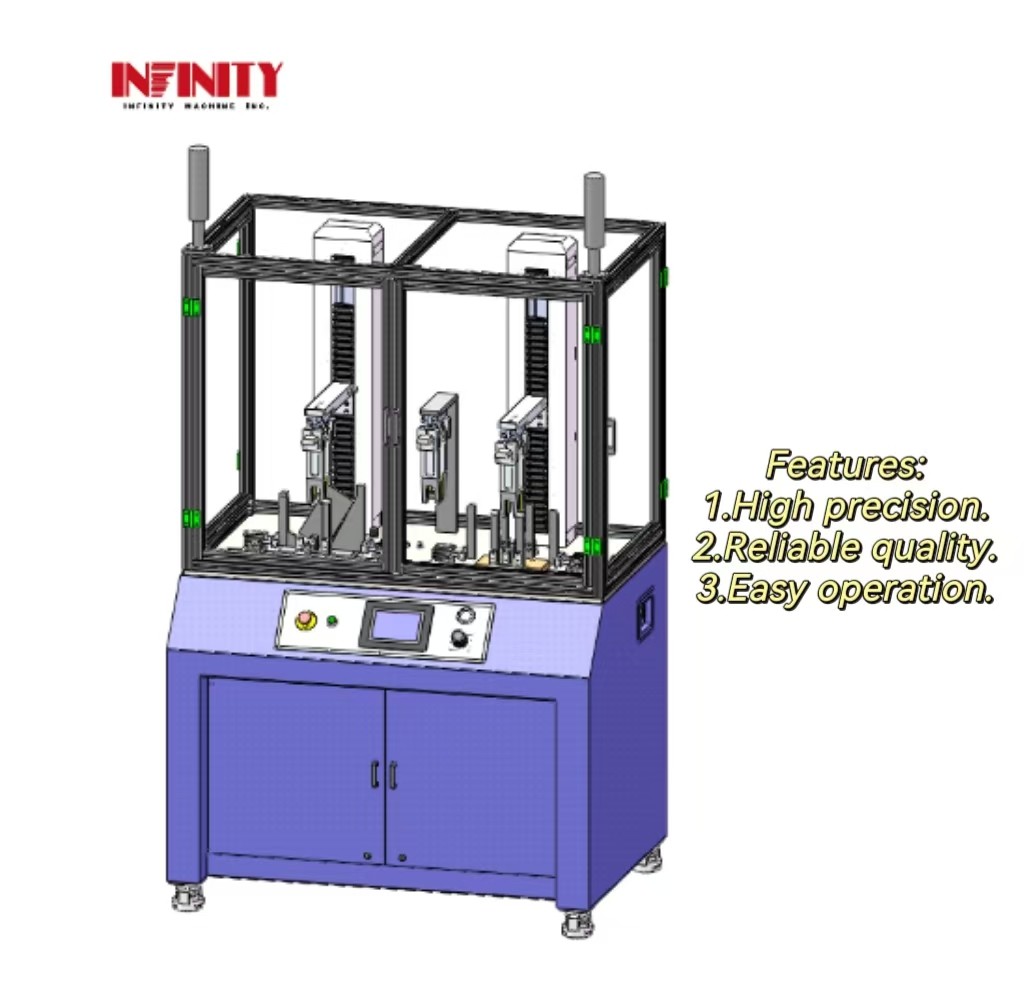

Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing

Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing

  • Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing
  • Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing
  • Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing
Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: ID2020
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description
Product Name: Repeated Slight Drop Test Machine Model: ID2020
Application: This Machine Is Suitable For Repeated Slight Drop Tests On Electronic Products Such As Mobile Phones, Tablets, Notebooks, And E-books. Feature: It Can Complete The Drop Test On 6 Sides And 4 Corners Of The Product.
Test Station: 2 Sets Drop Height: 1~300mm ( Adjustable )
Power: Electronic Warranty: 1 Year
Highlight:

Easy Operation Repeated Drop Tester

,

Mobile Phone Repeated Drop Tester

,

Simulated Repeated Drop Tester

                Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing

                                                                                        Model Number:ID2020

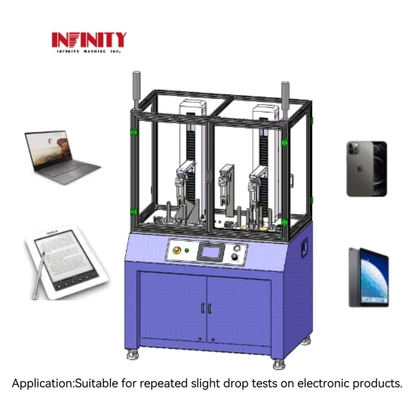

Application:

This machine is suitable for repeated slight drop tests on electronic products such as mobile phones, tablets, notebooks, and e-books. The test is designed to simulate a product being lightly dropped onto a desktop, metal surface, marble board and other media during use to evaluate the impact of a slight drop on the performance of the entire product, the durability of the casing, and the resistance of the product's internal structure to light drops.

Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing 0

Action principle:

The servo motor drives the upper clamp (clamping jaw) to descend to pick up the product to be tested. When it rises to the set drop height, the clamping jaw opens and the product is released to complete the free fall. Then the positioning cylinder arranges the product to the clamping jaw for picking up again. position, the servo motor drives the upper clamp (clamping cylinder) down to clamp the test piece, rises and releases, and the test piece falls freely, and this is repeated until the set number of times.



Features:

  • It can complete the drop test on 6 sides and 4 corners of the product.
  • The Japanese Panasonic servo motor is used as the driving source for the rising and falling test products, and is equipped with a precision double-acting cylinder for positioning the test piece. The quality is reliable and durable.
  • It can realize repeated drops of laptops, mobile phones and other products to test the impact resistance of products dropped from a certain height.
  • Using SMC pneumatic components and professional control methods, the test speed and consistency are greatly improved.
  • Omron color LCD touch screen and Mitsubishi PLC programmable controller for action control, English and Chinese interface, easy to operate.
  • The manual function pre-sets the action function to facilitate adjustment of each action connection for accurate positioning.
  • A servo motor is used to position the drop height with a height accuracy of 0.1mm.

Specification parameter:

Model

ID2020

Test station

2 sets

Test Weight

2Kg (max )

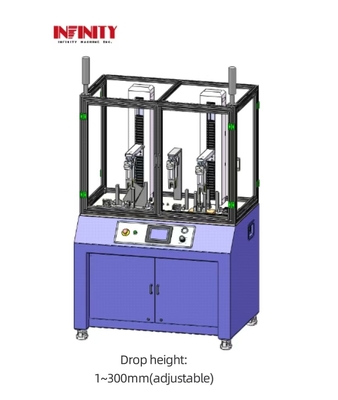

Drop Height

1~300mm ( adjustable )

Test cycle setting

1~999999times

Testing speed

1~30 cycles/min

Air supply

≧0.5MPa

Drop medium

steel plate, wooden board, marble board (can be replaced as needed)

Dimension

W1186xD866xH1853mm

Weight

About 282kg

Power

AC 220V±10%, 50Hz or specified by user



Realize the drop Angle diagram:

Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing 1



Dimensions:(mm)

Easy Operation Mobile Phone Repeated Drop Tester Simulated Repeated Drop Testing 2



Related recommendation:

1.Carton drop test machine:This tester is suitable for testing the packing situation after free dropping and to evaluate the anti-impact strength in the process of shipping.

2.Tumble drop test machine:Used for rotary drop testing of various small portable electronic products such as mobile phones, smart tablets, etc. After multiple drops, to evaluate the product's ability to withstand rotary drops.

3.Directional drop test machine:Suitable for drop testing of mobile phones, tablets, and various small consumer electronic products, it can accurately impact the parts that need to be tested to evaluate the product's ability to withstand drops.



Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Drop Testing Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
