GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester

GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester

  • GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester
  • GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester
  • GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester
  • GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester
GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IZ1012
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200SET PER MONTH
Contact Now
Detailed Product Description

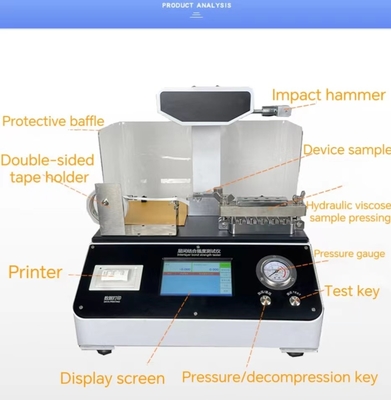

Product Name: Paper And Cardboard Interlayer Bonding Strength Testing Machine Model: IZ1012
Specimen Size: 25.4*25.4mm Sample Holding Force: 0~400N (Adjustable)
Impact Angle: 90° Release Mode: Fully Automatic Release
Power: Electronic Warranty: 1 Year
Highlight:

Paperboard Layer Bonding Strength Tester

,

Paperboard Layer Bonding Tester

,

Internal Bonding Strength Tester for Paperboard

                              Paperboard Layer Bonding Strength Tester Used for Thin Film Composite Materials Test

                                                                                         Model: IZ1012





Application :

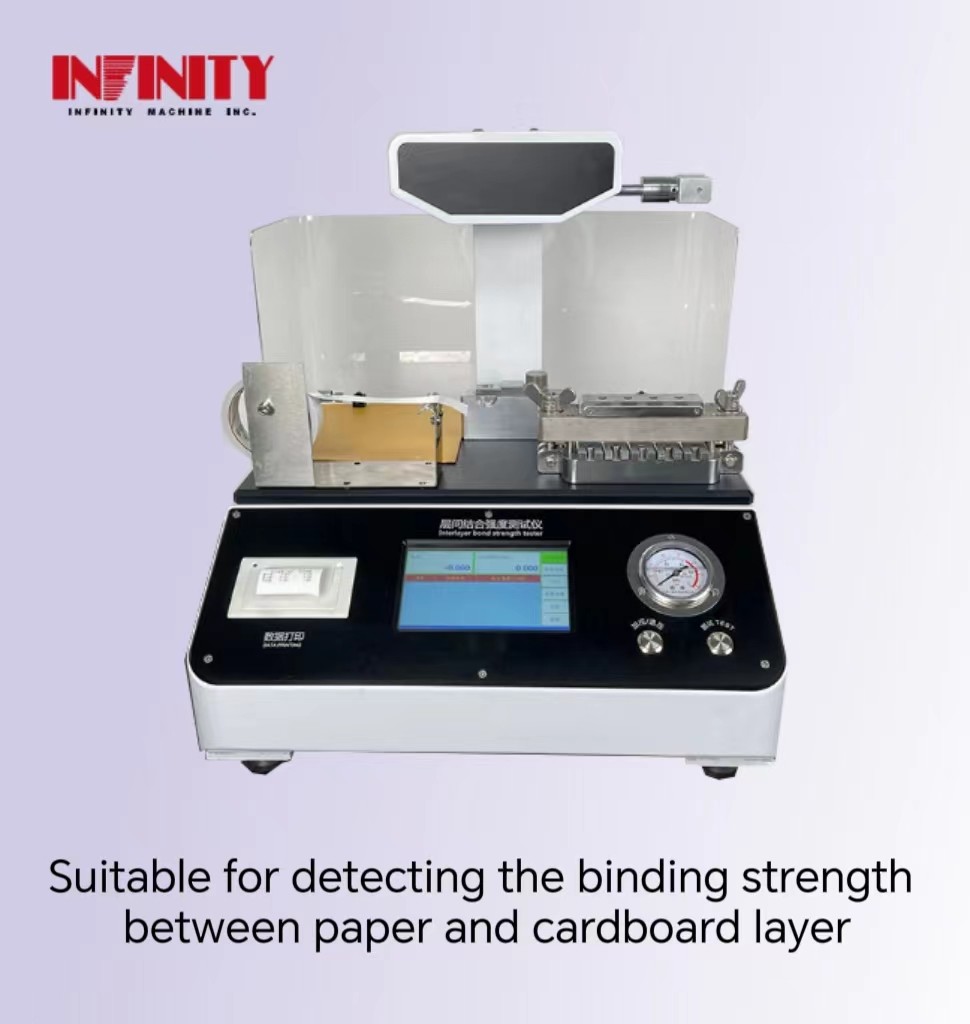

The equipment is suitable for detecting the binding strength between paper and cardboard layer (between the paper layer and the combination within the paper), and can be used to detect the internal binding strength of paper composite materials, film composite materials and other sheet materials.



Test standards:

GB/T 25203,ASTM T569 pm-00



Specification parameter:

Specimen size:

25.4*25.4mm

Sample holding force: 0~400N (Adjustable)
Impact Angle: 90°
Resolution ratio: 0.001lbf/in²
Release mode: Fully automatic release
Measuring range: Grade A file: (0~500)J/M²; Class B: (500~1000) J/M²
Indicating error: The A file: ± 1 J/M²; The B gear: ± 2 J/M²
Unit: J/M²,lbf/in² interchange
Interface: 3.2in LCD display, real-time display of test data
Printout: Modular integrated thermal sensitive printer
Equipment size: 500m×400cm×650mm
Weight: 70KG
Power: AC220V 50Hz (or specified)





Special Sampler (Optional) :

Sampling size: 25.4mm * 140mm                               Parallel of two long sides: 0.015mm

Thickness of sampling: (0.05~1.2) mm                      Overall dimension: About 580 * 150 * 620mm

Weight: 15kg

GB/T 25203 Paper Bonding Testing Paperboard Layer Bonding Strength Tester 0



Our services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
