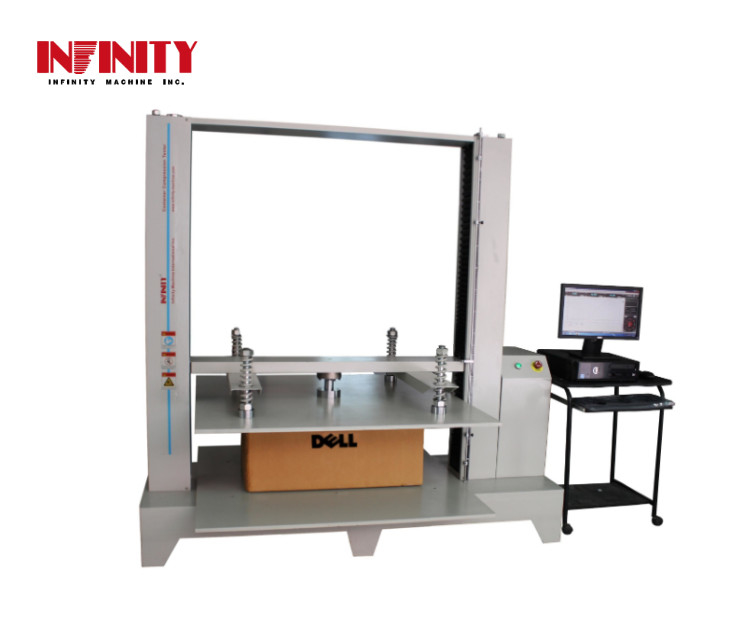

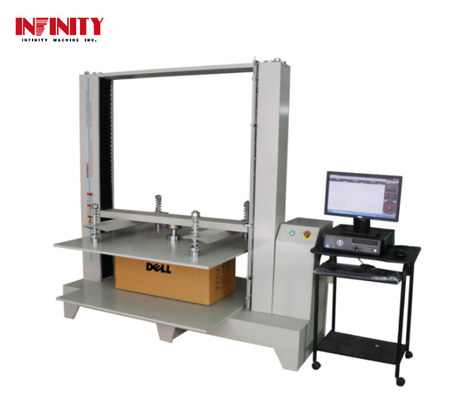

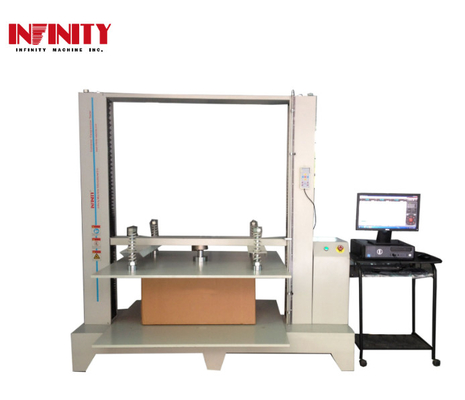

Package Compression Strength Test Machine for Compression Stacking Test

Package Compression Strength Test Machine for Compression Stacking Test

  • Package Compression Strength Test Machine for Compression Stacking Test
  • Package Compression Strength Test Machine for Compression Stacking Test
  • Package Compression Strength Test Machine for Compression Stacking Test
Package Compression Strength Test Machine for Compression Stacking Test
Product Details:
Place of Origin: Made In China
Brand Name: Infinity Machine
Certification: CE ISO
Model Number: IF1552
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Clear sheet+sponge+wood carton
Delivery Time: 20-30 days after order confirmed
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 sets / month
Contact Now
Detailed Product Description
Product Name: Package Container Compression Tester Capacity (optional): 20KN (2T)
Motor: AC Servo Motor Load Accuracy: ±1%
Unit (switchable): N, KN, Kgf, Lbf, Mpa,Lbf/In², Kgf/mm² Test Standards: GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.
Power: Electronic Warranty: 1 Year
Highlight:

Stacking Compression Strength Test Machine

,

Stacking Package Compression Strength Test Machine

,

Package Compression Strength Test Machine

                Package Compression Strength Test Machine Suitable for Compression Stacking Test

                                                                                 Model:IF1552



Application:

Apply for compression resistance, deformation, stacking test of package container such as corrugated paper box and honeycomb box, and also the wooden package box.



Test standards:

     GB/T4857.4, GB/T4857.16, ISO2872, ASTM D642, TAPPI-T804, JIS-Z0212.

Package Compression Strength Test Machine for Compression Stacking Test 0

Features:

1.High stability:

Adopt servo motor driver and gapless roll ball screw for transmission to eliminate noise and resonation; with timing belt transmission to get a accuracy location.

2.High precision:

      Adopt highly precise explosion-proof load cell, repeat tolerance: ±0.01%F.S.

3.Professional control software:

Servo motor control and computer professional software control. It can do the compression strength test and the stacking test and get precise result. The software has the testing real-time graph, can set the test force, test displacement, and the force holding. Can output the professional test report with test results and test graphs, test report can be printed and also converted to be PDF format .



Specification:

Model IF1552
Capacity (optional) 20KN (2T)
Unit (switchable) N, KN, Kgf, Lbf, Mpa,Lbf/In², Kgf/mm²
Load resolution 1/250,000
Load accuracy ±1%
Test space 1000x1000x1200mm
Test speed 0.001~200mm/min
Stroke resolution 0.001mm
Software Special close-loop control software
Motor AC servo Motor
Dimension (WxDxH) 1710x1000x2000mm
Weight 1250kg
Power supply AC220V 50HZ 5A or specified by user



   The test introduction

   1. The compression test.

This tester is with professional computer software control, can output the testing curve and the test report. The test can meet the standards ISO2872, ASTM D642, TAPPI-T804.

1.   1.1The test setting interface.Package Compression Strength Test Machine for Compression Stacking Test 1



1.2 The testing interface and real-time testing graph.

The test graph can be saved and to edit the test report.Package Compression Strength Test Machine for Compression Stacking Test 2

There are two graphs can be displayed, Force vs displacement, Force vs Time

1.3 The testing report.

The parameters in the test report can be edited, the testing result is auto created.

The testing report can be printed and also can be converted to be PDF format.

Package Compression Strength Test Machine for Compression Stacking Test 3

2.The stacking test.

   2.1 The stacking test setting and program interface.

Package Compression Strength Test Machine for Compression Stacking Test 4

   2.2. The stacking testing interface and the testing real-time graph.

Package Compression Strength Test Machine for Compression Stacking Test 5

2.3. The test report.

    The parameters in the test report can be edited, the testing result is auto created.

 The testing report can be printed and also can be converted to be PDF format.

Package Compression Strength Test Machine for Compression Stacking Test 6

Support and Services:

Implementation Assistance,Installation,Training,Calibration,Preventive Maintencance,Technical Support,Upgrade,Repair & Parts.



Product Packaging:

The Package Test Machine will be securely packaged in a wooden crate to prevent any damage during transportation. The crate will be sealed and labeled with the product information for easy identification.
